Figure 8 Aerial Fiber Optic Cable
(Total 13 Products)
-

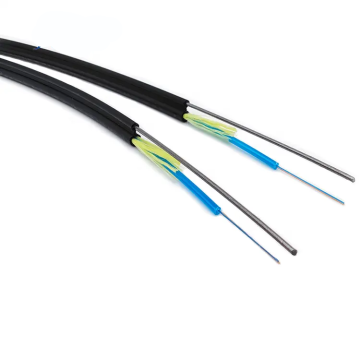

Brand:OEMMin. Order:1 KilometerModel No:GYXTC8YTransportation:Ocean,Land,Air,ExpressPackaging:wooden reel ,iron-wooden reelSupply Ability:1000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:1000 Kilometer/Kilometers persingle mode types optical fiber optic cable price list per meter Mini Figure 8 drop Fiber Optic Cable（GYXTC8Y） which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full... -
Brand:OEMMin. Order:1 KilometerModel No:GYXTC8STransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per MonthSteel armored ofc 24 core fiber optic cable structure price Description（Armored Fiber Optical Cable） In the GYTC8S/GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic... -
Brand:OEMMin. Order:1 KilometerModel No:GJYC8HTransportation:Ocean,Land,Air,ExpressPackaging:wooden drum ,iron-wooden drum with fumigated or notSupply Ability:10000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:10000 Kilometer/Kilometers perDescription for cable figure 8: GJYC8H aramid yarns figure 8 aerial optic fiber drop cable GJYC8H cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm fibers,twisting fibers with aramid yarn... -

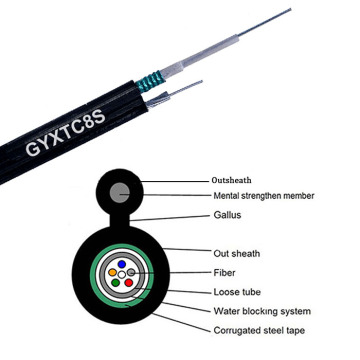

Brand:OEMMin. Order:1 KilometerModel No:GYXTC8STransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per MonthOutdoor Fiber Optic Cable description: GYXTC8S 2 6 core optical fibre internet fiber cable The fibers, 200/250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two... -

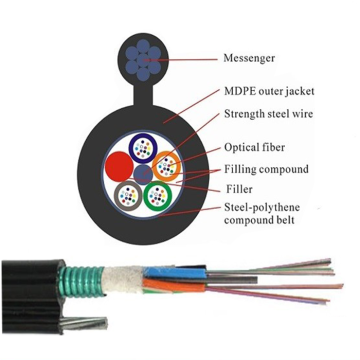

Brand:OEMMin. Order:1 KilometerModel No:GYTC8STransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per Monthself supporting aerial singlemode GYTC8S fiber optic cable In the GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular... -

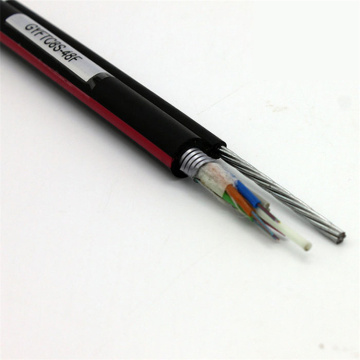

Brand:OEMMin. Order:1 KilometerModel No:GYFTC8S/GYFTC8ATransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per MonthGYFTC8A Aerial Self-supporting Armored Optical Fiber Cable Description: The GYFTC8A cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core... -

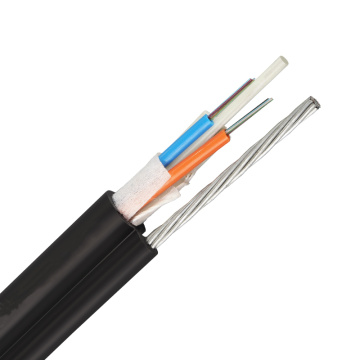

Brand:OEMMin. Order:1 KilometerModel No:GYXTC8YTransportation:Ocean,Land,Air,ExpressPackaging:wooden reel ,iron-wooden reelSupply Ability:1000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:1000 Kilometer/Kilometers perfig8 1 km fiber optic cable 4 6 core ofc cable price The structure of GYXTC8Y cable is to put 250µm optical fiber into loose tube made of high modulus material.Figure-8 self-supporting structure provide high tensile strength and enables easy... -
Brand:OEMMin. Order:1 KilometerModel No:GYXTC8STransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per MonthFigure 8 aerial self support fiber optic cable GYXTC8S Figure 8 fiber optic cable GYXTC8S, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is...
-
Brand:OEMMin. Order:1 KilometerModel No:GYTC8ATransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per Month12 24 core single mode figure 8 fiber drop optic cable In the GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular... -

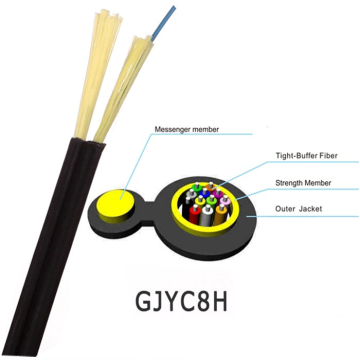

Brand:OEMMin. Order:1 KilometerModel No:GJYC8HTransportation:Ocean,Land,Air,ExpressPackaging:wooden drum ,iron-wooden drum with fumigated or notSupply Ability:10000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:10000 Kilometer/Kilometers perOutdoor Aerial figure 8 Tight Buffer FTTH Fiber Drop Cable The cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is...
-
Brand:OEMMin. Order:1 KilometerModel No:GYFTC8YTransportation:Ocean,Land,Air,ExpressPackaging:wooden drum ,iron-wooden drum with fumigated or notSupply Ability:10000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:10000 Kilometer/Kilometers perGYFC8Y 2-144 Cores Figure 8 Single Mode Fiber Cable The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape.... -
Brand:OEMMin. Order:1 KilometerModel No:GYTC8A/GYTC8STransportation:Ocean,Land,Air,ExpressPackaging:wooden spoolSupply Ability:15000 Kilometer per MonthPlace of Origin:ChinaProductivity:15000 Kilometer per MonthProduct description/ PRODUCT GYXTC8S 24core single mode fiber optical cable types The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire...
-
Brand:OEMMin. Order:1 KilometerModel No:GYXTC8YTransportation:Ocean,Land,Air,ExpressPackaging:wooden reel ,iron-wooden reelSupply Ability:1000 Kilometer/Kilometers per MonthPlace of Origin:ChinaProductivity:1000 Kilometer/Kilometers perSingle Mode Overhead Fig8 Self Supporting Aerial Cable Mini Figure 8 drop Fiber Optic Cable（GYXTC8Y） which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full filling with...
Figure 8 Aerial Fiber Optic Cable
The Figure 8 Aerial Fiber Optic Cable is a specialized type of cable designed for outdoor installations and overhead runs. It is called "Figure 8" due to its distinctive appearance where the cable resembles the numeral 8 when coiled. This design is not just aesthetic; it plays a crucial role in the cable's functionality.
Production Process
