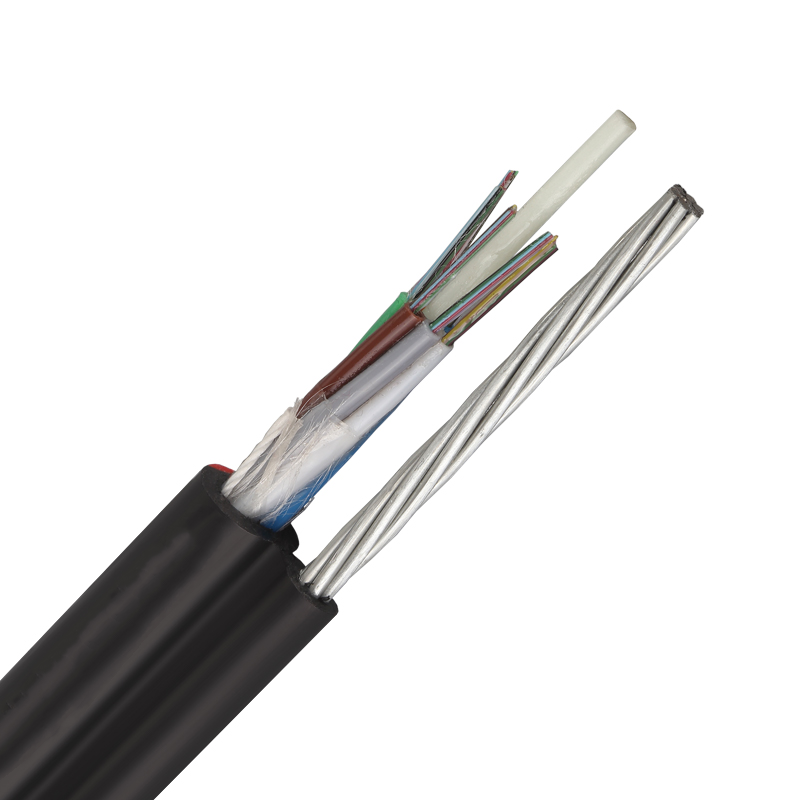

2-144 Cores Figure 8 Aerial Drop Fiber Cable

2-144 Cores Figure 8 Aerial Drop Fiber Cable

Payment Type:	L/C,T/T,Paypal,others
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYFTC8Y

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Installation Tensile: 7000N

Application: Aerial

Fiber Count: 2-288 cores

Strength Member: FRP

Material Of Jacket: Black Polyethylene (PE)

Fiber Options: ITU G652D ,G657A,OM1,OM2,OM3,OM4

Bend Radius (Under Installation): 20 x External Diameter of cable

Certification: ISO9001/CE/RoHS

Non-armored: YES

OEM: YES

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden drum ,iron-wooden drum with fumigated or not
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

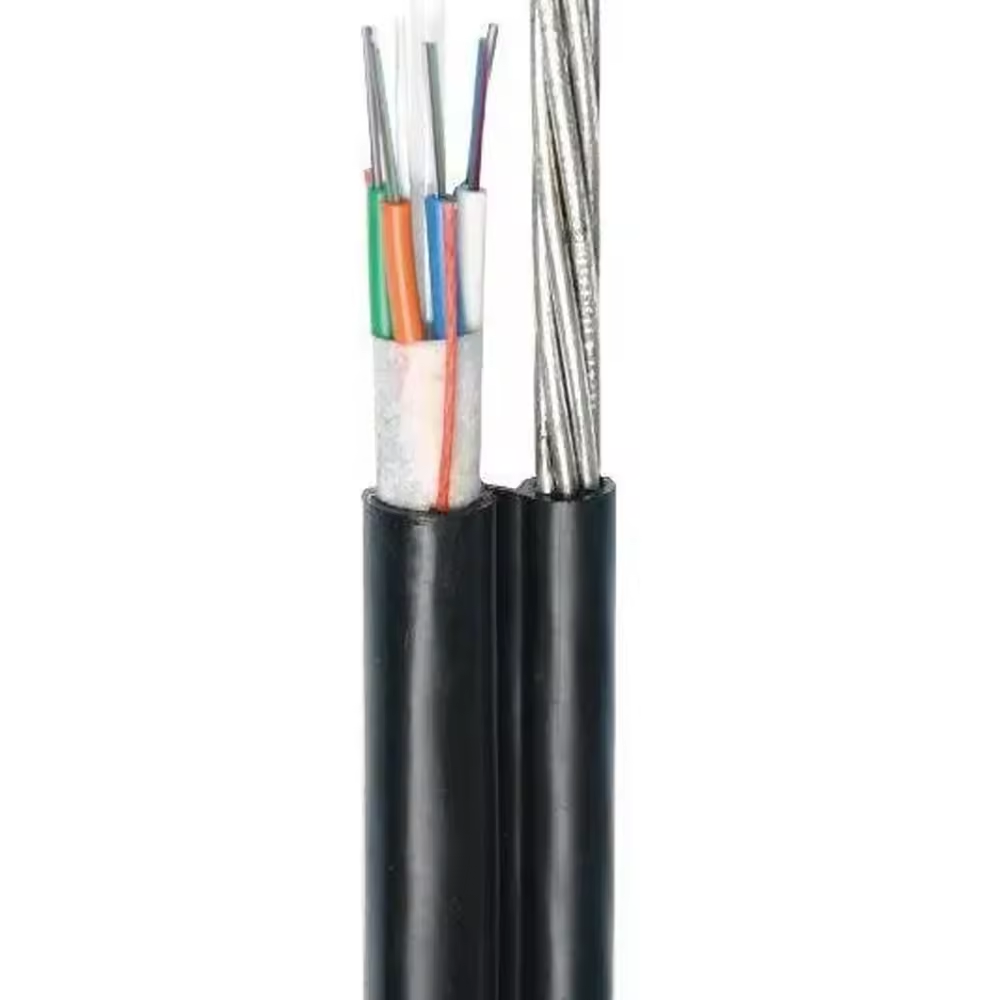

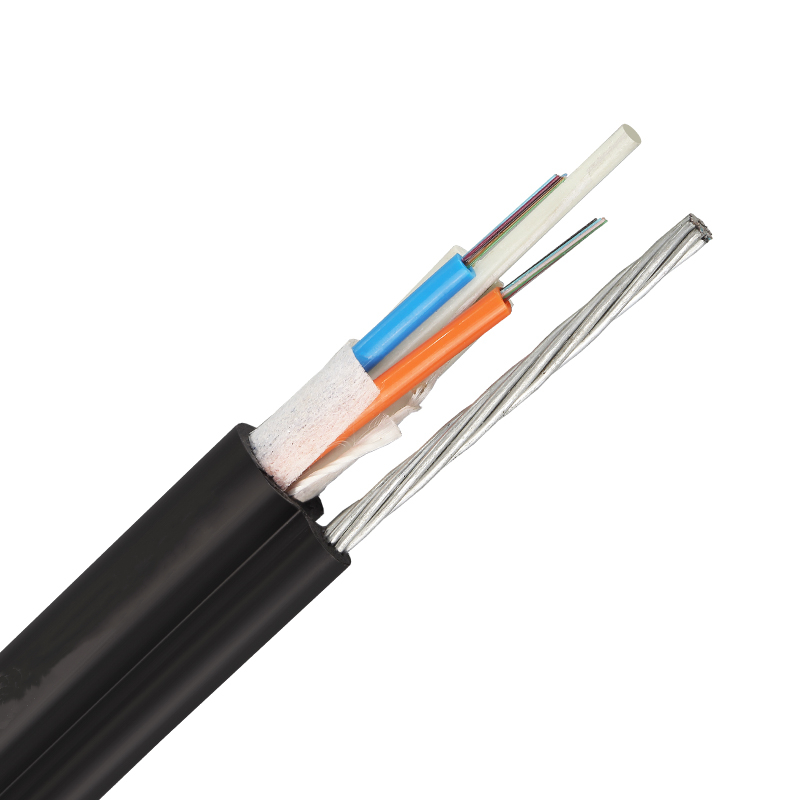

GYFC8Y 2-144 Cores Figure 8 single mode fiber Cable

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Product Name:aerial drop cable,fo cable types,fibre communication,4f ofc cable price，optical cable price per meter，fiber internet cable price，Aerial Fiber Optic Cable price,fiber cable 1 meter price,aerial fiber optic

Cable Cross Section:

Techniacal Parameters:

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cables form ultraviolet radiation
The following measure are taken to ensure the cable watertight
Steel wire used as the central strength member
Loose tube filling compound
100% Cable core filling

Technical Parameters:
Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
2	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
4	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
6	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
8	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
10	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
12	8.3	78.00	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A,B,C,D)

B1.1:Conventional fiber

G.653

B2: Zero dispersion shifted

G.654

B1.2 :Cut-off wavelength shifted

G.655

B4: Main technical data for positive
dispersion shifted single-mode fiber

Application:

This specification covers the general requirements of Central Loose Tube Outdoor Cable for aerial or duct.
Long-distance communication,LAN
Moisture-proof and rodent-proof
Duct, Aerial

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
