Model No.: ASU
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
No. Of Fiber: 2~24 cores
Outer Sheath: HDPE
Keyword: MINI ADSS CABL
Strength Member: FRP
Span: 50~100M
Certification: CE/ROHS/ISO9001/ANATEL
Product Name: ASU fiber optic cable
Cable Diameter: 6.6-7MM
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
cable fibra optica network 4 core fiber cable price

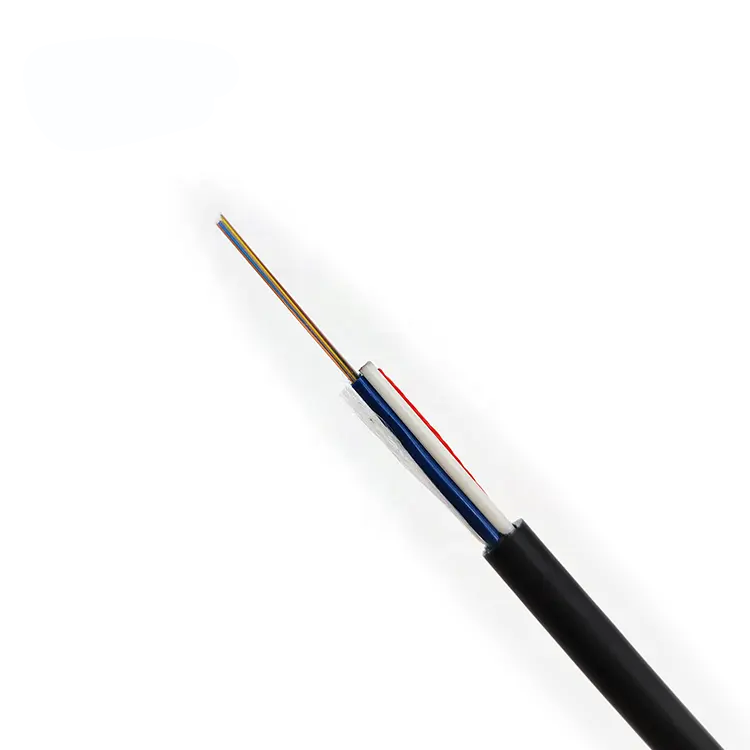

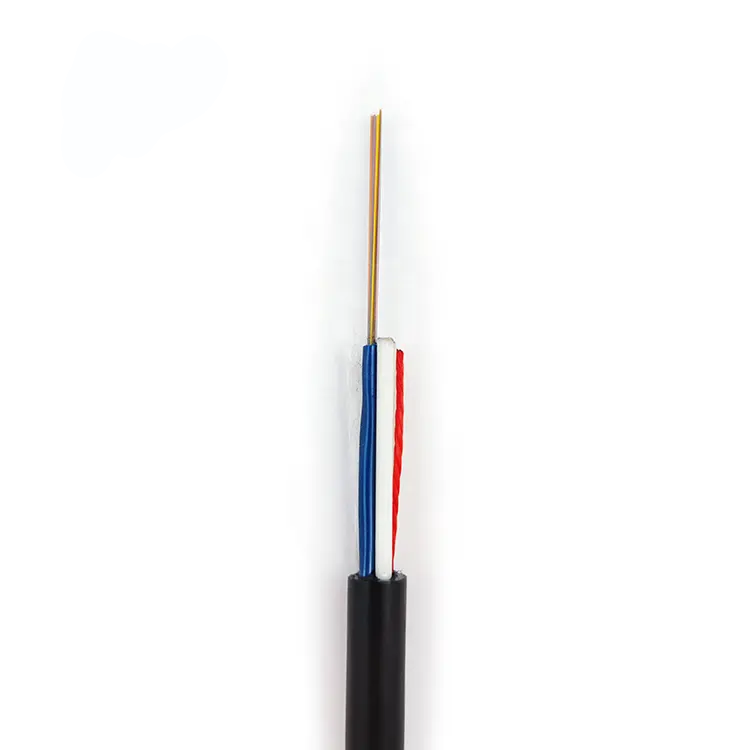

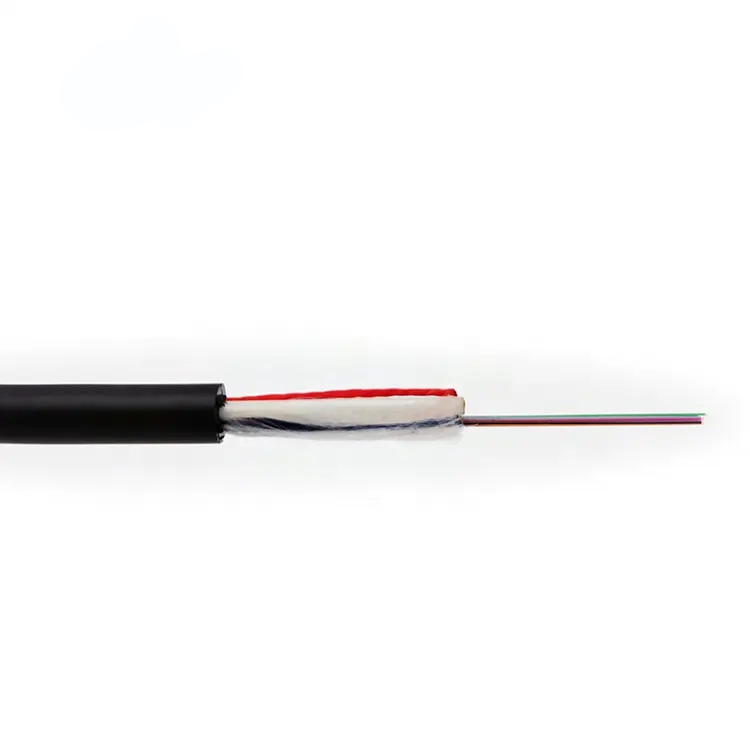

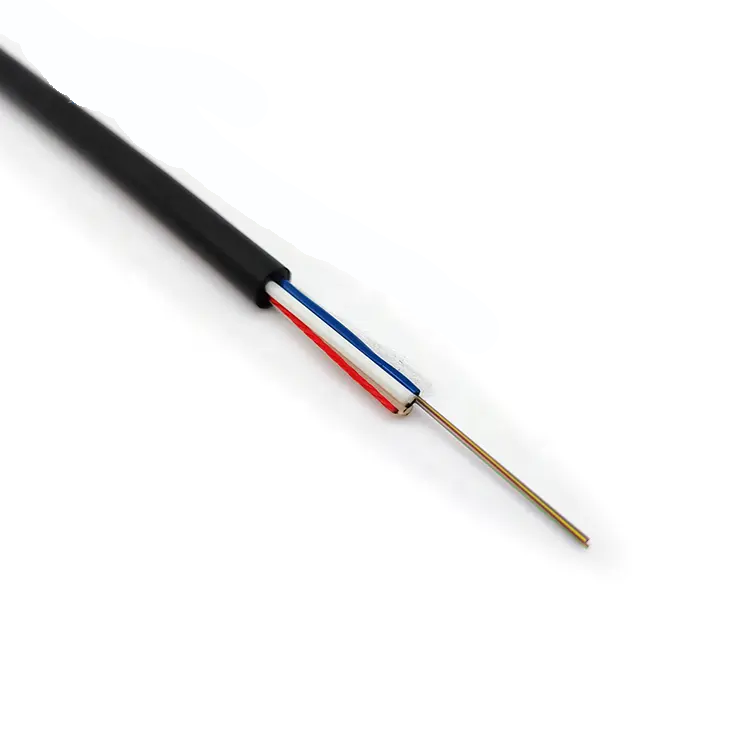

G.652D Aerial Self-Supported ASU fiber optic cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication
ASU Cable&Mini ADSS cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Product Name:optical fibre wire price,4 core fiber cable price,om3 fibre optic cable,network cable,4 core armoured fiber optic cable price,6f fiber optic cable price,fiber internet cable price,4f ofc cable price,optical ethernet cable,6 core fiber optic cable price,cable fibra optica

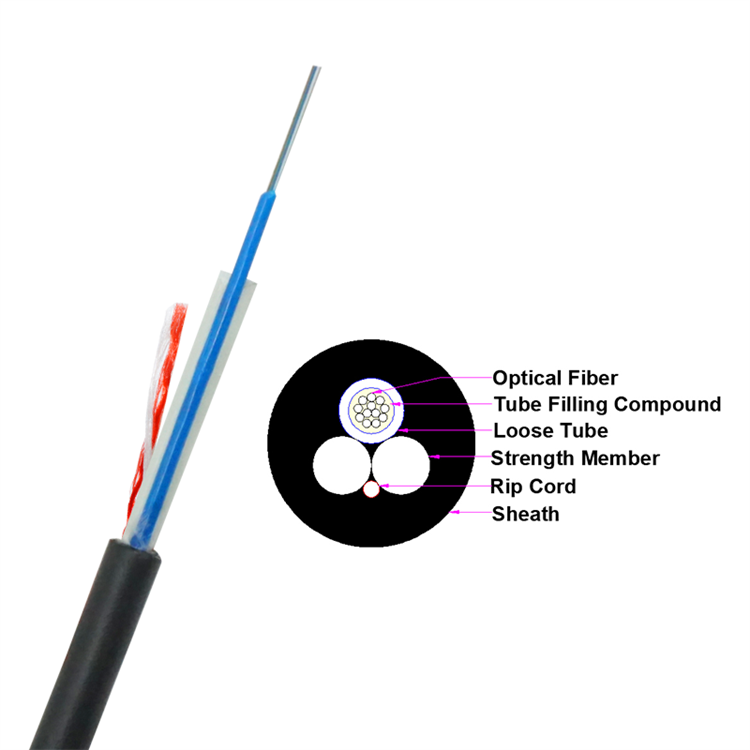

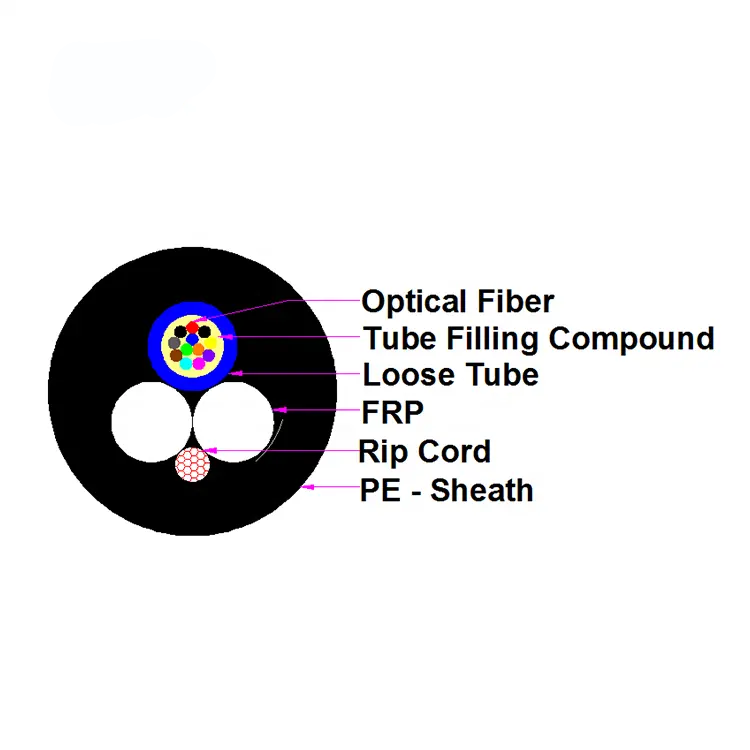

Cable Cross Section:
3. The properties of single mode fiber（ITU-TG .652D）
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Atenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km |
|
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth | @850 |
|
| ≥200MHZ·km | ≥200MHZ·km |
| @1300 |
|
| ≥500MHZ·km | ≥500MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable cut-off wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes |
| 1 | 1 | 1 | 1 | 1 | 1 |
| No. Of fibers | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80，1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
Sheath Marking & Packing
The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.
Re-markingis yellow color, if necessary.
GT *** xxFIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
xxFIBRE: Fiber count
Month/Year:Manufacture date
XXXXM: The figure ofmeter.
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU
