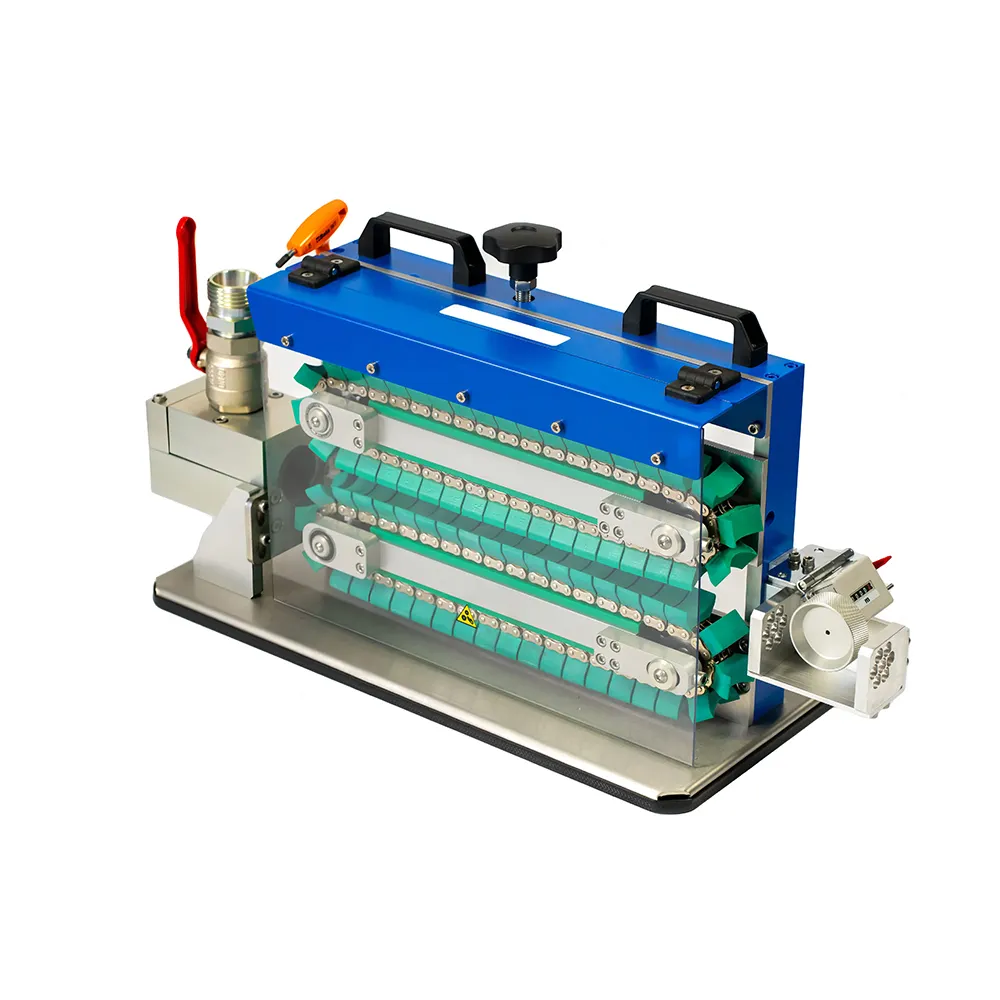

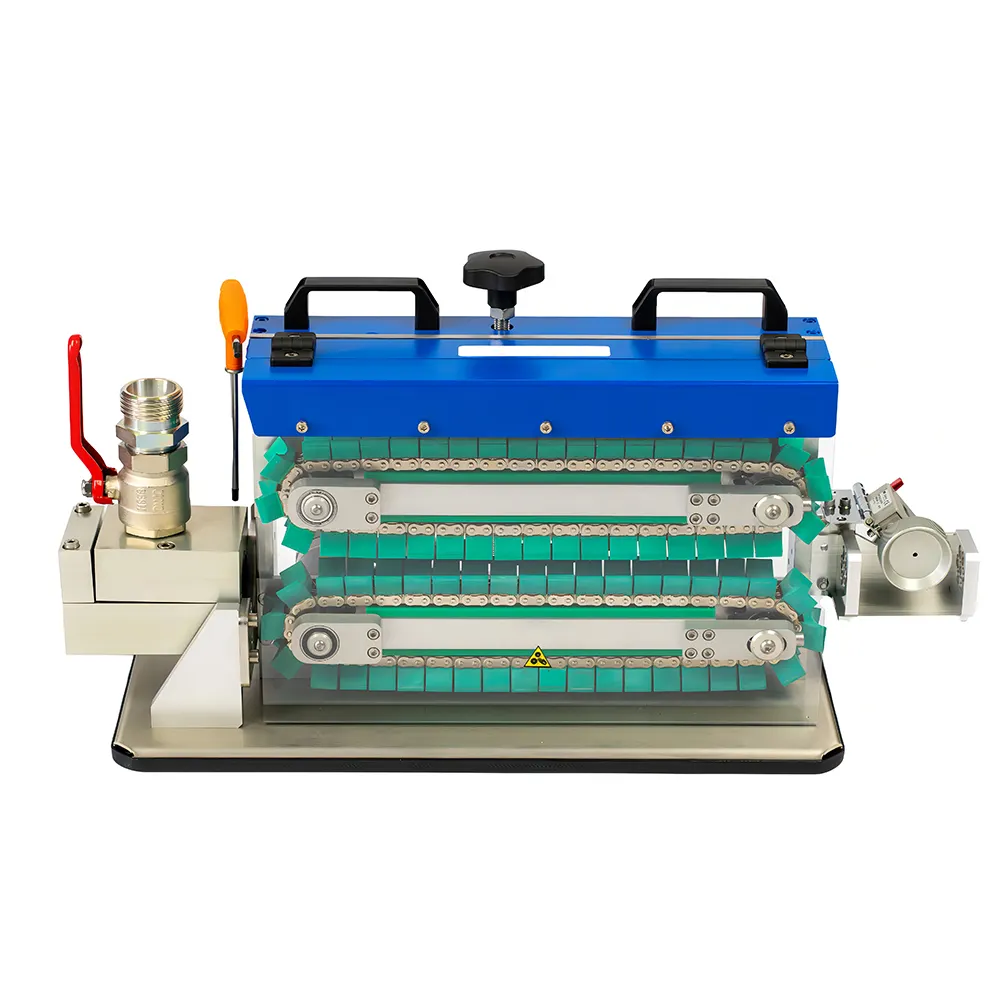

Model No.: GTOC-FBM08
Brand: OEM
Use: FTTH
Warranty Time: 24months
Microduct Diameter: 7-10-12 mm (max. number of the microducts: 7)
Tube Diameter: 32mm, 40mm, 50mm
Blowing Range(Max): 1500m
Blowing Speed(Max): 80m per min
Operating Pressure(Max): 10bar
Machines Dimensions (L * W * H): 850 * 400 * 300mm
Weight Approx: 42KG
Dimensions Of The Transport Box: 920 * 530 * 440mm
| Selling Units: | Set/Sets |
| Package Type: | Individual package |
The file is encrypted. Please fill in the following information to continue accessing it
| Construction | Description |
| Technical Data | GTOC-FBM08 |
| Microduct Diameter: | 7-10-12 mm (max. number of the microducts: 7) |
| Tube Diameter | 32mm, 40mm, 50mm |
| Blowing Range / Max | 1500 m |
| Blowing Speed / Max | 80 m/min |
| Operating Pressure / Max | 10bar |
| Machines Dimensions /L x W x H/ | 850 x 400 x 300mm /weight approx. 42kg |
| Dimensions Of The Transport Box | 920 x 530 x 440mm /weight approx.. 55kg |
| Available Accessories Inside The Set | Set of handles for HDPE ducts Set of seals for HDPE ducts Set of cable seals Set of Allen keys Socket wrench Air hose Power unit (aggregate) |
| Required Compressor’s Efficiency | ducts: 32-40- 50mm 8 – 10 m3/min |

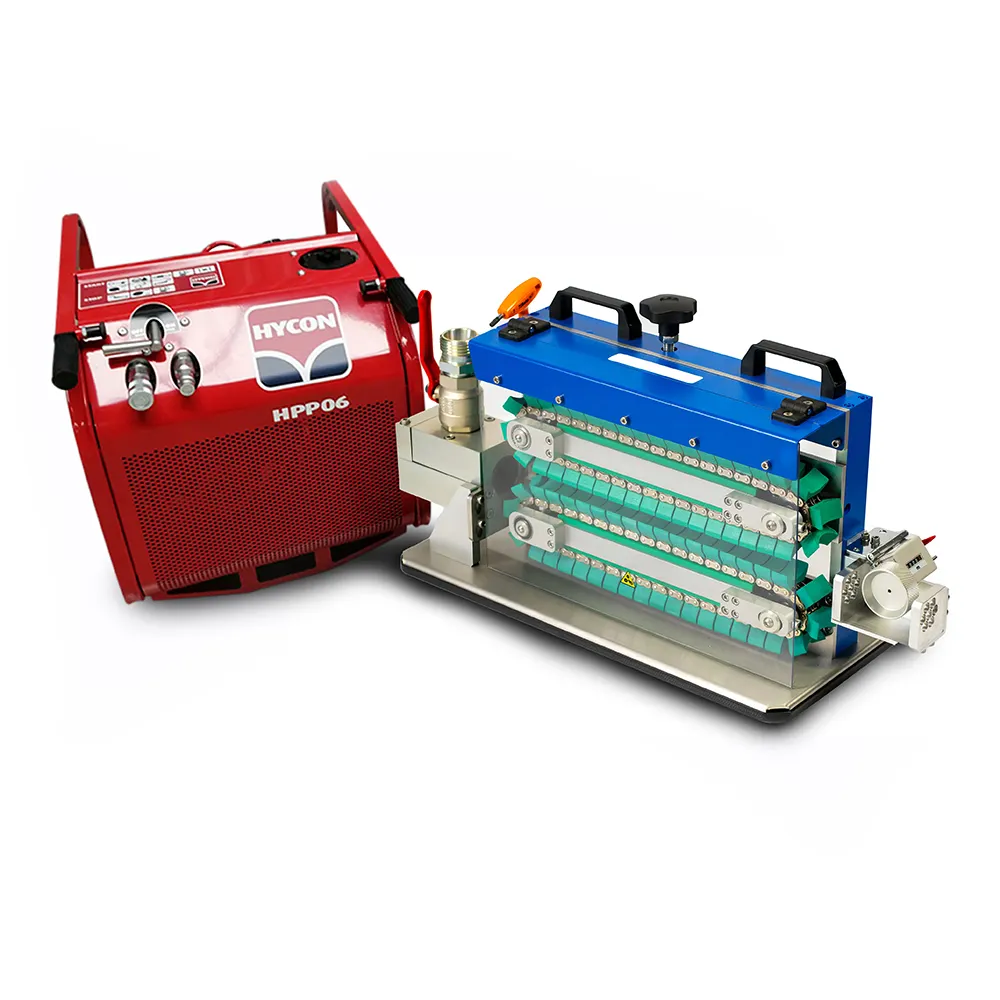

| Power Unit (aggregate) | dimensions: 630 x 530 x 510 mm weight: 54kg max hydraulic pressure: 110 bar |
Packaging: Individual package
Productivity: 500 sets per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 500 sets per week
Certificate: ISO
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
