Model No.: GYTS
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Used for long haul communication
Fiber Type: G652D/G657A1/G657A2,OM3,OM4
No. Of Fiber: 2-288
Outer Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden
Loose Tube Material: PBT
Keyword: fiber optic cable
Laying Method: Duct,Aerial
Certification: CE/ROHS/ISO9001 /ANATEL
Strength Member: Steel Tape or Aluminium Tape
Installation Tensile: 1500N
Selling Units: | Kilometer |
Package Type: | wooden spool |

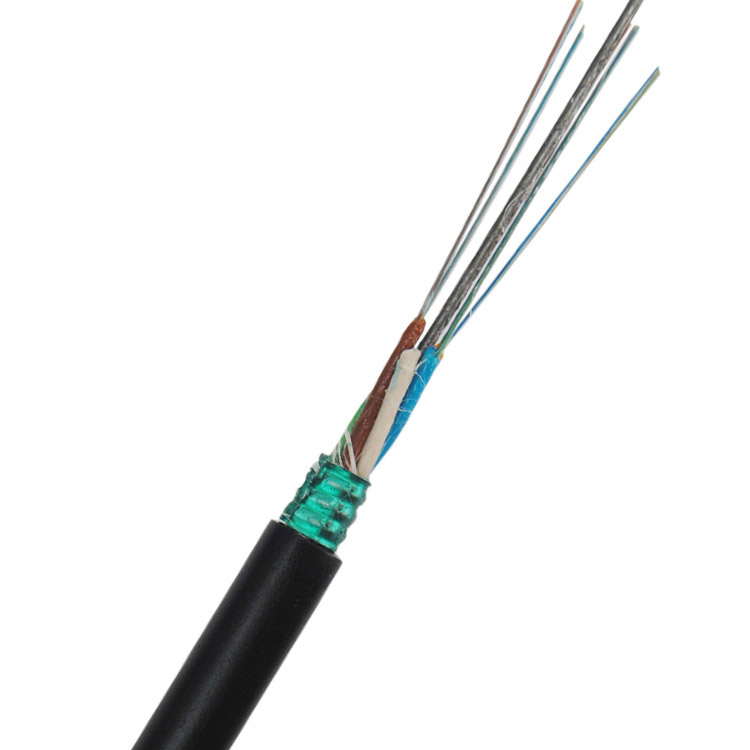

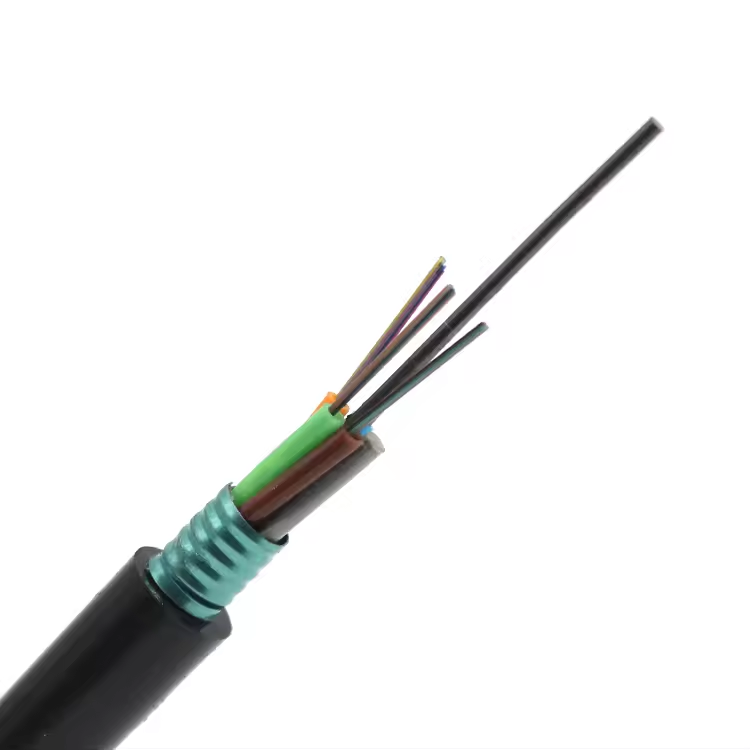

Picture Example: |
The file is encrypted. Please fill in the following information to continue accessing it
Outside different type of fiber optic cable product
1.1 General Design(metallic Strength Member Armored Cable)
OpticalFiber is constructed of a germanium doped silica based core with a pure silicacladding which meets ITU-T G.652 standard. Two layers of UV curable acrylateprotective coating are applied over the cladding to provide maximum fiberlifetime.optical fiber in networking
Product Name:different type of fiber optic cable,fiber optic product,fiber optic cable outside,fiber cable 6 core price,fiber optic cable wire,cost of ofc cable per meter,2 core optical fiber cable price,armoured fibre cable,fiber 4 core cable price,1000m fiber optic cable price,12f fiber optic cable,corning fiber optic cable,optical fiber price per meter,fibre optic cable underground,288 fiber cable

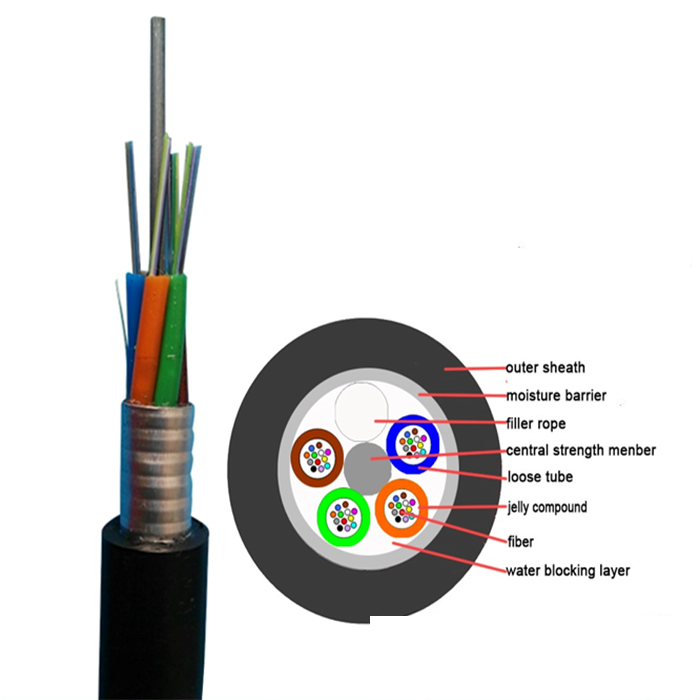

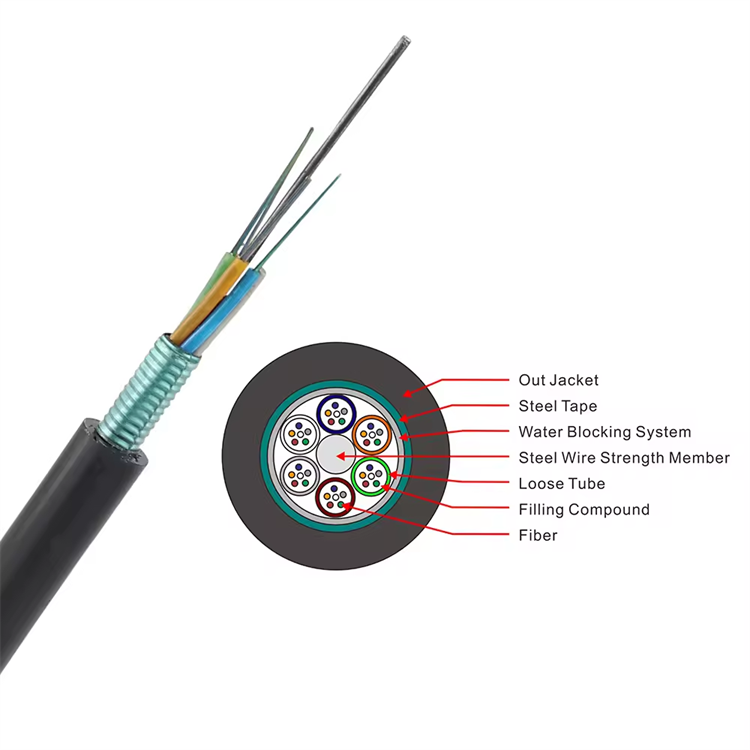

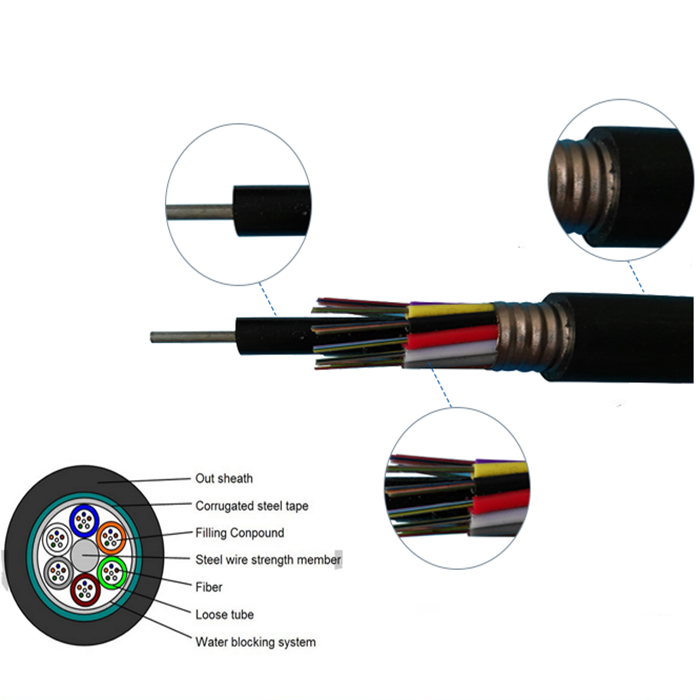

Outdoor Fiber Optic Cable cross section:
1.2 G.652.D fiber
1) Construction | |
Mode Field Diameter @ 1310 nm | 9.2 +/-0.4 µm |
Core-Cladding concentricity error | ≤0.4 µm |
Cladding diameter | 125 +/-1 µm |
Cladding non-circularity | ≤1 % |
Primary coating material | UV curable acrylate |
Primary coating Diameter | 250 +/-15 µm(Colored) |
2) Optical Characteristics | |
Attenuation @ 1310nm | ≤0.36 dB/km |
Attenuation @ 1383nm | ≤0.35 dB/km |
Attenuation @ 1550nm | ≤0.22 dB/km |
Dispersion @ 1288~1339nm | ≤3.5 ps/(nm.km) |
Dispersion @ 1271~1360nm | ≤5.3 ps/(nm.km) |
Dispersion @ 1550nm | ≤18.0 ps/(nm.km) |
Zero dispersion wavelength | 1300 – 1324 nm |
Zero dispersion slope | ≤ 0.092 ps/nm2×km |
Cabled cut-off wavelength (lcc) | ≤1260 nm |
Polarization Mode Dispersion | ≤0.2 ps/√km |
3) Mechanical Characteristics | |
Proof stress level | 1.2 % (0.86 GPa) |
Fiber curl (Fiber radius of curvature) | ≥4 m |
Macro bending induced attenuation | 100 turns 30 mm radius ≤ 0.1 dB at 1550nm |
4) Refractive index | 1.466 @ 1310nm,1.467 @ 1550nm |
2. Fiber Optic Cable

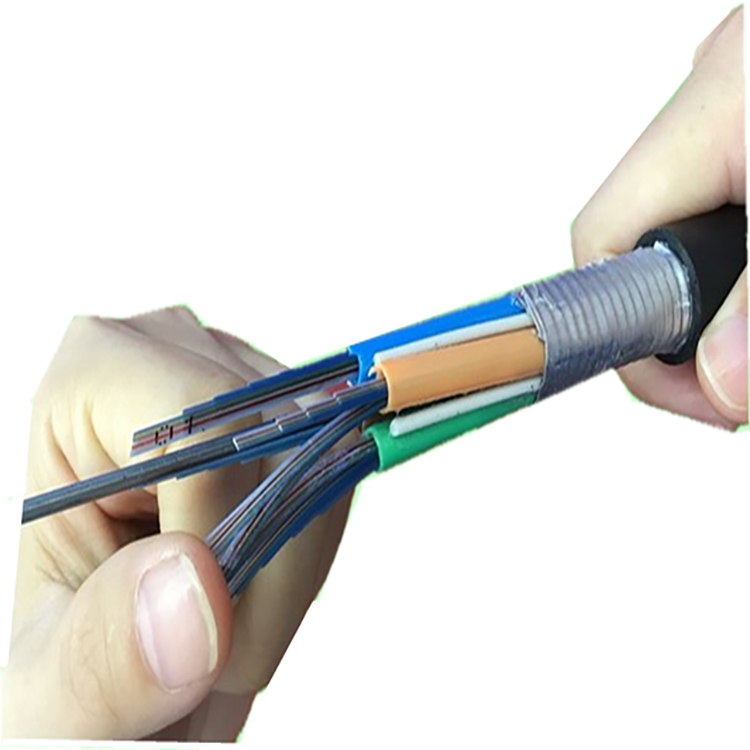

2.1 General Design
The colorcoded fibers are housed in multiple color coded plastic loose tubes which arestranded around a central strength member utilizing Reverse Oscillating Lay(ROL).
Waterblocking yarn and water-blocking tape, filling the interstices within the core,provides protection against water ingress.MDPE sheath with 2 rip cords iscovered over the cable core.
2.2 Construction of optical fiber types
Item | Specification |
Central strength member | FRP OD: 2.0mm(8,12,16,24,36 fibers) 2.3mm(48,72 fibers) 2.5mm(96 fiber) 3.0mm(144 fiber) |
Loose tube | PBT OD: Nom.2.0mm(8,12,16,24,36 fibers) OD:Nom.2.2mm(48,72,96,144 fibers) Thickness:0.3mm |
Filler | Plastic OD: 1.95mm(8,12,16,24,36 fibers) 2.15mm(48,72,96,144 fibers) |
Rip-cord | 3 strands per pcs(Symmetrial distribution in the sheath) |
Water-blocking tape | 20mm*0.25mm(8,12,16,24,36 fibers) 22mm*0.25mm(48,72 fibers) 28mm*0.25mm(96 fiber) 36mm*0.25mm(144 fiber) |
Outer sheath | MDPE Thickness:2.0mm |
2.3 Loose Tube Stranding for fiber optic cable type
Fiber count | Max.fiber number per tube | Number of tube / Filler |
8/12 | 6 | 2 / 4 |
16 | 6 | 3 / 3 |
24 | 6 | 4 / 2 |
36 | 6 | 6 / 0 |
48 | 12 | 4 / 2 |
72 | 12 | 6 / 0 |
96 | 12 | 8 / 0 |
144 | 12 | 12 / 0 |
2.4 Cable Diameter and Weight
Fiber count | Nom. diameter (mm) | Nom. weight (kg/km) |
8/12/16/24/36 | 10.5 | 82 |
48/72 | 11.2 | 94 |
96 | 12.6 | 119 |
144 | 15.4 | 179 |
2.5 Sheath Marking & Packing
The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.
Re-markingis yellow color, if necessary.
GT *** xxFIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
xxFIBRE: Fiber count
Month/Year:Manufacture date
XXXXM: The figure ofmeter.
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery
