Model No.: GJBFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Cores: 2~288 cores
Strength Member: aramid yarns
Tight Buffer Fibers: Yes
Subunit Sheath: PVC,LSZH
Central Member: Plastic Coated FRP
Water Blocking Tape: Yes
Outer Sheath: PVC,LSZH
Fiber Type: G652D,G657,G655,OM1,OM2,OM3,OM4
Certification: ISO,SGS
OEM: Yes
| Selling Units: | Kilometer |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
GJBFJV break out cable fiberopticcable indoor cables

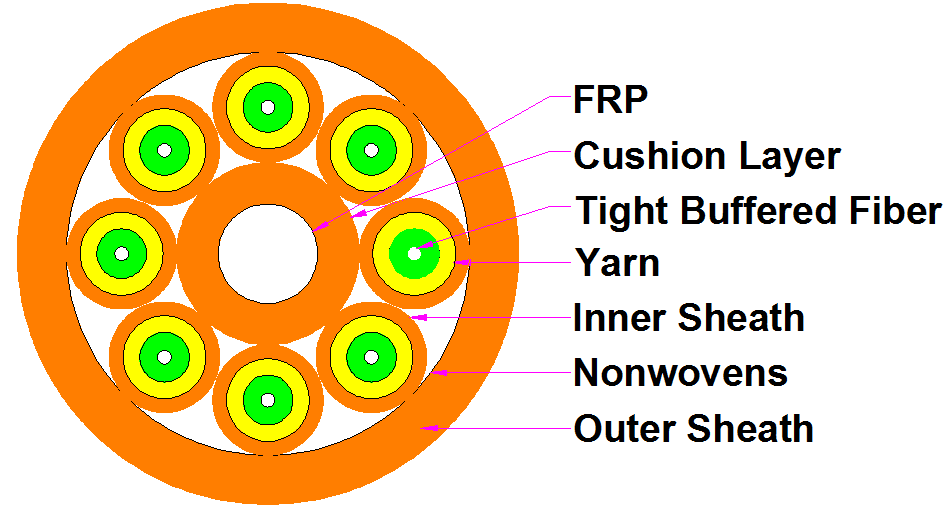

GJBFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

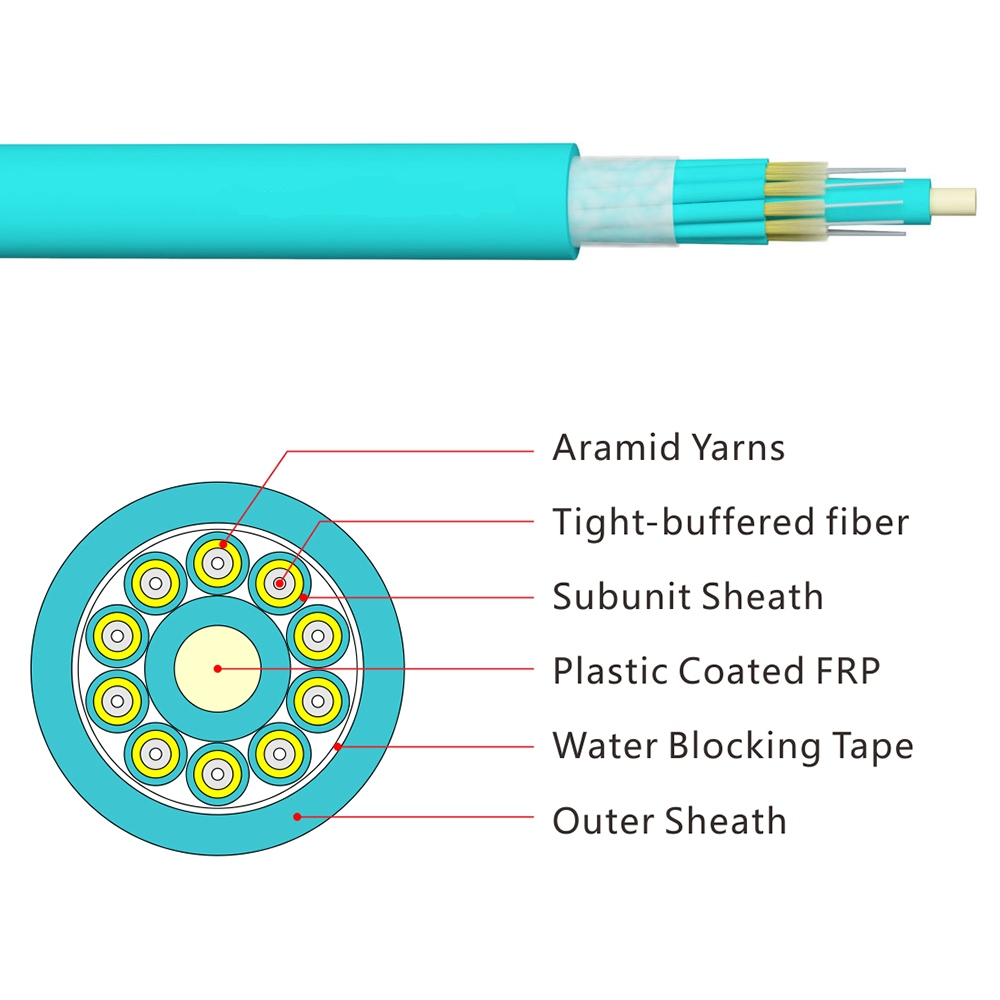

MPC Multi-Purpose Distribution cable use multi-fiber subunits (Φ900µm tight buffer fiber, aramid yarn as strength member).A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Product Name:indoor cables,fiberopticcable,breakout cable,breakout fiber optic cable,om4 multimode,breakout cable,internet fiber optic cable price per meter,sm fiber optic cable,1 km fiber optic cable price,breakout fiber cable,breakout fiber,fiber breakout cable,breakout cable
1.2 Characteristics
A. Stranded non-metallicstrength member structure ensure the cable endure larger tensile strength.
B. The outer jacketmaterial have many advantages such as anti-corrosion, anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
C. Aramid yarn as strengthmember make cable have excellent tensile strength
1.3 Cable Properties
Transporttemperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
2. Optical Characteristics& Technical Parameters
2.1 Technical Parameters| Cable Code | Cable Diameter mm | Cable Weight(Ref) kg/km | Tensile strength Long/Short term mm | Crush Resistance Long/short term N/100mm | Bending Radius Dynamic/ Static mm | |
| PVC jacket | LSZH jacket | |||||
| GJBFJV(H)-4F | 7.4±0.5 | 50.0 | 56.0 | 130/440 | 300/1000 | 20D/10D |
| GJBFJV(H)-6F | 8.4±0.5 | 66.0 | 74.0 | 200/660 | 300/1000 | 20D/10D |
| GJBFJV(H)-8F | 9.8±0.5 | 91.0 | 101.0 | 200/660 | 300/1000 | 20D/10D |
| GJBFJV(H)-12F | 12.4±0.5 | 140.0 | 155.0 | 200/660 | 300/1000 | 20D/10D |
| GJBFJV(H)-18F | 12.4±0.5 | 140.0 | 155.0 | 400/1320 | 300/1000 | 20D/10D |
| GJBFJV(H)-24F | 14.4±0.5 | 181.0 | 201.0 | 400/1320 | 300/1000 | 20D/10D |
| GJBFJV(H)-36F | 16.4±0.5 | 208.0 | 255.0 | 400/1320 | 300/1000 | 20D/10D |
| GJBFJV(H)-48F | 19±0.5 | 280.0 | 344.0 | 400/1320 | 300/1000 | 20D/10D |
| Fiber Type | Attenuation | OFL | Valid mode band width | 10G Ethernet link length SX | Min. bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Typical | Max. | Typical | Max. | | | | | |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | | | | | | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | | | | | | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
| OM1 | | | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 |
| OM2 | | | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 |
| OM3 | | | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | | | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 |
3. Packing and shipping
3.1 The cables are packed in wooden drums andthen in carton box
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
GT *** xxFIBRE Month/Year XXXXM
l GT: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
Productivity: 1500 kilometer per month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Certificate: ISO,SGS
HS Code: 8544700000
Port: Shenzhen,Guangzhou,Shanghai
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
