HDPE 4ways 14/10 mm Microduct Pipe Price

HDPE 4ways 14/10 mm Microduct Pipe Price

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	1000 Meter
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: 4ways 14/10mm

Brand: OEM

Diameter: 16/12 14/10 12/8 10/6mm

Length: customization

Ovality (%, Before Coiled): 5%

Product Name: microduct

Material: HDPE

Processing Service: Extrusion

Color Options: White, red, green, blue Fully colored

Usage: underground installation

Thickness Of Sub-duct: 2.0mm

Thickness Of Sheath: 1.2mm or customized

Packaging & Delivery

Selling Units:	Meter
Package Type:	Standard Export Package, Drum length is 2000m or customized
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Square Type HDPE 4ways 14/10 mm Microduct Pipe Price

Description for HDPE micro duct pipe:

Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation.Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows individual tubes to be used direct bury solution.The microducts themselves are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low friction inner surface for best blowing performance.

Product Name:hdpe pipe price,4ways microduct Pipe,HDPE Microduct Price

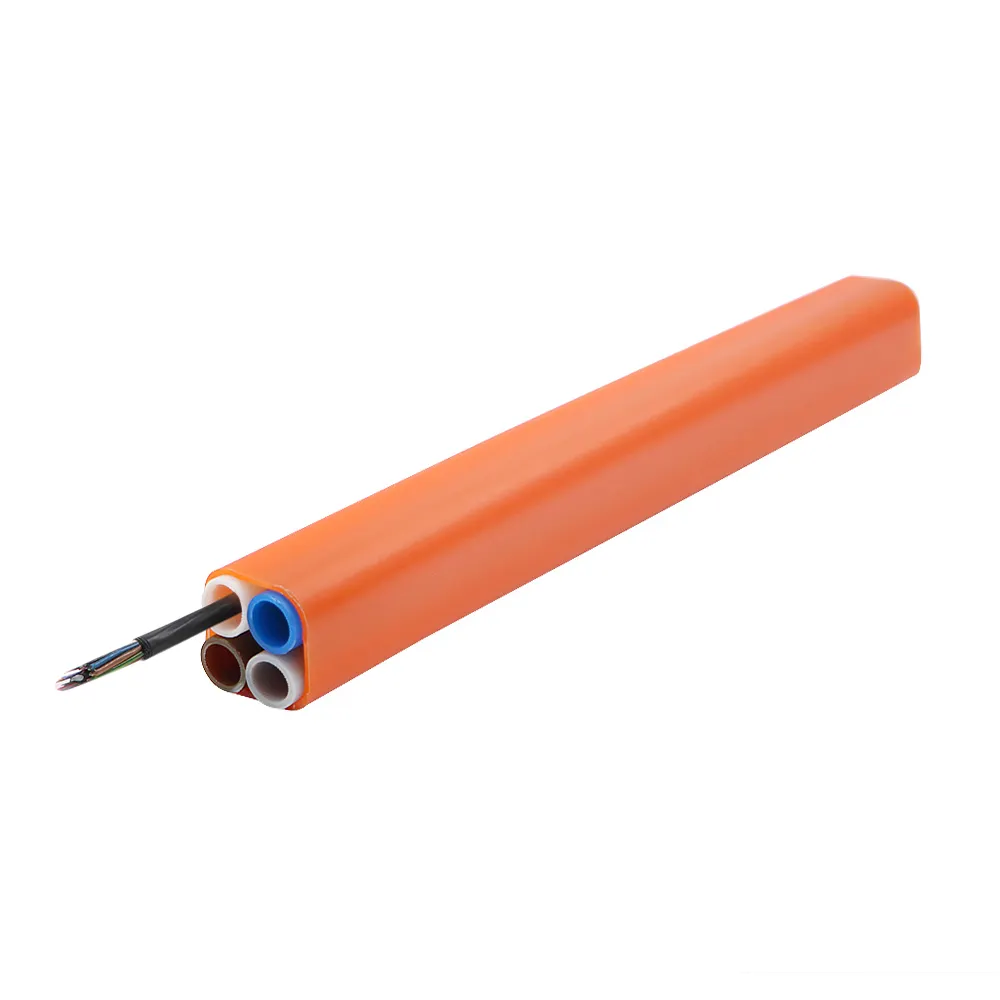

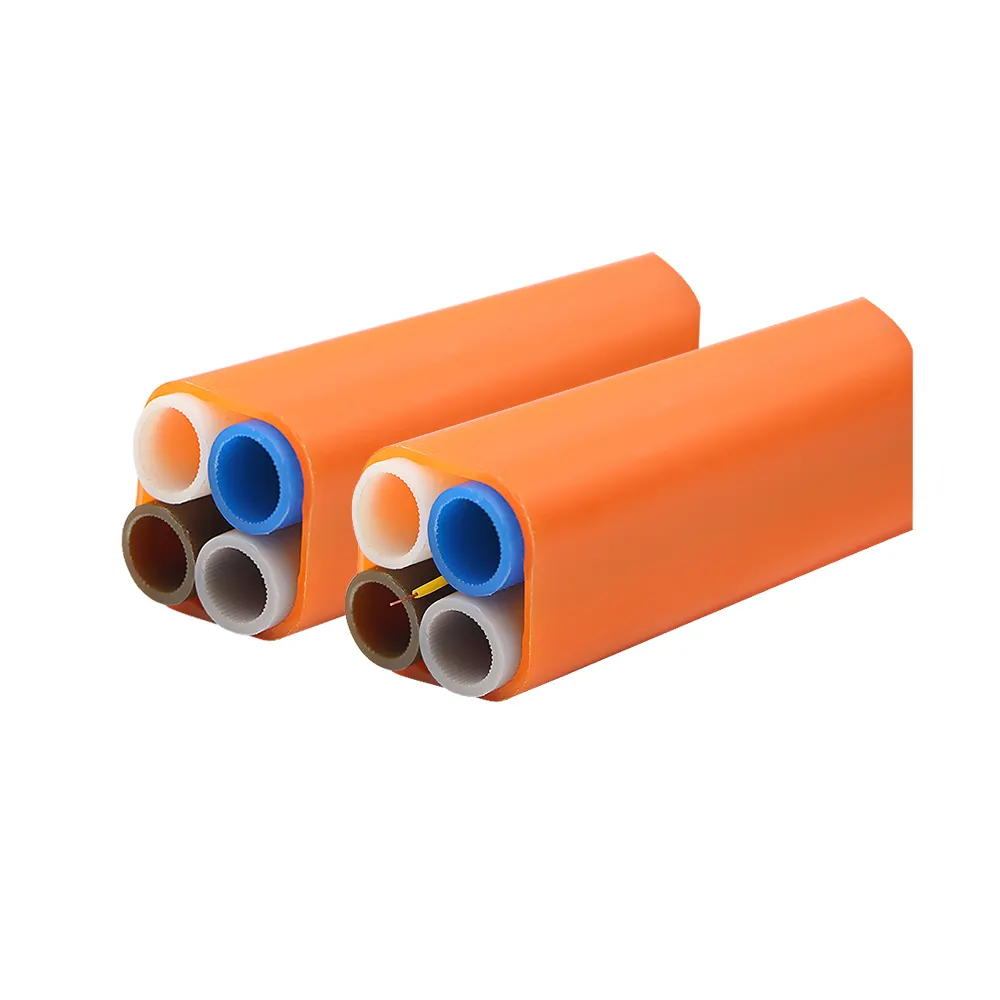

Product Views for microduct pipe HDPE

Physical and Mechanical Properties – Inner Micro duct 14/10mm
1	Visual appearance	Visual inspection	Ribbed inside & smooth outside surface, free from blisters, shrink hole, flaking, scratches & roughness.
2	Outer diameter	GTOC	14.0mm ± 0.1mm
3	Wall thickness	GTOC	2.00mm ± 0.10mm
4	Inner diameter clearance	Blowing steel ball	A 8.5mm steel ball can be blown freely through the duct.
5	Ovality	GTOC	≤ 5%
6	Pressurization	5 minutes @25bar each duct	No damage and leakage
7	Kink	IEC 60794-1-2 Method E10	≤ 140mm
8	Tensile strength	Rate of extension: 100mm/min	≥ 1350N
9	Crush	Sample length: 250mm Load: 1400N Duration of Max. load: 1 min Recovery time: 1 hour	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
10	Impact	IEC 60794-1-2 Method E4 1.5J Impact, recovery time 1 hour	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
11	Heat reversion	110℃ ～ 23℃, 1 hour	≤ 3%
12	Min. bend radius	168mm	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
13	Co-efficient of Friction	750mm Diameter, 450°loop, 5kg mass	≤ 0.1
14	Color and printing	Visual inspection	As per customer specification

Test	Characteristic	Test Method	Acceptance Criteria
Physical and Mechanical Properties – tube bundles
1	Visual appearance	Visual inspection, Outer sheath: Black	Ribbed inside & smooth outside surface, free from blisters, shrink hole, flaking, scratches & roughness.
2	Outer diameter	GTOC	30.4mm*30.4mm (± 0.5mm)
3	Sheath Wall thickness	GTOC	1.20mm ± 0.20mm
4	Pressurization	5 minutes @25bar each duct	No damage and leakage
5	Tensile strength	Rate of extension: 100mm/min	≥ 4000N
6	Crush	Sample length: 250mm Load: 2000N Duration of Max. load: 1 min Recovery time: 1 hour	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
7	Impact	IEC 60794-1-2 Method E4 5.0J Impact, recovery time 1 hour	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
8	Min. bend radius	600mm	No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test.
9	Color and printing	Visual inspection	Orange or as per customer specification

Production Process for 4ways microduct Pipe:

Completed packages of the HDPE micro duct on drum can be stored outdoor max. 6 months upon the date of production. Storage temperature: -40°C ～ +70°C Installation temperature: -30°C ～ +50°C Operating temperature: -40°C ～ +70°C

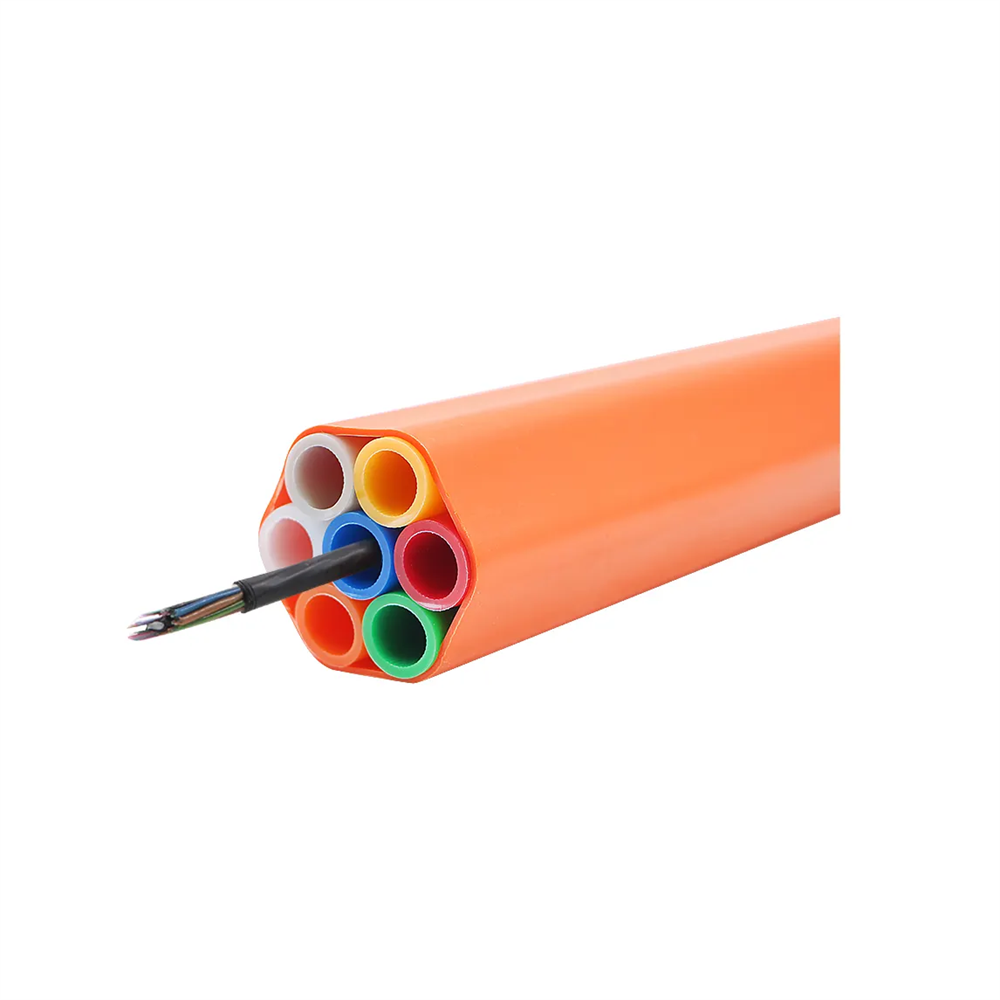

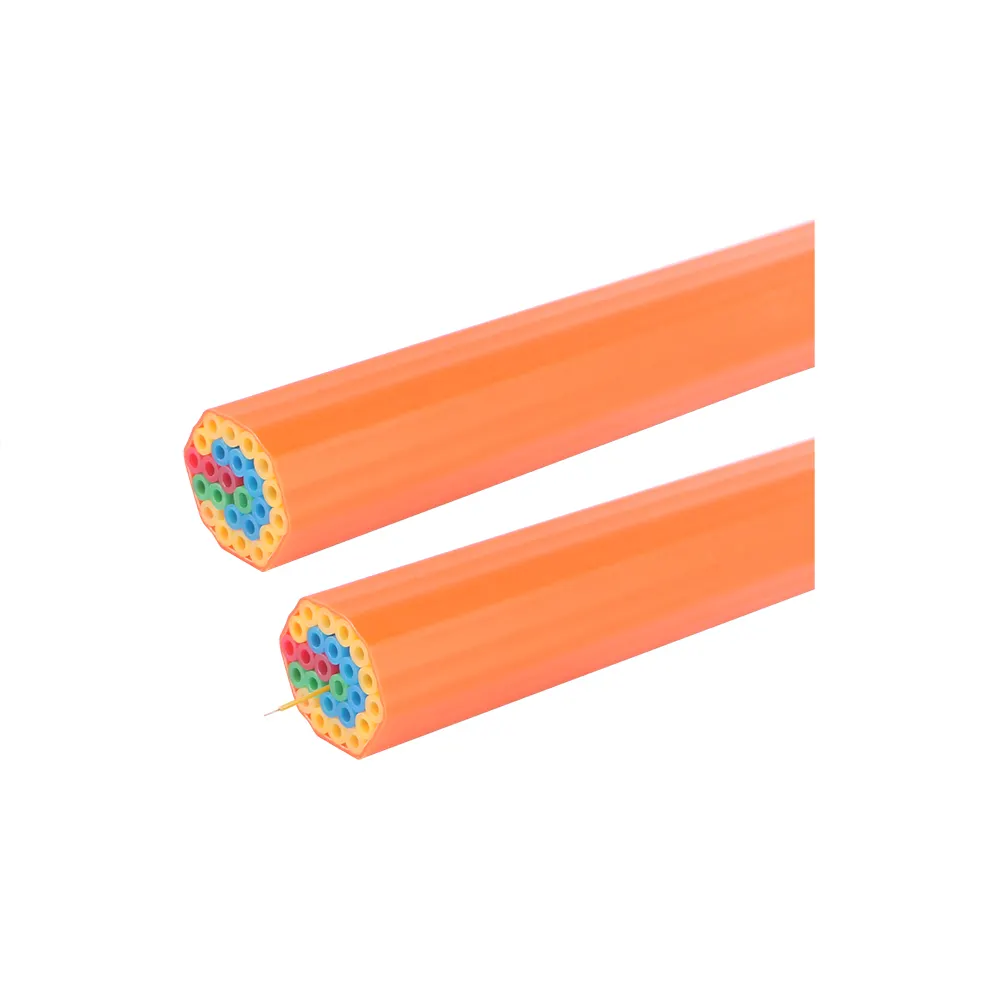

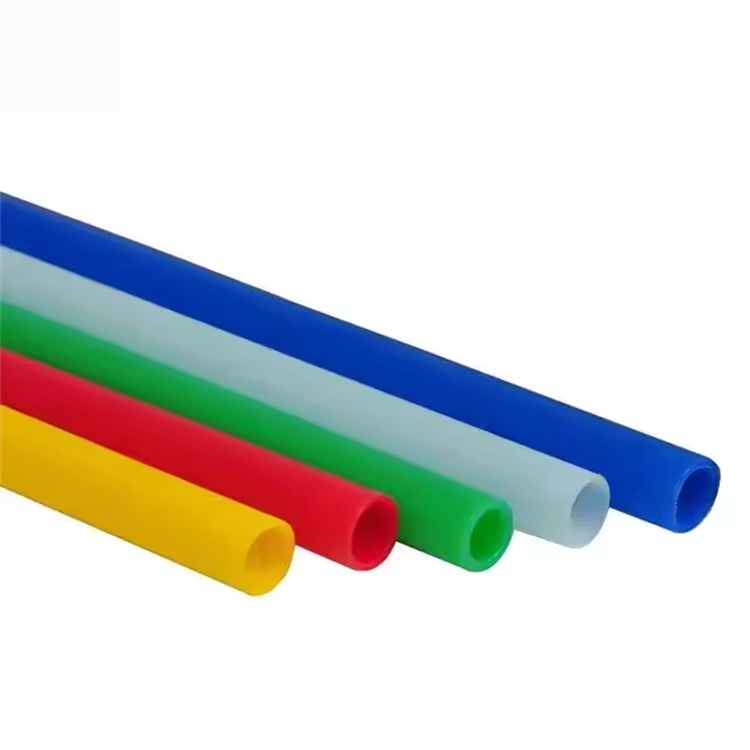

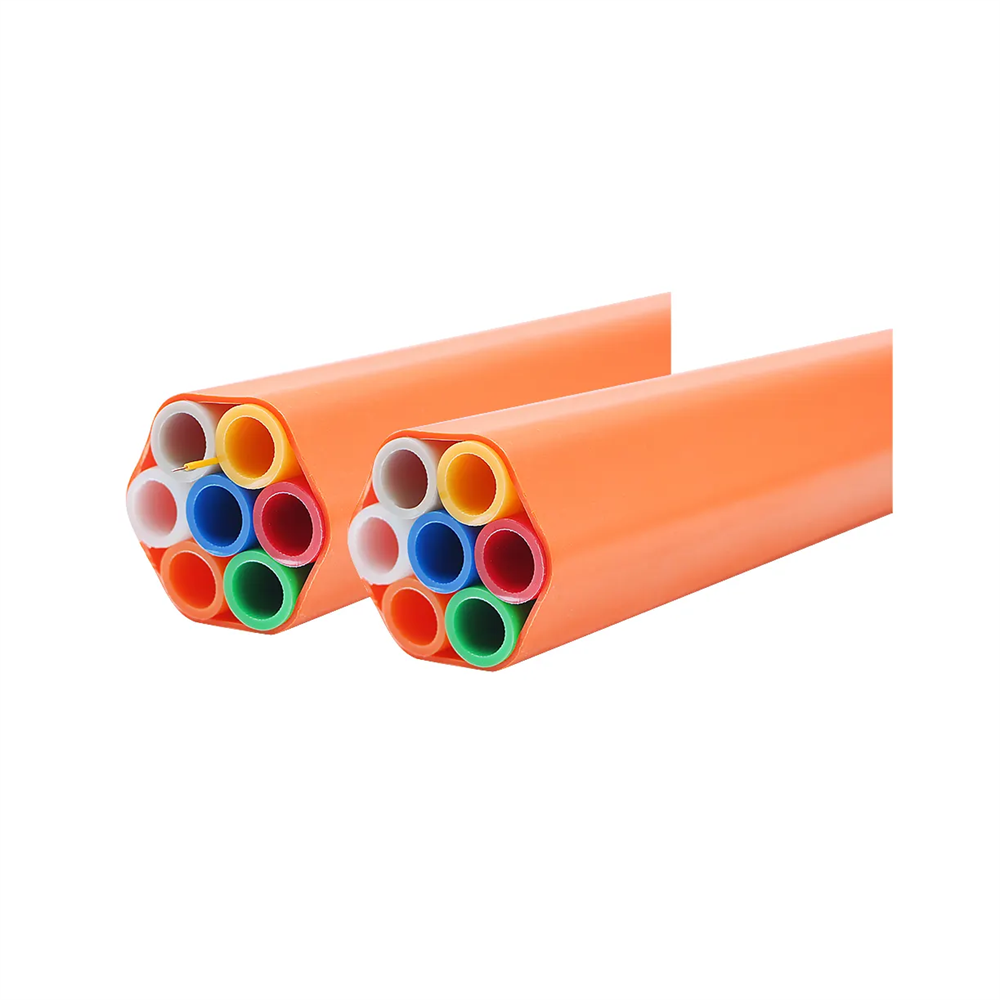

Various Types HDPE Microduct:

Storage of 7way microduct Pipe:

Completed packages of the HDPE microduct on drums can be stored outdoor Max. 12 months upon the date of production. Storage temperature: -40℃ to +70℃ Installation temperature: -20℃ to +50℃ Operating temperature: -40℃ to +70℃

Product packaging & Manufacturing:
