Model No.: GJYXFCH
Brand: OEM
Place Of Origin: China
Fiber Cores: 1 2 4 6 8 12 core
Jacket: PE PVC LSZH HDPE
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 22kg/km
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: FTTH drop optical fiber cable
Application: Outdoor
Cable Diameter: 2.0X5.0mm
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |

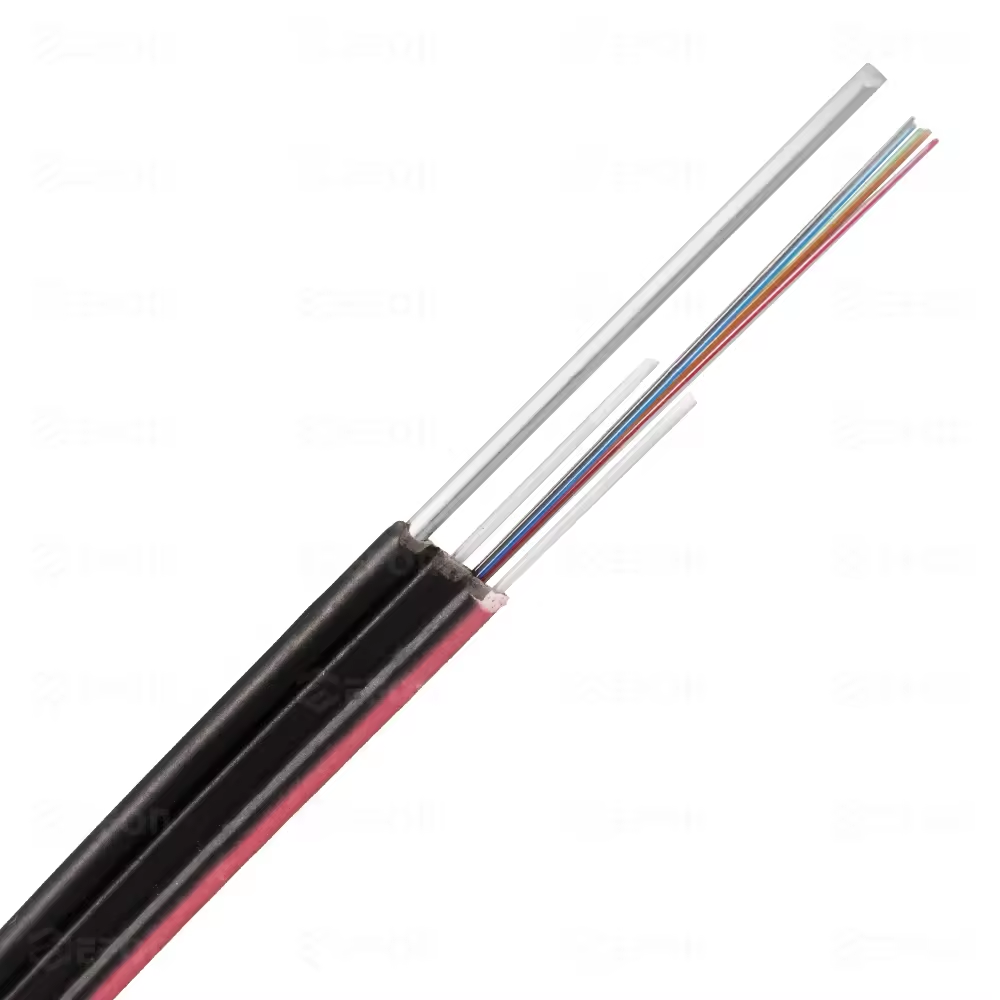

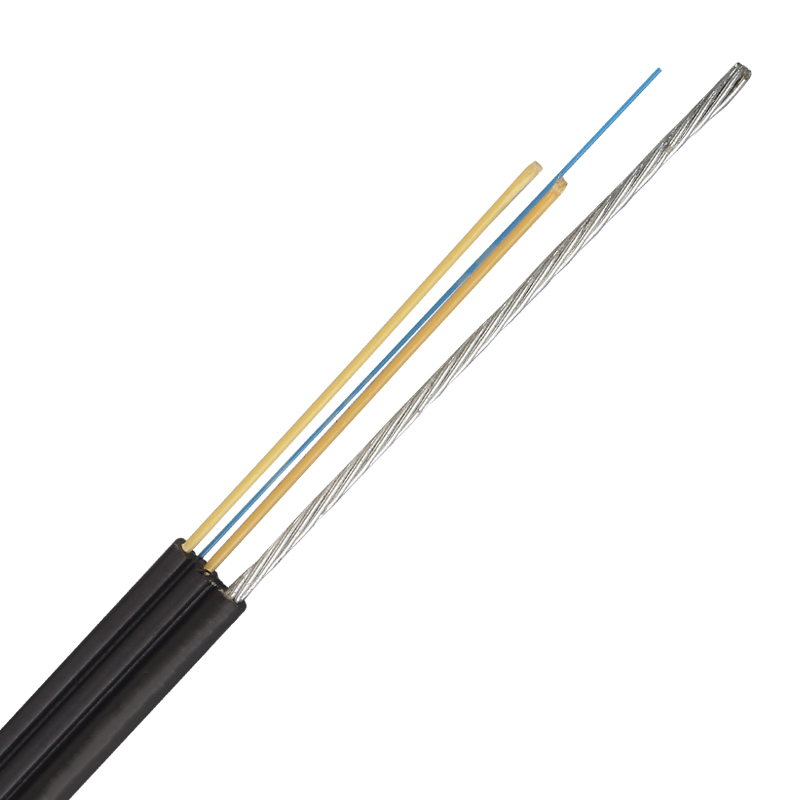

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Outdoor 2 core ofc multi core 2f fiber optic cable price
Description for fiber drop:
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires or KFRP are placed at the two sides.Then another FRP as the additional strength member is also applied. Then the cable is completed with a grey or black LSZH sheath.
Product Name:2 core ofc cable price,drop cables,2f fiber optic cable price,fiber to the home ftth,multi core fiber cable,ftth fiber,lszh optical cable,2 core fiber drop cable
single fiber cable cross section:
Technical parameter
| Items | Specifications | |
| Fiber Type | G.657A2（Fujikura Joint-venture Manufacture or Draka） | |
| Colored fiber | 1（Colored Green） | |
| Strength Member | 2pcs*0.5mm FRP | |
| Self-supporting Unit/Messenger | 1.2mm FRP | |
| Outer Jacket | Dimension | （2.0± 0.1 mm）H × （5.3 ± 0.3 mm）W |
| Material | Low Friction LSZH - Low smoke zero halogen | |
| Colored | Grey RAL7004HR | |
| Cable Attenuation | @ 1310 nm | ≤ 0.40 dB/km |
| @ 1550 nm | ≤ 0.30 dB/km | |
| Cable Printing | Customize | |
Mechanical and environmental characteristics
| Items | Unit | Specifications |
| Tension（Long Term） | N | 300 (200) |
| Tension（Short Term） | N | 600 (400) |
| Crush（Long Term） | N/10cm | 1000 |
| Crush（Short Term） | N/10cm | 2200 |
| Min. Bend Radius（Dynamic） | mm | 30 |
| Min. Bend Radius（Static） | mm | 15 |
| Operation temperature | ℃ | -20～+70 |
| Transport &Storage temperature | ℃ | -20～+70 |
| Install the temperature | ℃ | 0～+50 |
Characteristic
1.Special Low-bend sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP or KFRP or steel wire as strength memners ensure good performance of crush resistance to protect the fiber.
3.Aramid yarn as the traditional strength member ensures god performance of tensile strength.
4.Simple structure,light weight and high practicablity.
5.Novel flute design, easily strip and splice,simplity the installation and maintenance.
6. Low smoke, zero halogen and flame retardant Low friction sheath.
Application
1. Access network , fiber to the home
2. Support the Internet , CATV , telephone and more network service in the future.
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
