Model No.: GYXTC8Y
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Model Number: GYXTC8S
Core Number: 2~12 cores
Messenger: steel wire
Application: Aerial install
Fiber Options: G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count: 2-24 cores
Installation Tensile: 1000N-4000N
Bend Radius (Under Installation): 20 x External Diameter of cable
Material Of Jacket: Black Polyethylene (PE)
Certification: CE/ROHS/ISO9001
| Selling Units: | Kilometer |
| Package Type: | wooden reel ,iron-wooden reel |

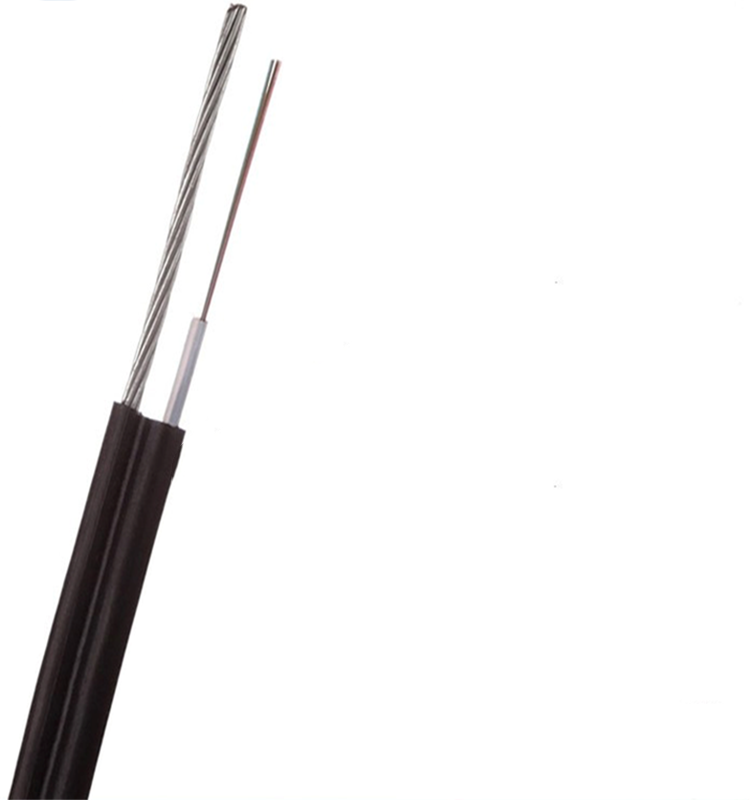

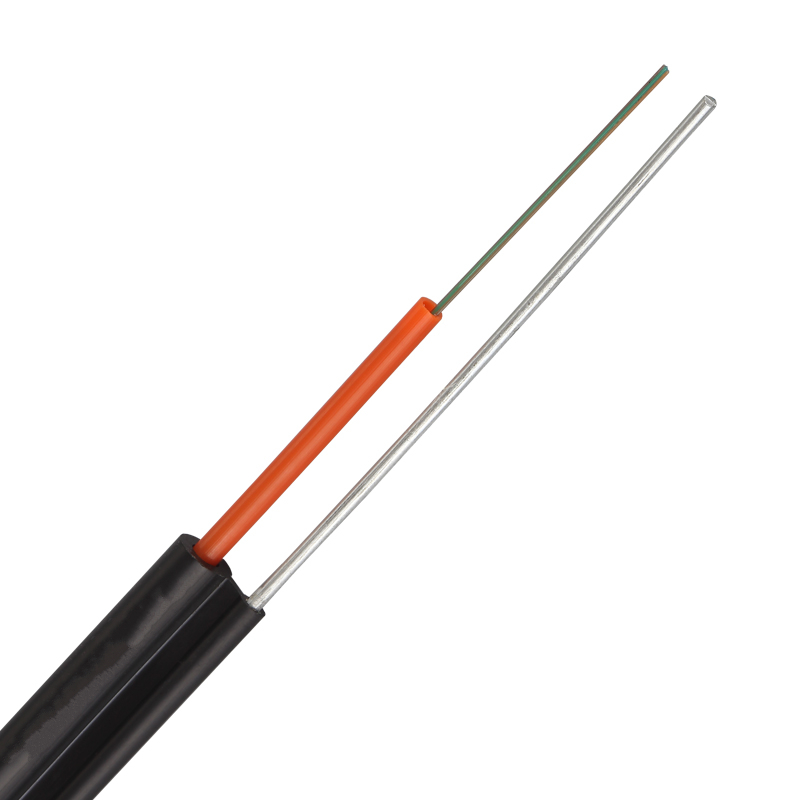

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

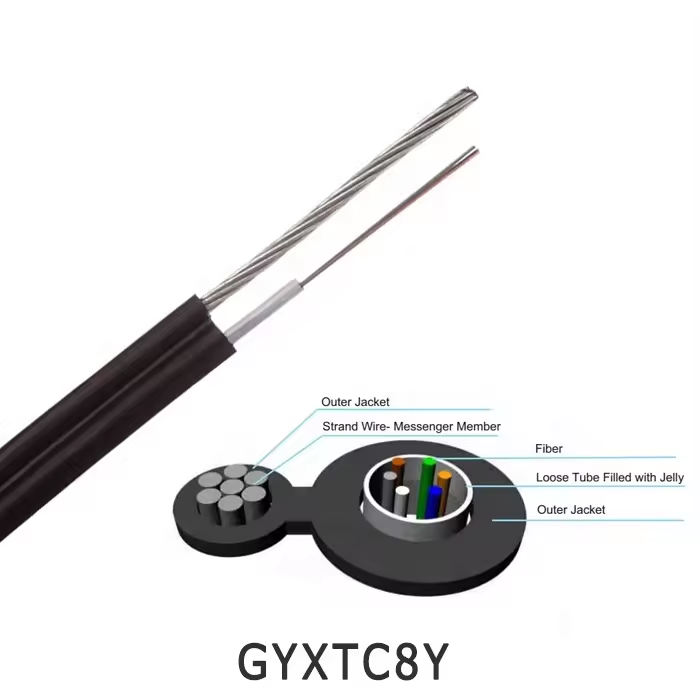

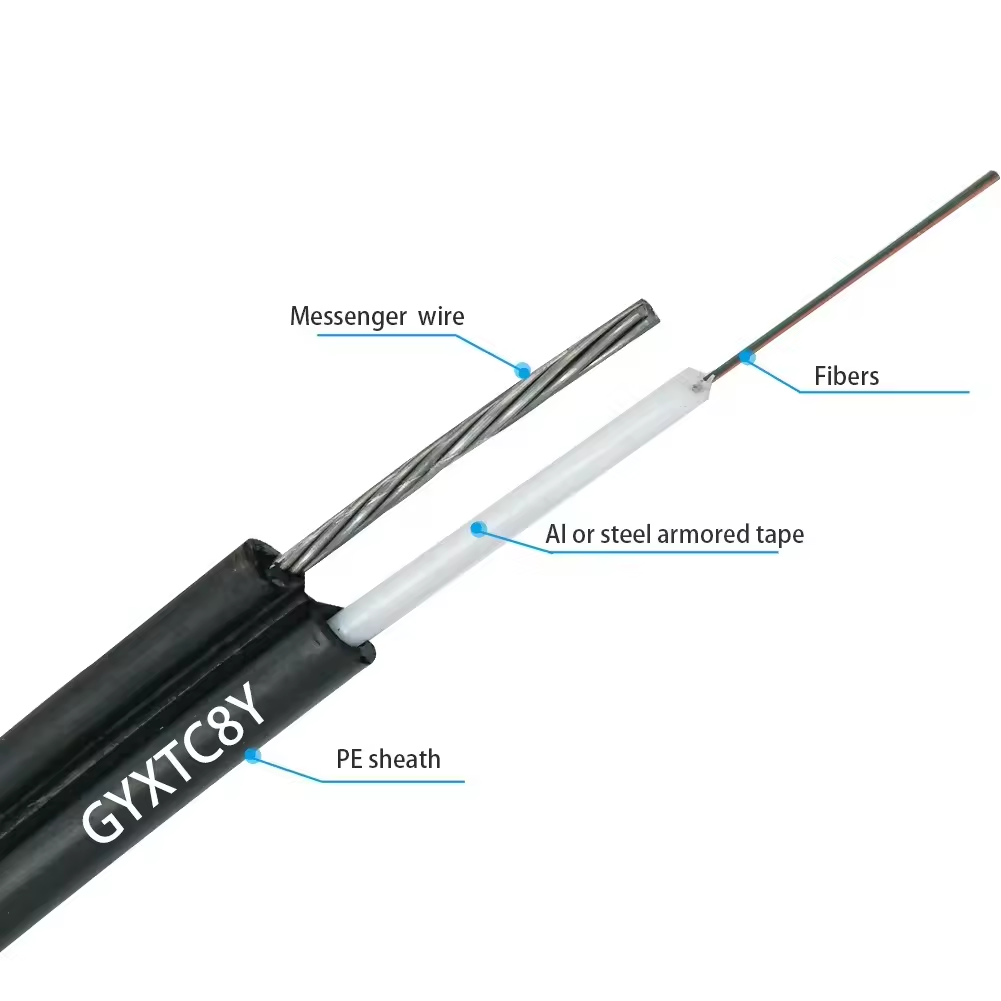

Cable construction for fiber optic 4 core single mode
· 2~12 fibers
· jelly filled
· fiber contained central loose tube
· Water blocking yarn
· PE outer sheath
· fig 8 type
· one steel wire suspension line
· G652D SM fiber, detailed specification on your request.
Features of aerial drop cable
· GYXTC8Y features the centrally situated loose tube with good excess length and minimize the influence of lateral crush
· The water blocking yarn provides good water resistant performance.
· The cross section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation for this GYXTC8Y fiber cable.
| Item | Characteristics | ||||
| Operation temperature | -40℃~ + 70℃ | ||||
| Storage temperature | -40℃~ + 60℃ | ||||
| Sheath Material | P:PE |
| Dimensional Characterstics | |||||||||
| Fiber count | Outer sheath | Cable dia.(mm) | cable height(mm) | Messenger wire (mm) | cable net weight (kg/km) | strength short term(n) | crush pressure short term (n/100mm) | crush pressure short term(n/100mm) | |
| 2~12 | PE | 5 | 10.1 | 1.6 | 47 | 1000 | 1000 | 1000 | |
| Model Number | GYXTC8Y |
| Type | Coaxial |
| shape | figure 8 |
| Certification | UL ,ROHS,SGS |
| Fiber | SM/MM/OM3/OM4 |
| Fiber Core | 2-24 core |
| Jacket Material | PE /LSZH/PU |
| Laying method | Pipeline/Overhead/Direct bury/Duct |
| keywords | Outdoor Fiber Optic Cable |
| Color | Black or customized |
| Fiber brand | Corning, LS, etc |
| Fire Resistant | Yes |
| Armored or not | Corrugated steel tape armored |
Cable Performance of fiber optic figure 8
Rural communication, local trunk line, CATV & computer networks system
Application: self-supporting aerial cable figure 8
Installation method : self-supporting aerial
Operating temperature : -40°C ~ +70°C
Lifetime : above 30 years
Cable Drum: Composite wooded drum
Standard reel length：2,000m/reel（according to customer’s requirement.）
Packaging: wooden reel ,iron-wooden reel
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: CE/ROHS/ISO9001
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
