Model No.: GYTC8A/GYTC8S
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Overhead aerial install
Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4
No. Of Fiber: 2-288 Cores
Outer Sheath: PE LSZH HDPE
Keyword: Fiber Optic Cable
Max Crush Resistance: 1000/300
Armored: Aluminium tape/Steel Tape
Installation Tensile: 7000N
Messenger: Stranded steel wire
Product Name: Fig 8 fiber cable
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

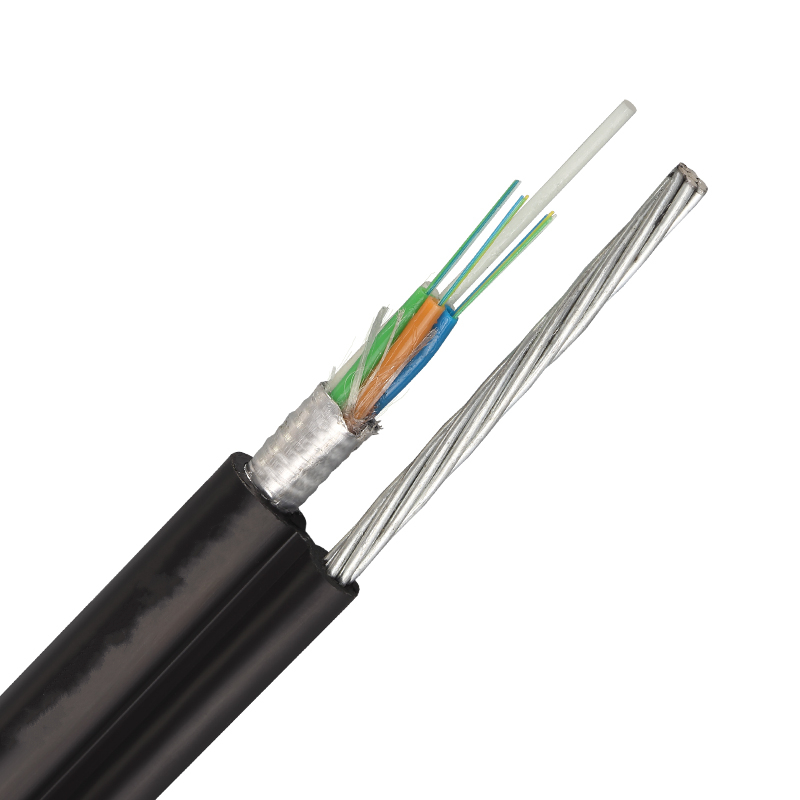

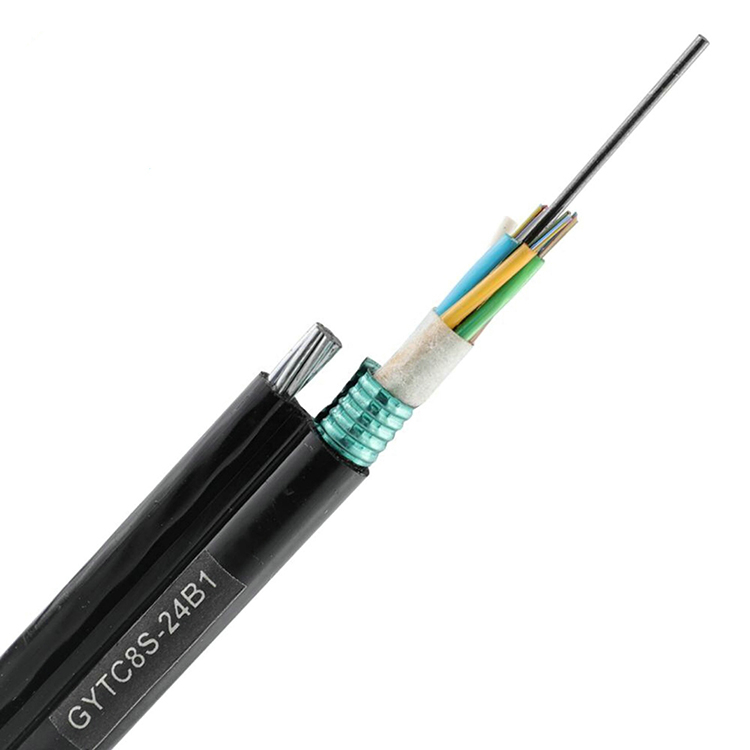

GYXTC8S 24core single mode fiber optical cable types

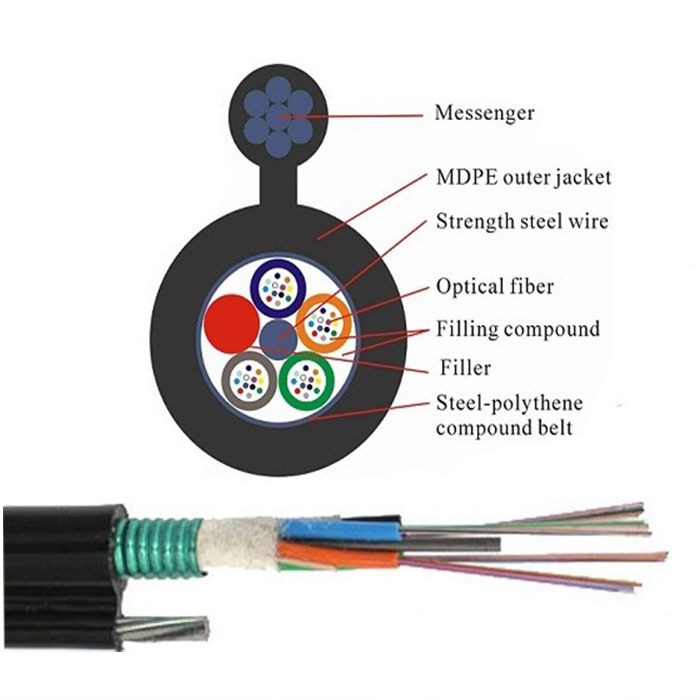

The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Product Name:single mode fiber,optical cable type,fiber cable types,fiber optic manufacturers，self supporting fiber optic cable，single mode fiber type，cost of optical fiber cable per meter，figure 8 fiber optic cable，12 strand armored fiber optic cable，fiber optic cable outdoor
·High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·The following measures are taken to ensure the cable watertight:
·Loose tube filling compound
·100% cable core filling
·APL moisture barrier
GYTC8A cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| Cable Type | Fiber Count | Cable Diameter | Cable Weight Kg/km | Supporting Wire Spec | Connection Diameter | Tensile Strength N | Crush Resistance | Bending Radius mm |
| GYTC8A-2～60 | 2～60 | 9.5×18.3 | 218 | ф1.0mm×7 | High * width 3.0×2.5 | 4000/7500 | 500/1000 | 15D/30D |
| GYTC8A-62～72 | 62～72 | 10.5×19.3 | 240 | ф1.0mm×7 | High * width 3.0×2.5 | 4000/7500 | 500/1000 | 15D/30D |
| GYTC8A-74～96 | 62～72 | 12.5×20.3 | 280 | ф1.0mm×7 | High * width | 4000/7500 | 500/1000 | 15D/30D |
| GYTC8A-98～120 | 62～72 | 13.5×21.3 | 320 | ф1.0mm×7 | High * width 3.0×2.5 | 4000/7500 | 500/1000 | 15D/30D |
| GYTC8A-122～144 | 62～72 | 15.0×24.3 | 350 | ф1.0mm×7 | High * width 3.0×2.5 | 4000/7500 | 500/1000 | 15D/30D |
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

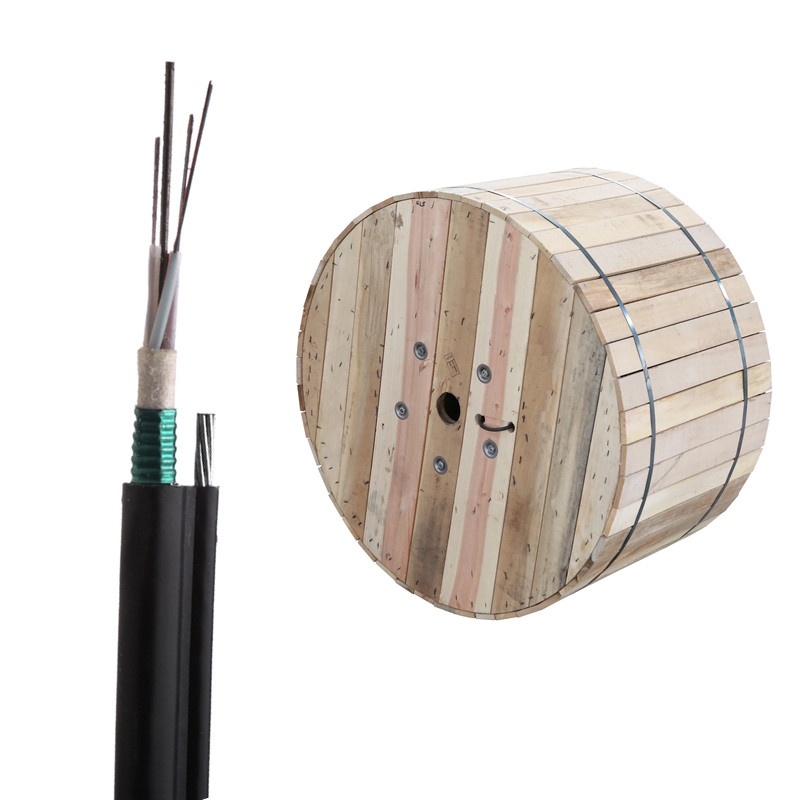

Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,Express Delivery
