1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price
1 km fiber optic 4 6 core ofc cable price

1 km fiber optic 4 6 core ofc cable price

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYXTC8Y

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Model NumberGYXTC8S

Core Number2~12 cores

Messengersteel wire

ApplicationAerial install

Fiber OptionsG652D ,G657A,OM1,OM2,OM3,OM4

Fiber Count2-24 cores

Installation Tensile1000N-4000N

Bend Radius (Under Installation)20 x External Diameter of cable

Material Of JacketBlack Polyethylene (PE)

CertificationCE/ROHS/ISO9001

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden reel ,iron-wooden reel
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
fig8 1 km fiber optic cable 4 6 core ofc cable price

The structure of GYXTC8Y cable is to put 250µm optical fiber into loose tube made of high modulus material.Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

Product Name:fiber optic cable 4 core price,fiber optic cable price 1 km,6 core ofc cable price,8 core multimode fibre optic cable,fiber optic cable modes,1 core fiber optic cable

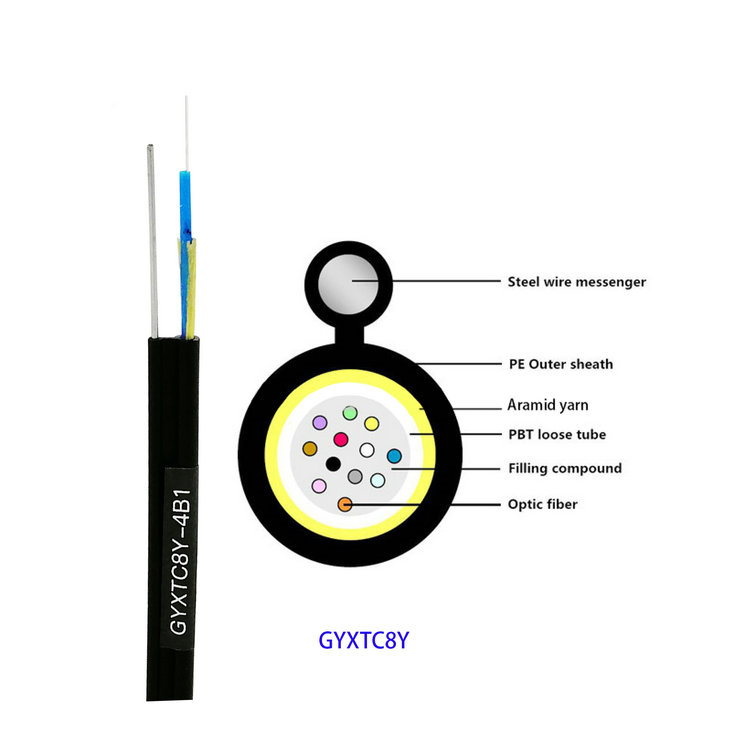

Cable Cross Section for aerial drop cable:
8 core multimode fibre optic cable
Technical Data for fiber optic figure 8
ITEM
Technical Parameters
No. of cable
2/4/8/12/24
Fiber Model
G652D/G657A
Loose Tube Material
PBT
Strength Member
Aramid Yarn
Messenger Wire Material
Steel Wire
Outer Sheath Material
PE
Installation Temperature range(℃)
-20~+60
Transport&Storage Temperature range(℃)
-40~+70
Operation Temperature range(℃)
-40~+70
fiber optic cable price 1 kmfiber optic cable 4 core price1 core fiber optic cable
Products Features of single mode fiber
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant,special tube filling compound en sure a critical protection of fiber,crush resistance and flexibility
* Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
* Simple structure, light weight and high practicability

Application of cable figure 8
* Long-distance telecom, LAN in high- voltage area or access to telecom network
* Especially for power transmission system.Much thunder areas and highelectromagnet ic interference

Packing
1 .The cables are packed in wooden drums andthen in carton box
2 .Standard delivery length is 1km/roll or percustomer’s requirements.
3 .Sheath Marking: The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
fiber cable packing
Supply Ability & Additional Information

Packagingwooden reel ,iron-wooden reel

Productivity1000 Kilometer/Kilometers per

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability1000 Kilometer/Kilometers per Month

CertificateCE/ROHS/ISO9001

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
