Model No.: GYXTC8S
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Overhead aerial install
Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4
No. Of Fiber: 2-288 Cores
Outer Sheath: PE LSZH HDPE
Keyword: Fiber Optic Cable
Max Crush Resistance: 1000/300
Armored: Aluminium tape/Steel Tape
Installation Tensile: 7000N
Messenger: Stranded steel wire
Product Name: Fig 8 fiber cable
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Steel armored ofc 24 core fiber optic cable structure price
Description（Armored Fiber Optical Cable）

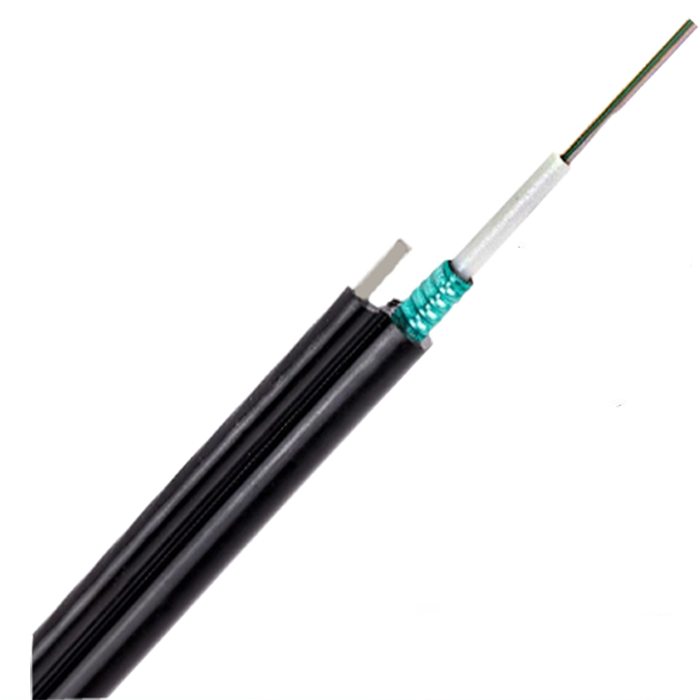

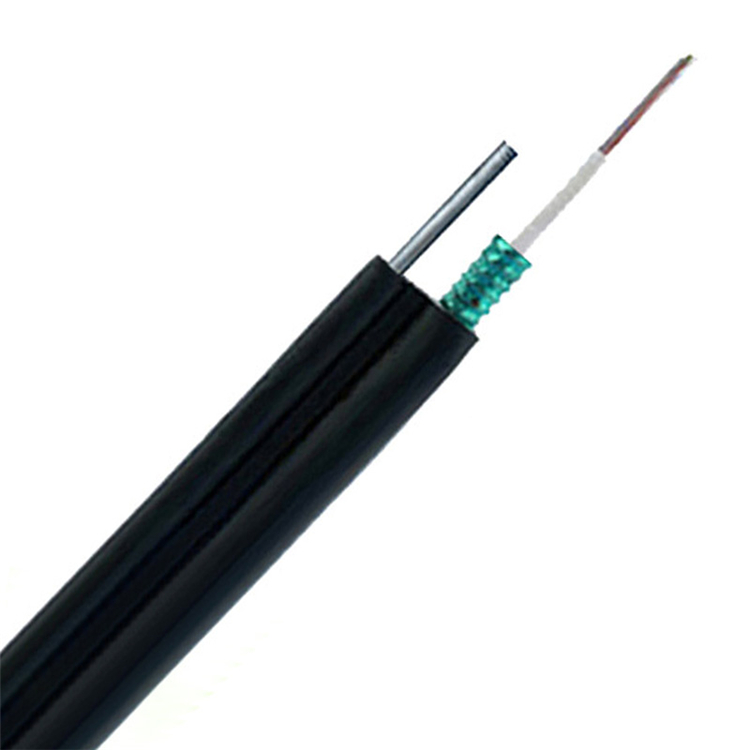

In the GYTC8S/GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Product Name:24 core fiber,ofc cable price,fiber optic cable structure,fiber cable 6 core price,fiber optic cable wire,cost of ofc cable per meter,2 core optical fiber cable price,armoured fibre cable,fiber 4 core cable price,1000m fiber optic cable price,12f fiber optic cable

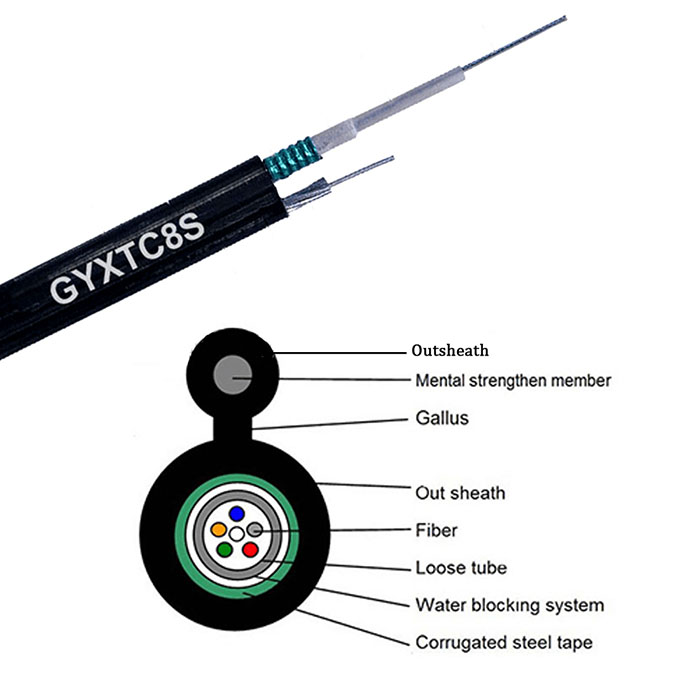

aerial drop cable cross section:
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm |
| GYTC8S/A 2 ~ 30 | 2 ~ 30 | 9.5 x 19.1 | 160.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 32 ~ 36 | 32 ~ 36 | 10.1 x 19.7 | 170.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 38 ~ 60 | 38 ~ 60 | 10.8 x 20.4 | 180.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 62 ~ 72 | 62 ~ 72 | 12.4 x 22.0 | 195.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 74 ~ 96 | 74 ~ 96 | 13.1 x 22.7 | 222.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 98~ 120 | 98~ 120 | 15.7 x 22.3 | 238.0 | 2000/6000 | 300/ 1000 |
| GYTC8S/A 122~ 144 | 122~ 144 | 15.5 x 25.1 | 273.0 | 2000/6000 | 300/ 1000 |
Note:
Outdoor Fiber Optic Cable sheath marking & packing
The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.
Re-markingis yellow color, if necessary.
GT *** xxFIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
xxFIBRE: Fiber count
Month/Year:Manufacture date
XXXXM: The figure of meter.
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,Express Delivery
