Single Mode Overhead Fig8 Self Supporting Aerial Cable

Single Mode Overhead Fig8 Self Supporting Aerial Cable

Payment Type:	L/C,T/T,Paypal,others
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYXTC8Y

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Model Number: GYXTC8S

Core Number: 2~12 cores

Messenger: steel wire

Application: Aerial install

Fiber Options: G652D ,G657A,OM1,OM2,OM3,OM4

Fiber Count: 2-24 cores

Installation Tensile: 1000N-4000N

Bend Radius (Under Installation): 20 x External Diameter of cable

Material Of Jacket: Black Polyethylene (PE)

Certification: CE/ROHS/ISO9001

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden reel ,iron-wooden reel
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

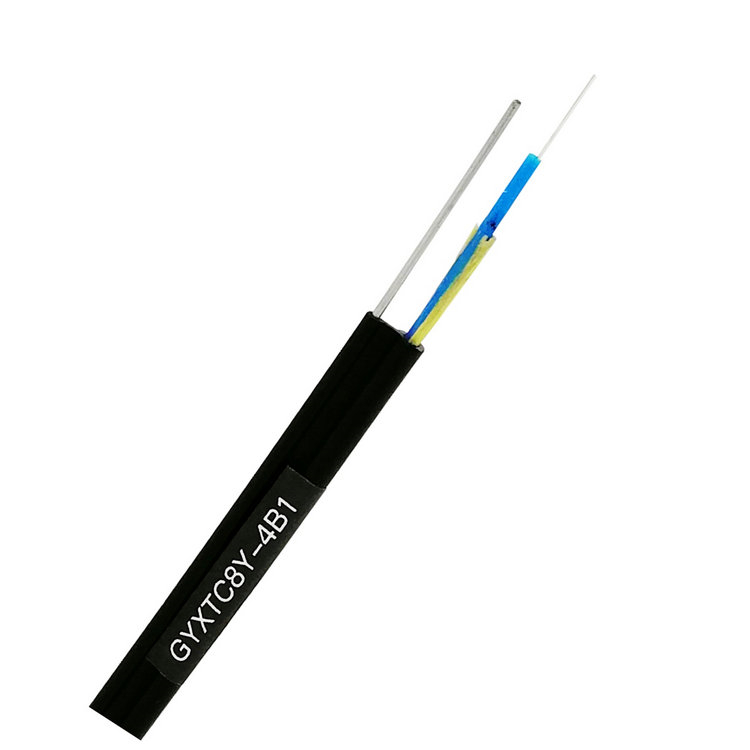

Single Mode Overhead Fig8 Self Supporting Aerial Cable

Mini Figure 8 drop fiber optic cable（GYXTC8Y） which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full filling with aramid yarn.

It can installation freely in narrow room.This cable consist of the loose tube with single mode or multimode fibers and steel wire as the messenger wire, which are formed like “Figure 8”. After aramid yarn is applied over the inner sheath, the cable is completed with a PE outer sheath.

Product Name:fiber optic 4 core single mode,fiber optic internet cable price,fiber optic cable construction,4f ofc cable price,optical cable price per meter,fiber internet cable price

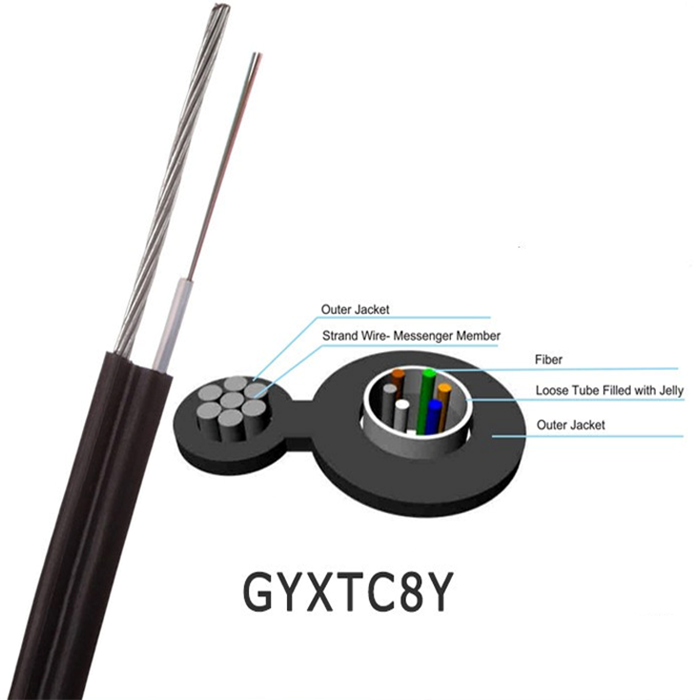

Cable Cross Section:

Mechanical & Environmental Characteristics:

Item			Characteristics
Operation temperature			-40℃~ + 70℃
Storage temperature			-40℃~ + 60℃
Sheath Material			P:PE

Dimensional Characterstics
Fiber count	Outer sheath	Cable dia.(mm)	cable height(mm)	Messenger wire (mm)	cable net weight (kg/km)	strength short term(n)	crush pressure short term (n/100mm)	crush pressure short term(n/100mm)
2~12	PE	5	10.1	1.6	47	1000	1000	1000

Model Number	GYXTC8Y
Type	Coaxial
shape	figure 8
Certification	UL ,ROHS,SGS
Fiber	SM/MM/OM3/OM4
Fiber Core	2-24 core
Jacket Material	PE /LSZH/PU
Laying method	Pipeline/Overhead/Direct bury/Duct
keywords	Outdoor Fiber Optic Cable
Color	Black or customized
Fiber brand	Corning, LS, etc
Fire Resistant	Yes
Armored or not	Corrugated steel tape armored

Application:

Self supporting Aerial for FTTH Solution

1. Used for indoor wiring, the end user with cable directly;
2. Used for building introduction of optical cable;
3. The user in the FTTH indoor wiring.

Temperature Range:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Characteristic:

1. Accurate optical fiber excess length ensures good mechanical and temperature performance.,
2. High strength loose tube that is hydrolysis resistant and special tube filling compound and flexibility.
3. Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap.
4. The service life of the products willbe more 30 years.
5. Light, flexible, easy for the laying and it is used for FTTH solution.
