self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable
self supporting aerial singlemode GYTC8S fiber optic cable

self supporting aerial singlemode GYTC8S fiber optic cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYTC8S

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationOverhead aerial install

Fiber TypeITU G652D ,G657A,OM1,OM2,OM3,OM4

No. Of Fiber2-288 Cores

Outer SheathPE LSZH HDPE

KeywordFiber Optic Cable

Max Crush Resistance1000/300

ArmoredAluminium tape/Steel Tape

Installation Tensile7000N

MessengerStranded steel wire

Product NameFig 8 fiber cable

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
self supporting aerial singlemode GYTC8S fiber optic cable

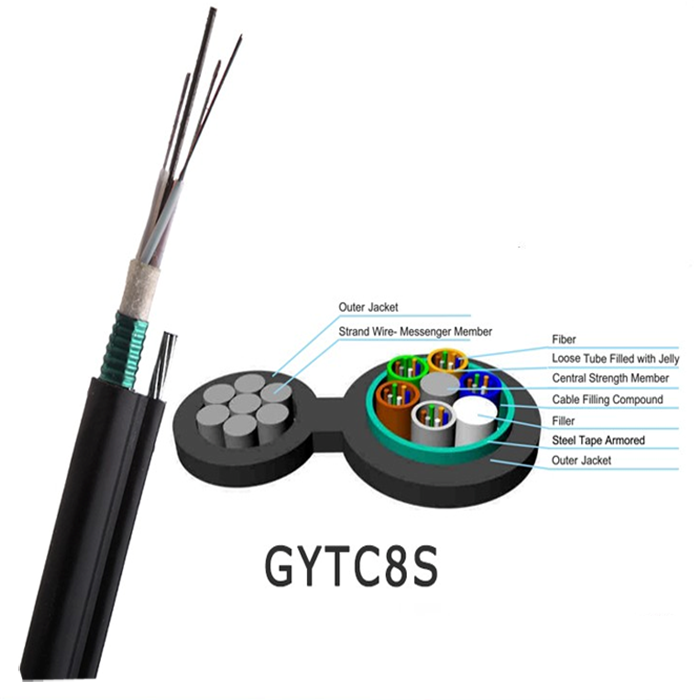

In the GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Product Name:optical fiber cost,fibre optic price,fiber optic cable cost per meter,self supporting fiber optic cable,fiber optic cable pictures,single mode fiber type,fiber optic cable outdoor

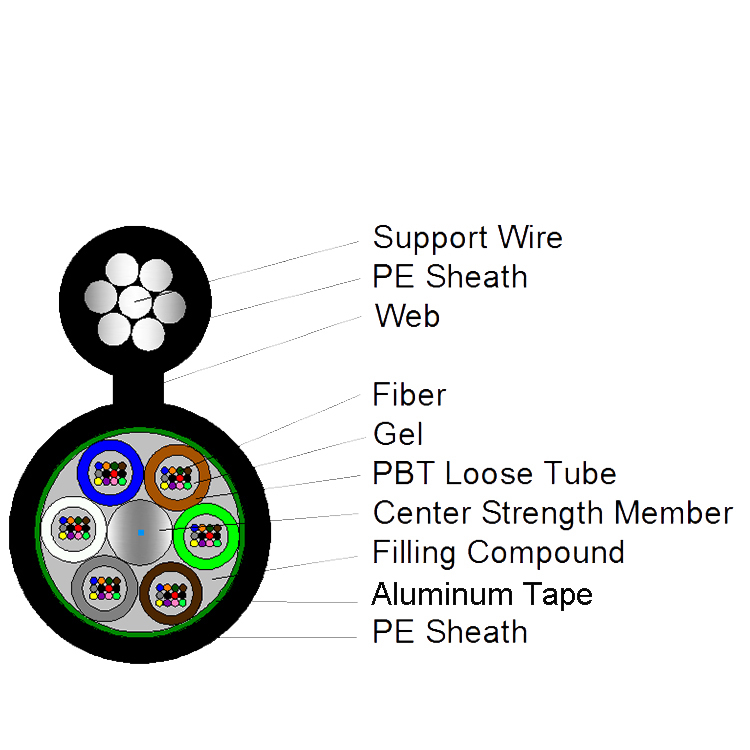

fiber optic wires cross section:
figure 8 fiber optic cable

armoured fiber cable Technical Parameter:

Fiber Count
(F)
Cable Diameter
(mm)
Cable Weight
(kgs)
Tensile Strength (N) Crush Strength (N) Min. Bending Radius Temperature Range
(℃)
Long term Short Term Long term Short Term Long term Short Term
2~32 5.5×10.0 215 1000 3000 1000 3000 10D 20D -40~+60
32~36 5.5×10.0 238 1000 3000 1000 3000 10D 20D -40~+60
38~60 5.5×10.0 242 1000 3000 1000 3000 10D 20D -40~+60
62~72 7.0×12.0 273 1000 3000 1000 3000 10D 20D -40~+60
74~96 7.0×12.0 302 1000 3000 1000 3000 10D 20D -40~+60
98~120 7.0×12.0 338 1000 3000 1000 3000 10D 20D -40~+60
120~144 7.0×14.0 374 1000 3000 1000 3000 10D 20D -40~+60

fiber single mode cable characteristics:

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Note:

1.Figure-8 Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.fibre optic pricesingle mode optical cablelaying optical fiber cablefiber optic cable pictures

Application: Self supporting Aerial

1. High performance optical network operating.
2. High speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.

Temperature Range:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

splice optical cable Characteristic:

1. Excellent mechanical and temperature performance
2. Critical protection to fibers.

Standards:

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Packing and Marking:

  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3,000m±2%; as required
  • 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
  • Manufacturing year and month Roll—direction arrow;
  • Drum length; Gross/net weight;
