outdoor 24core single mode fiber drop optic cable

outdoor 24core single mode fiber drop optic cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYTC8A

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Overhead aerial install

Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4

No. Of Fiber: 2-288 Cores

Outer Sheath: PE LSZH HDPE

Keyword: Fiber Optic Cable

Max Crush Resistance: 1000/300

Armored: Aluminium tape/Steel Tape

Installation Tensile: 7000N

Messenger: Stranded steel wire

Product Name: Fig 8 fiber cable

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool

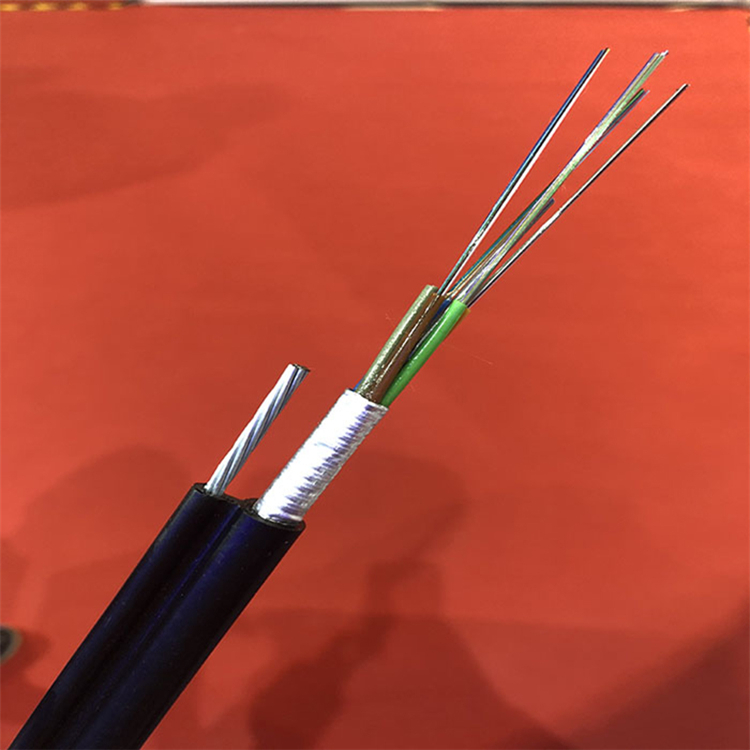

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

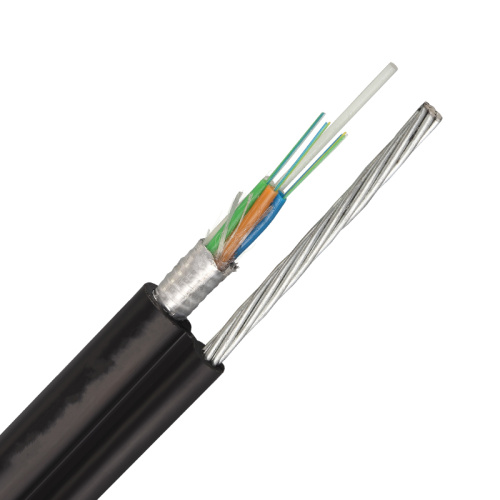

12 24 core single mode figure 8 fiber drop optic cable

In the GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Product Name:fiber optic cable pictures,single mode fiber type,fiber optic cable outdoor,self supporting fiber optic cable,cost of optical fiber cable per meter,cable figure 8,fiber optic cable outdoor,outdoor multimode fiber optic cable,fiber optic cable diameter,size of fibre optic cable

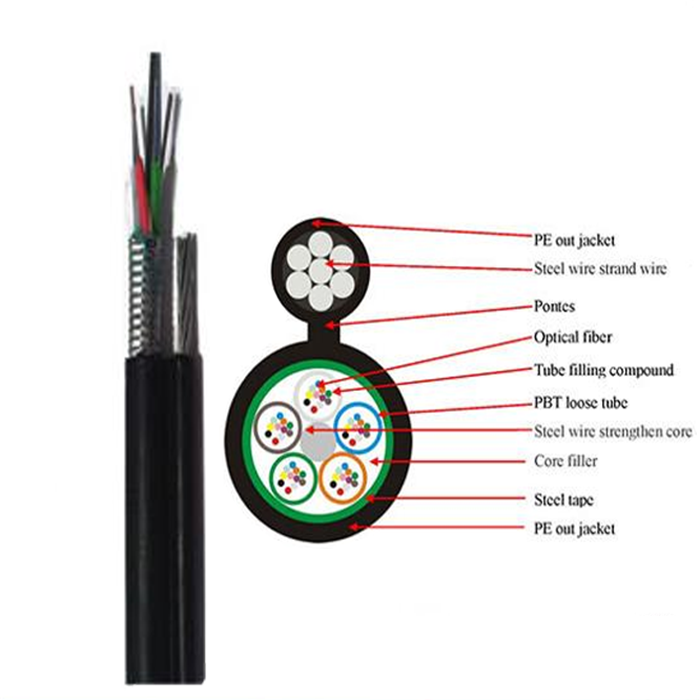

Cable Cross -Section:

Technique Parameters:

Cable Type (Increased by 2 fibers)	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term( N)	Crush Resistance Long/Short Term( N/100mm)
GYTC8A 2 ~ 30	2 ~ 30	9.5 x 19.1	160.0	2000/6000	300/ 1000
GYTC8A 32 ~ 36	32 ~ 36	10.1 x 19.7	170.0	2000/6000	300/ 1000
GYTC8A 38 ~ 60	38 ~ 60	10.8 x 20.4	180.0	2000/6000	300/ 1000
GYTC8A 62 ~ 72	62 ~ 72	12.4 x 22.0	195.0	2000/6000	300/ 1000
GYTC8A 74 ~ 96	74 ~ 96	13.1 x 22.7	222.0	2000/6000	300/ 1000
GYTC8A 98~ 120	98 ~ 120	15.7 x 22.3	238.0	2000/6000	300/ 1000
GYTC8A 122~ 144	122 ~ 144	15.5 x 25.1	273.0	2000/6000	300/ 1000

Note:
1.Figure-8 Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

Features:

1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

2. Good mechanical and temperature performance.

3. Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance.

4. Special jelly filled in the loose tube provides the fibers with critical protection Figure-8 self-supporting structure, high

tension strength, facilitate in aerial, low installation costs.

5. Accurate fiber excess length control ensures excellence mechanical and temperature performance

Standards:

Comply with stand YD/T 1155-2001 as well as IEC60794-1.

Application:

Self supporting Aerial
1. High performance optical network operating.
2. High speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
