GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable
GYXTC8S 6 core optical fibre internet fiber cable

GYXTC8S 6 core optical fibre internet fiber cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYXTC8S

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationOverhead aerial install

Fiber TypeITU G652D ,G657A,OM1,OM2,OM3,OM4

No. Of Fiber2-288 Cores

Outer SheathPE LSZH HDPE

KeywordFiber Optic Cable

Max Crush Resistance1000/300

ArmoredAluminium tape/Steel Tape

Installation Tensile7000N

MessengerStranded steel wire

Product NameFig 8 fiber cable

Packaging & Delivery
Selling Units: Kilometer

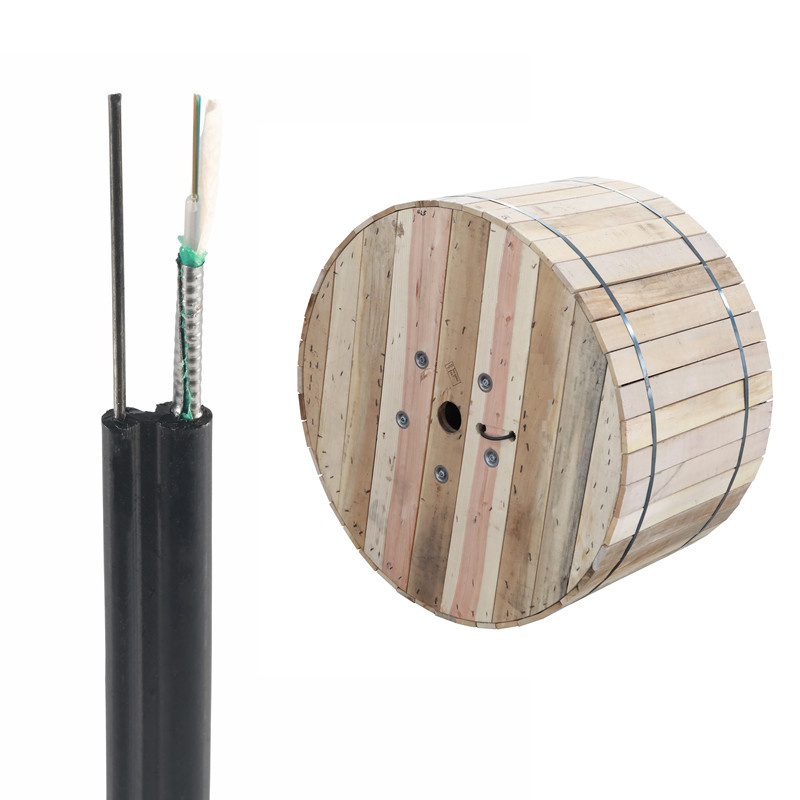

Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Outdoor Fiber Optic Cable description:

GYXTC8S 2 6 core optical fibre internet fiber cable

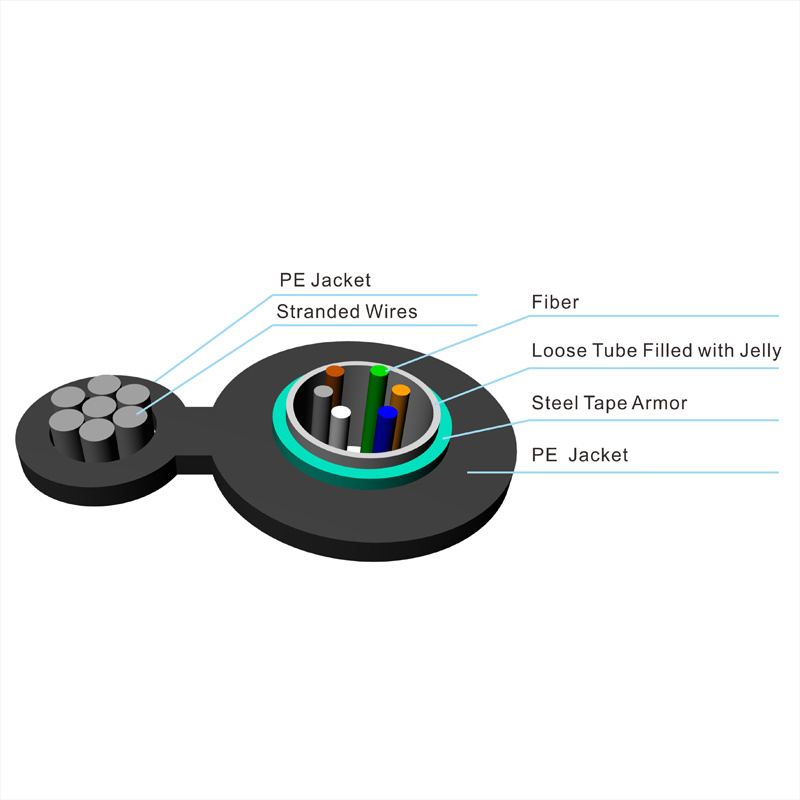

The fibers, 200/250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Product Name:optical fiber optic,optical cable,optical fibre internet,2 core optical fiber cable price,fiber cable 6 core price,optical fiber wire price,industrial fiber optic cable,corning optical cable price,GYXTC8S,fiber cable cost per meter

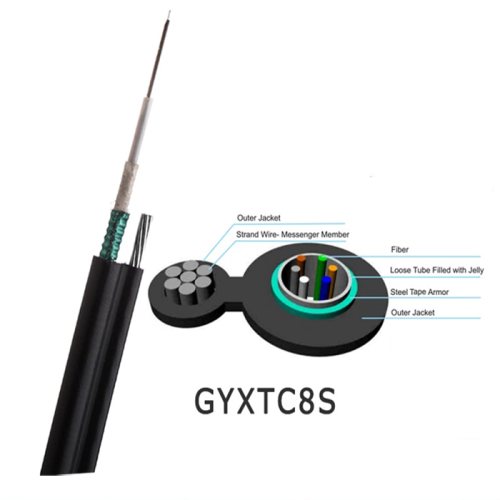

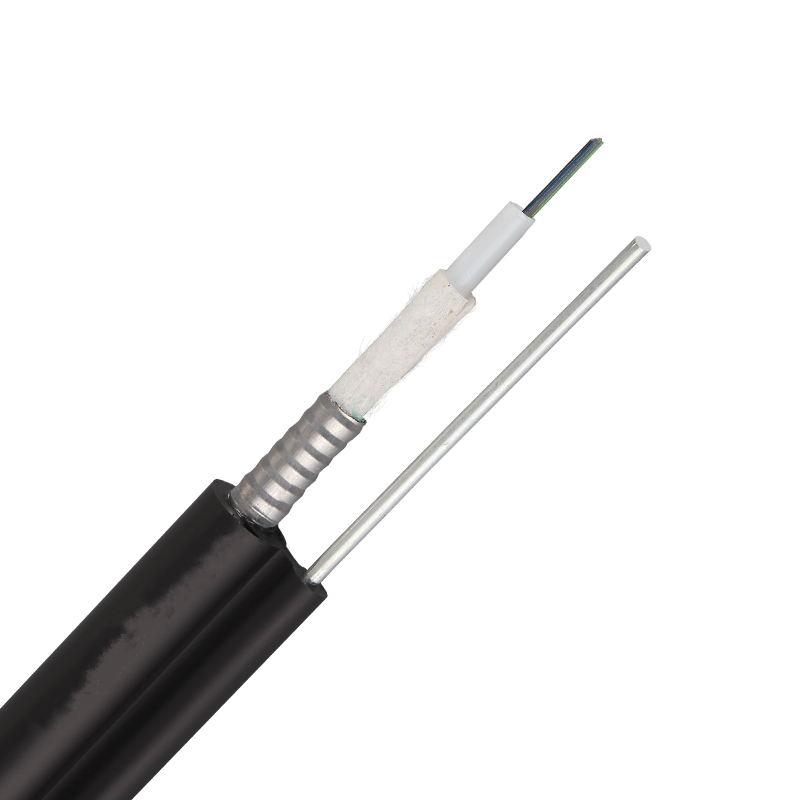

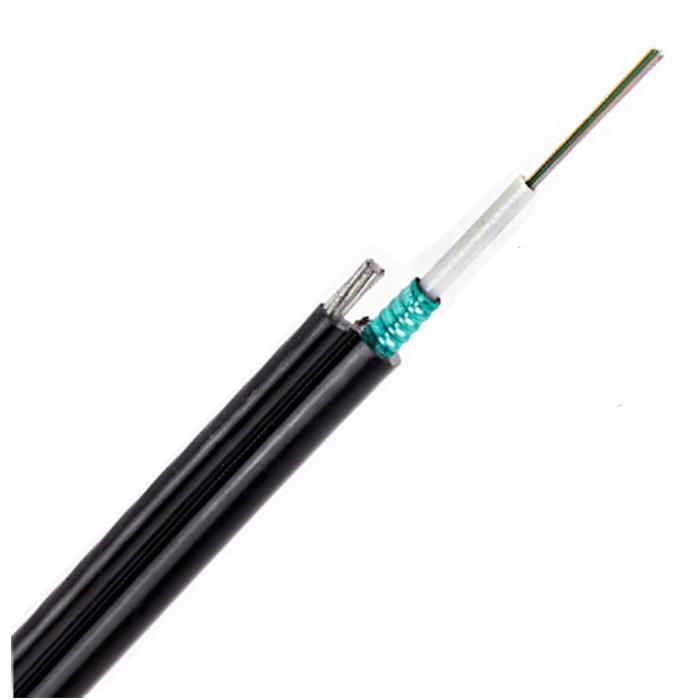

Aerial Fiber Optic Cable Picture:

optical fiber wire priceindustrial fiber optic cable

12 fiber cable features:

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·PSP enhancing moisture-proof
·Small diameter, light weight and friendly installation
·Long delivery length and low price.

optical fiber 2 core standard:

·GYXTC8S cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.

fiber armoured cablefiber cable 6 core priceself support cable

singlemode fiber optic cable characteristics:



G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical    Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm





os2 fiber optic cable technical parameters:

Cable Type

Fiber Count

 Cable Diameter
     mm

Cable Weight   Kg/km

Supporting Wire Spec

Connection Diameter      mm

Tensile Strength
    N

Crush Resistance  N/100m

Bending Radius
     mm

GYXTC8S

2~12

7.0×14.0

118

ф1.0mm×7
     steel strand

High * width
     3.0×2.5

3500/7000

1000/3000

15D/30D

GYXTC8S

14~24

8.0×15.1

129

ф1.0mm×7
     steel strand

High * width      3.0×2.5

3500/7000

1000/3000

15D/30D


Storage/Operating Temperature : -40℃ to + 70℃

Packing and Marking:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

6 fiber cable sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

fiber cable cost per meter



Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,Express Delivery
