communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable
communication figure 8 aerial optic fiber drop cable

communication figure 8 aerial optic fiber drop cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJYC8H

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Fiber TypeG652D ,G657A ,G657A2

Fiber Count1-12Fibers

Cable StructureSelf-support tight buffe

Messenger MemberSteel wire

Strength Memberaramid yarns

ApplicationOutdoor aerial

Material Of JacketUV and Flame resistant LSZH

Installation Tensile1200N

CertificateISO9001,ROHS,CE

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden drum ,iron-wooden drum with fumigated or not
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

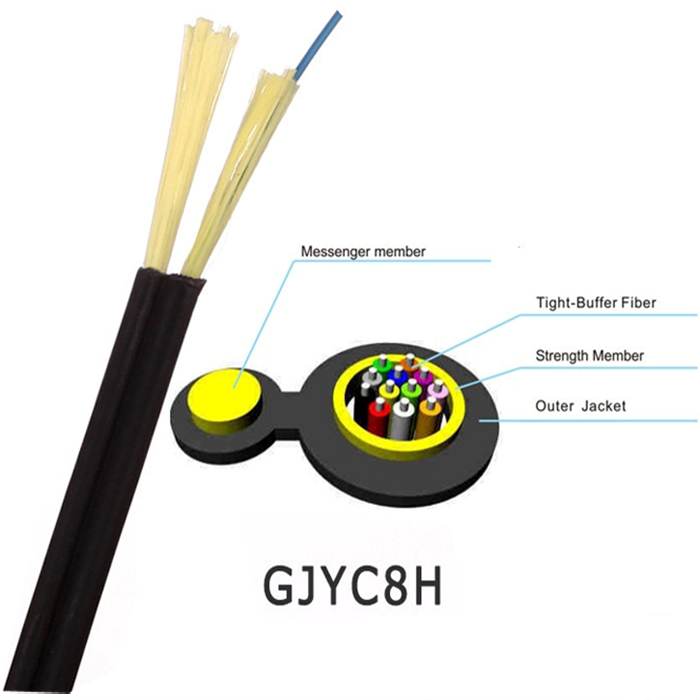

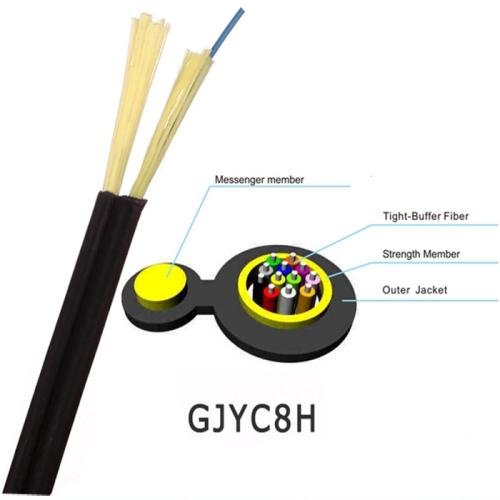

Description for cable figure 8:

GJYC8H aramid yarns figure 8 aerial optic fiber drop cable

GJYC8H cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm fibers,twisting fibers with aramid yarn into the circular cable core,then steel wires assembled into the shape 8 PE sheath.

Fiber:
1-12 fibers
900um tight buffer fiber.
Strength Member:
Metallic steel wire or Kevlar yarn member.
Messenger Member:
Kevlar yarn.
Outer Jacket:
UV and flame resistant LSZH
Features:
Good UV and flame resistant.
Figure 8 ,tight buffer design.
Compact, soft, flexible, easy to install.

Product Name:fiber optic telecom,optic fiber communication,fiber drop cable,fiber manufacturers,fiber optic figure 8,drop cable price,fiber optic factory

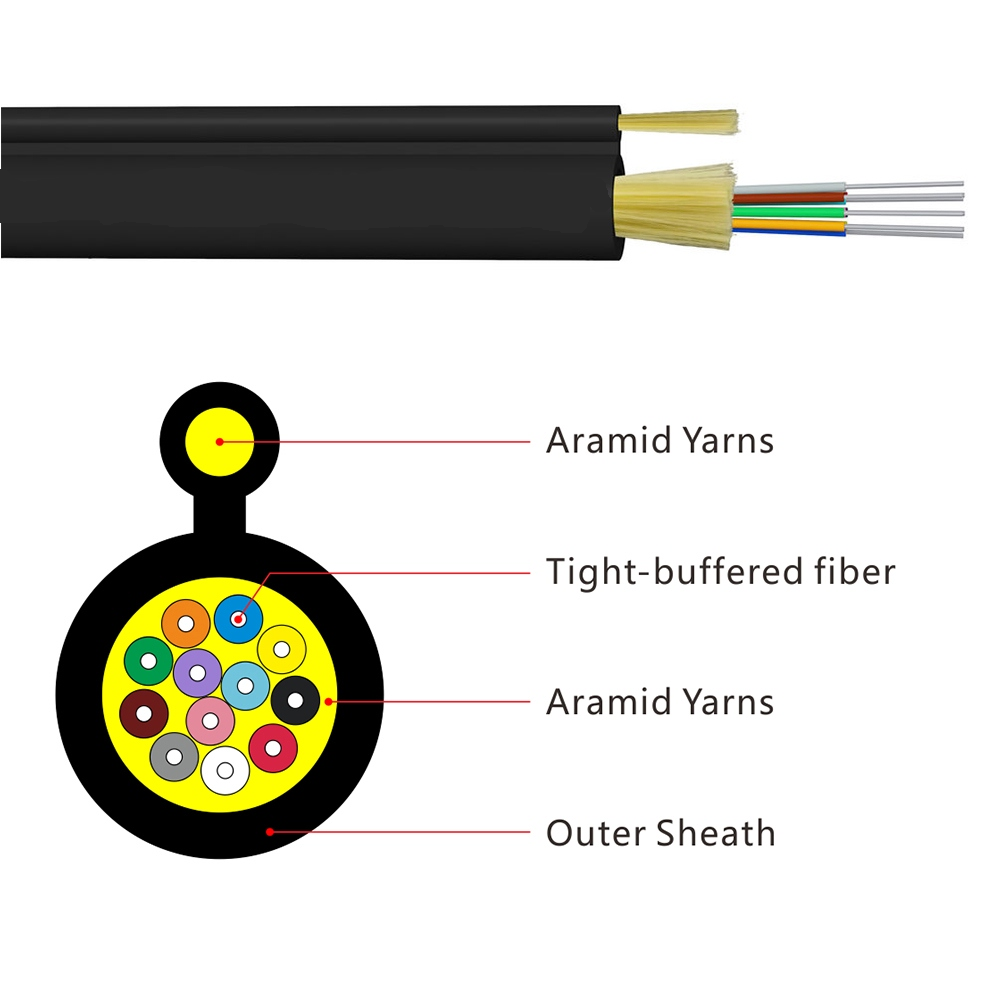

Picture of fiber drop

fiber manufacturers

Features for fiber optic figure 8

·Small diameter, light weight and friendly
·High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance.

Standard of 6 core fiber:

GJYC8H cable complies with Standard YD/T11155-2011,YDT 1770-2008,IEC794 etc.

tight buffer fiber optic cable optical characteristics:



G.652

G.655

50/125μm

62.5/125μm

Attenuation       (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth
     (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength



≤1260nm

≤1480nm





Technical Parameters:

 Cable Type

Fiber Count

Cable Diameter
mm

Cable Weight
      Kg/km

Tensile Strength

  Long/Short Term
N

Crush Resistance

   Long/Short Term
 N/100m


 Bending Radius
             Static/Dynamic mm

GJYC8H

2

3.5×5.5

19

200/400

100/200

30D/15D

GJYC8H

4

4.0×6.0

26

200/400

100/200

30D/15D

GJYC8H

6

5.0×7.0

30

200/400

100/200

30D/15D

GJYC8H

8

6.0×9.0

32

200/400

100/200

30D/15D

GJYC8H

12

6.5×9.5

40

200/400

100/200

30D/15D

·Storage/Operating temperature:-20℃~﹢60℃

Packing and Marking:

  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3,000m±2%; as required
  • 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
  • Manufacturing year and month Roll—direction arrow;
  • Drum length; Gross/net weight;
  •
Packing
