GYFTC8A Aerial Self-supporting Armored Optical Fiber Cable

GYFTC8A Aerial Self-supporting Armored Optical Fiber Cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYFTC8S/GYFTC8A

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Overhead aerial install

Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4

No. Of Fiber: 2-288 Cores

Outer Sheath: PE LSZH HDPE

Keyword: Fiber Optic Cable

Max Crush Resistance: 1000/300

Armored: Aluminium tape/Steel Tape

Installation Tensile: 7000N

Messenger: Stranded steel wire

Product Name: Fig 8 fiber cable

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool

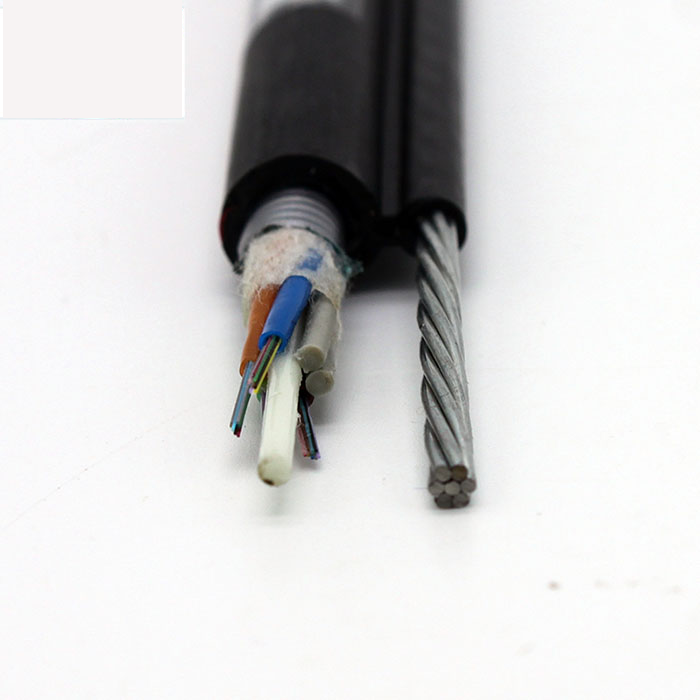

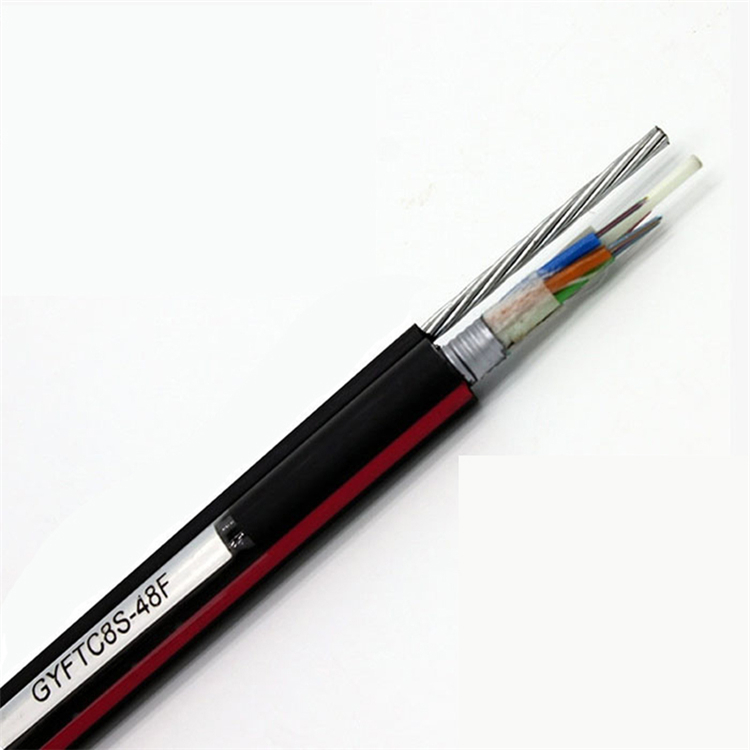

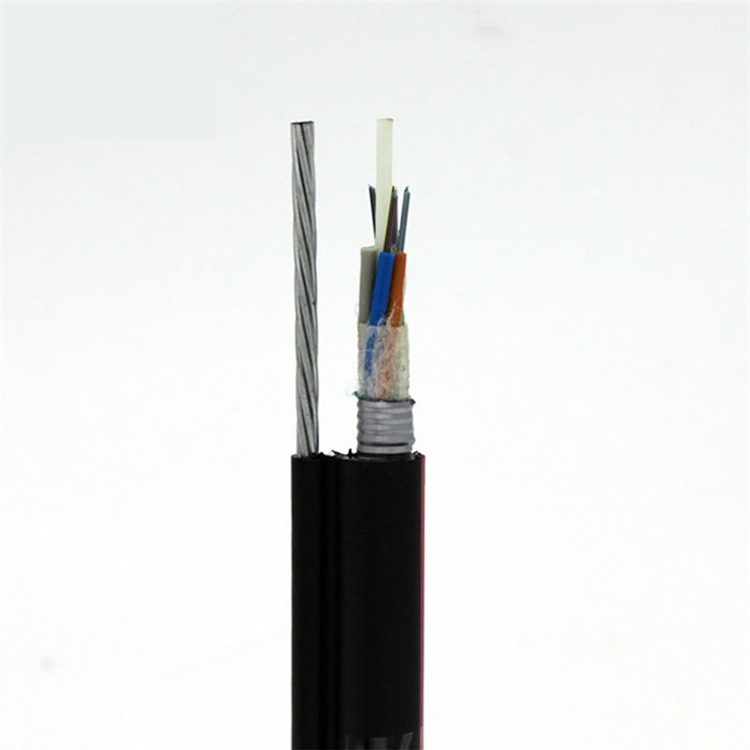

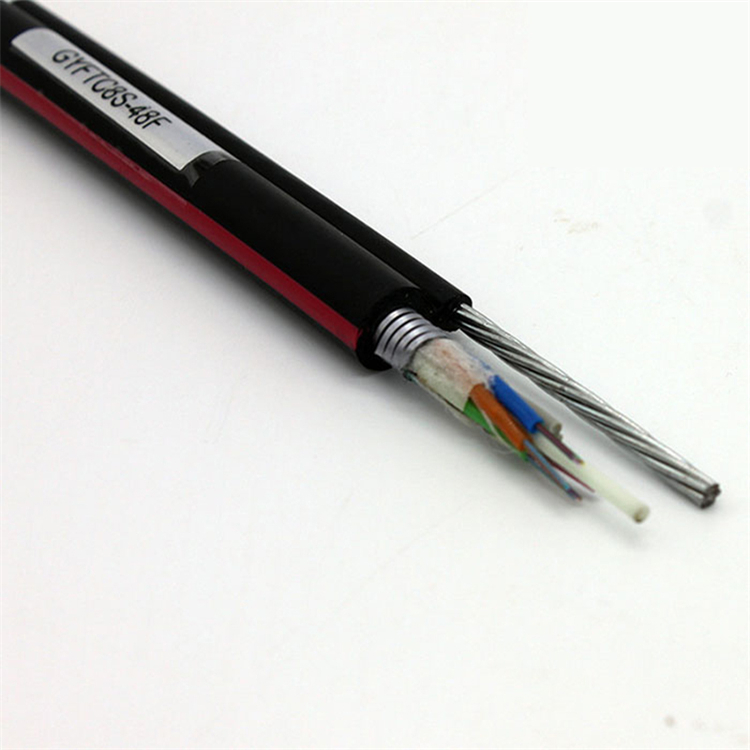

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

GYFTC8A Aerial Self-supporting Armored optical fiber cable

Description:

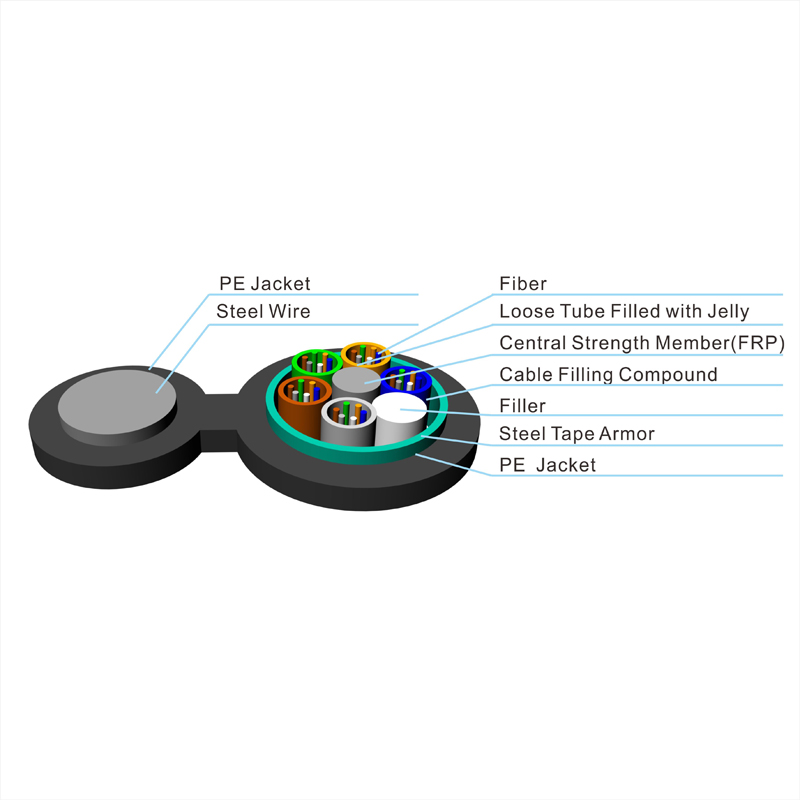

The GYFTC8A cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a non-metallic reinforcing core, and the loose tube (and the filling rope) is twisted around the central reinforcing core into a compact and round core. The core is longitudinally wrapped with a plastic coated aluminum strip (APL), and the strand is integrated into an 8-shaped polyethylene sheath to form a cable.Please inquiry us for optical fiber 2 core and 6 fiber cable

Product Name:aerial cable fiber optic,fiber aerial cable,figure 8 fiber optic cable,self supporting aerial fiber cable,self supporting fiber,self supporting cable

Figure 8 Aerial Fiber Optic Cable Parameter:

Item	Value
Model Number	GYFTC8A
Type	Fiber Optic Cable
Place of Origin	China
	Guangdong
Brand Name	OEM or As per your request
Number of Conductors	≥ 10
Certification	RoHS, ce
Place of Origin	ShenZhen,China
Model number	GYFTC8A
Application	Aerial,self-supporting
Certification	CE/ROHS/ISO9001
Jacket	PE LSZH PVC
Length	Customized
Fiber type	Singlemode,Multimode
Fiber count	2-144 Cores
Strength member	FRP
Package	Wooden drum

Product Standards:

The GYFTC8A fiber optic cable complies with YD/T 1155 and IEC 60794-1 standards.

singlemode fiber optic cable features:

• Steel wire strands have high tensile strength for easy self-supporting overhead laying and reduce installation costs
• Fiber optic cable has good mechanical and temperature properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special grease to protect the fiber
• The following measures are taken to ensure the waterproof performance of the cable:
• Single FRP center reinforcement core
• The loose tube is filled with special waterproof compound
• Full core filling
• Plastic coated aluminum tape (APL) moisture barrier

Packing and Marking of os2 fiber optic cable:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
