Product Attributes

Model No.: GYXTC8S

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Overhead aerial install

Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4

No. Of Fiber: 2-288 Cores

Outer Sheath: PE LSZH HDPE

Keyword: Fiber Optic Cable

Max Crush Resistance: 1000/300

Armored: Aluminium tape/Steel Tape

Installation Tensile: 7000N

Messenger: Stranded steel wire

Product Name: Fig 8 fiber cable

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

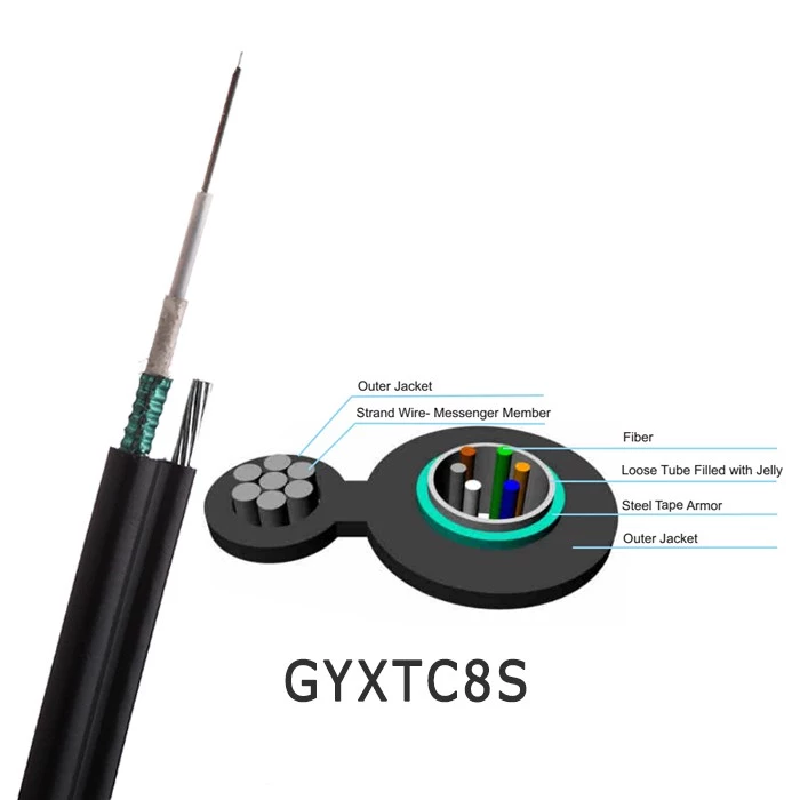

Figure 8 aerial self support fiber optic cable GYXTC8S

Figure 8 fiber optic cable GYXTC8S, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices of it. Then. this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Product Name:2 core optical fiber cable price,internet fiber cable price per meter,optical fiber wire price,fiber optic communication cable,fiber price per meter,fiber cable cost per meter

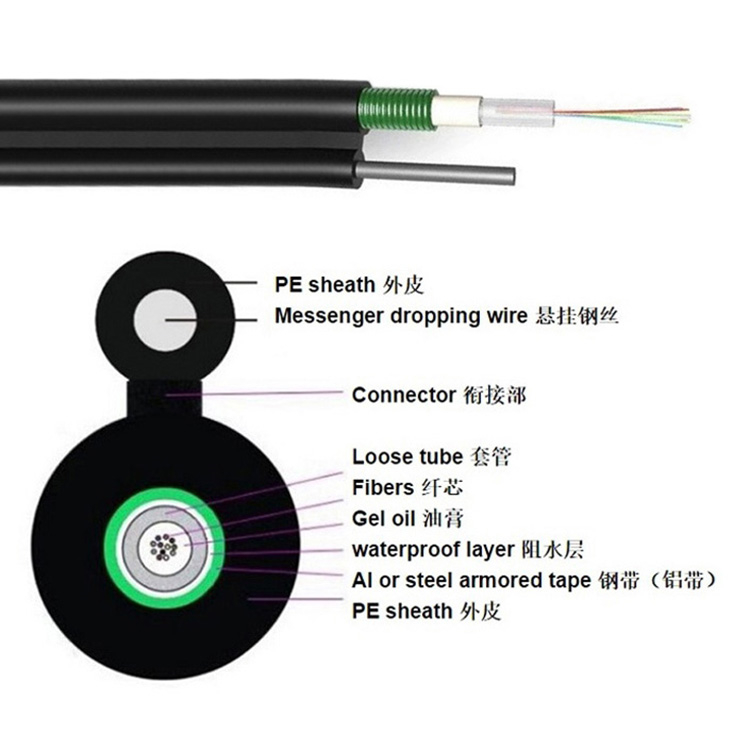

Cable Cross Section:

Technical Parameters:

Cable Type (Increased by 2fibers)	Fiber Count	Max. Fibers in Tubes	Cable Weight kg/km	Cable Diameter mm	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
GYXTC8S 2 ~ 8	2 ~ 8	8	117.0	8.1 x 16.9	2000/6000	300/1000
GYXTC8S 10 ~ 12	10 ~ 12	12	121.0	8.3 x 17.0	2000/6000	300/1000

Note:
1.Figure-8 Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

Feature

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Specially designed compact structure is good at preventing loose tubes from shrinking
·PE sheath protects cable from ultraviolet radiation
·Good crush tolerance,applies for duct and directly buried distribution

Ideal Solution by Using Figure 8 Self-supporting Cable

As the common see self-supporting aerial cables, figure 8 self-supporting Aerial Fiber Optic Cable are designed for easy and economical one-step installation and widely used in long haul and building network communication.

Application: Self supporting Aerial
1.High performance optical network operating.
2.High speed optical routes in buildings (FTTX).
3.All types of fiber cables with different structures.

Temperature Range:
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Characteristic:
1.Excellent mechanical and temperature performance.
2.Critical protection to fibers.

Standards:
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
