Figure 8 Drop FTTH Fiber Optic Cable Price

Figure 8 Drop FTTH Fiber Optic Cable Price

Payment Type:	L/C,T/T,Paypal,others
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJYC8H

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Fiber Type: G652D ,G657A ,G657A2

Fiber Count: 1-12Fibers

Cable Structure: Self-support tight buffe

Messenger Member: Steel wire

Strength Member: aramid yarns

Application: Outdoor aerial

Material Of Jacket: UV and Flame resistant LSZH

Installation Tensile: 1200N

Certificate: ISO9001,ROHS,CE

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden drum ,iron-wooden drum with fumigated or not
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

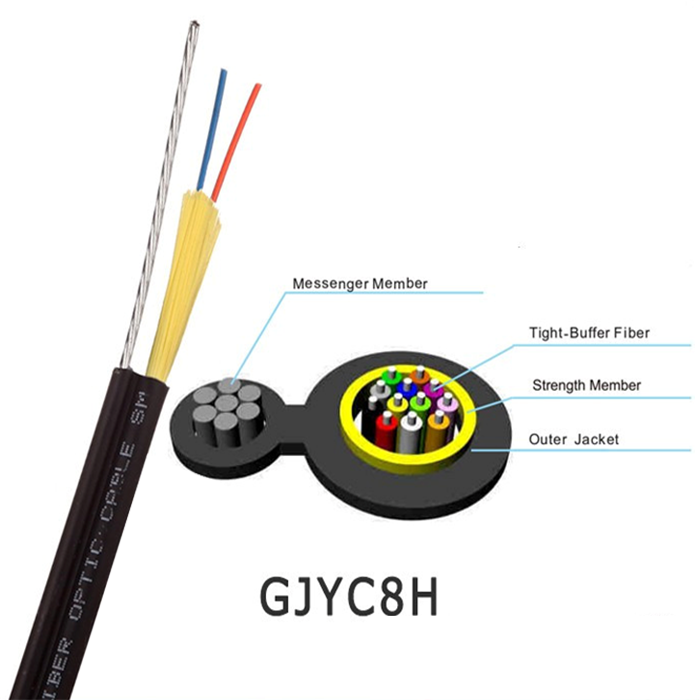

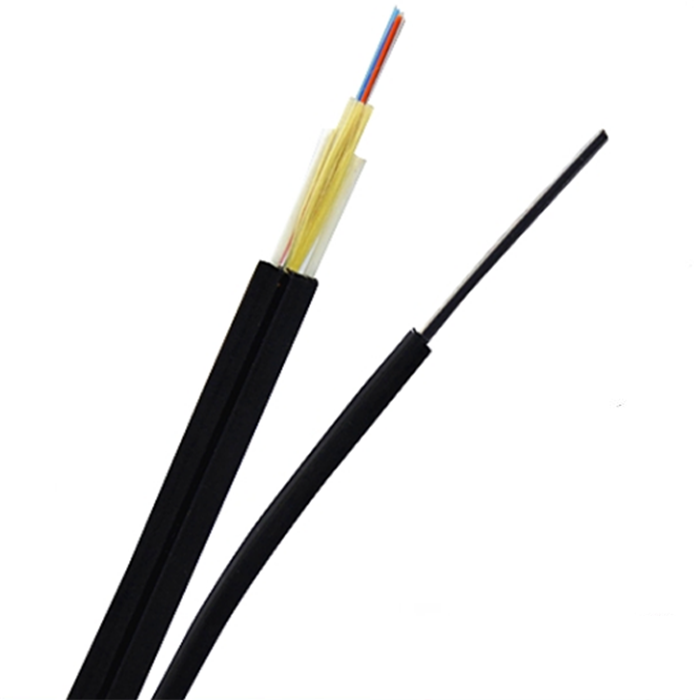

Outdoor Aerial figure 8 Tight Buffer FTTH fiber drop Cable

The cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is fig 8 made with a steel wire strength member.

The type of this fiber with single mode or multimode with a loose tube which is made of high modulus plastic.There is used an aramid yarn for filling. The center used a steel wire locates as a metallic strength member for some cable, a steel wire sometimes sheathed with polyethylene .the tubes (and filers) is stranded around the strength member into a compact and circular cable core.double side’s chromium for PSP with PE as sheath .by single or double wire for installation, also with PE for outer sheath.

Product Name:fiber optic figure 8,testing fiber optic cable,drop cable price,cable figure 8,figure 8 fiber,fiber optic factory

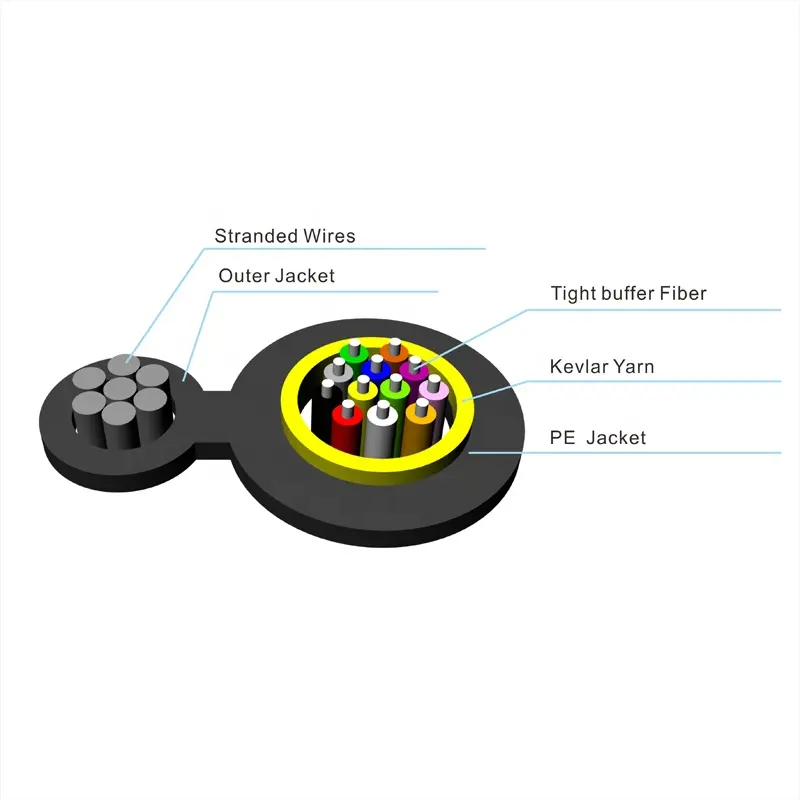

Cable Cross Section:

Fiber:
1-12fibers
900µm tight buffer

Strength Member:
Aramid yarn

Messenger Member:
Steel wire or non-metallic member.

Outer Jacket:
UV and Flame resistant LSZH
FiberType: G.652D, G.657A1 or G.657A2 single mode fiber

Characteristics:

1.Good UV and flame resistant.
2.Figure 8, tight-buffer design
3.Compact, soft, flexible, easy to install
4.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
5.Single steel wire or massagers as the additional strength member ensure good performance of tensile strength.
6.Simple structure, light weight, and high practicability;
7.Novel flute design, easily strip and splice, simplify the installation and maintenance;
8.Low smoke, zero halogens, and flame retardant sheath
9.Subcable flame-retardant jacket;
10.Excellent stripping performance of tight buffer fiber;
11.Suited to SM fiber and MM fiber (9μm, 50μm, and 62.5μm).

Optical Characteristics:

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Technique Parameters:

Fiber Count	Norminal Diameter	Norminal Weight	Allowable Tensile Load		Allowable Crush Resistance
	(mm)	(kg/km)	(N)		(N/100mm)
			Short Term	Long Term	Short Term	Long Term
2-12	6.0*2.8	27	600	300	1000	500

Note :This datasheet can only be a reference ,but not the supplement to the contract, Please contact our sales for more information.

Application:

Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance	IEC 60794–1-2-E
Max. Operation Tension	IEC 60794–1-2-E1
Crush Test	IEC 6079 –1-2-E3
Impact Test	IEC 60794–1-2-E4
Repeated Bending	IEC 60794–1-2-E6
Torsion Test	IEC 60794–1-2-E7
Cable bend	IEC 60794–1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794–1-2-F1
Water Penetration	IEC 60794–1–2-F5B
Filing Compound Flow	IEC 60794-1-E14

Packing:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
