transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector
transparent straight push fit micro duct microduct connector

transparent straight push fit micro duct microduct connector

Payment Type:L/C,T/T,Paypal,others,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:10 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.12/10mm

BrandOEM

Place Of OriginChina

UseMicroduct connection

Warranty Time12 months

IP RateIP68

Temp Resistance-20~ +50℃

BodyPolycarbonate

SealNBR

WasherPolyacetal

Lock ClawsPolyacetal

Tube AssemblyNo tooling required

According To StandardsCEI EN 50411-2-8,EN 50411-2-5

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Carton or Customized

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

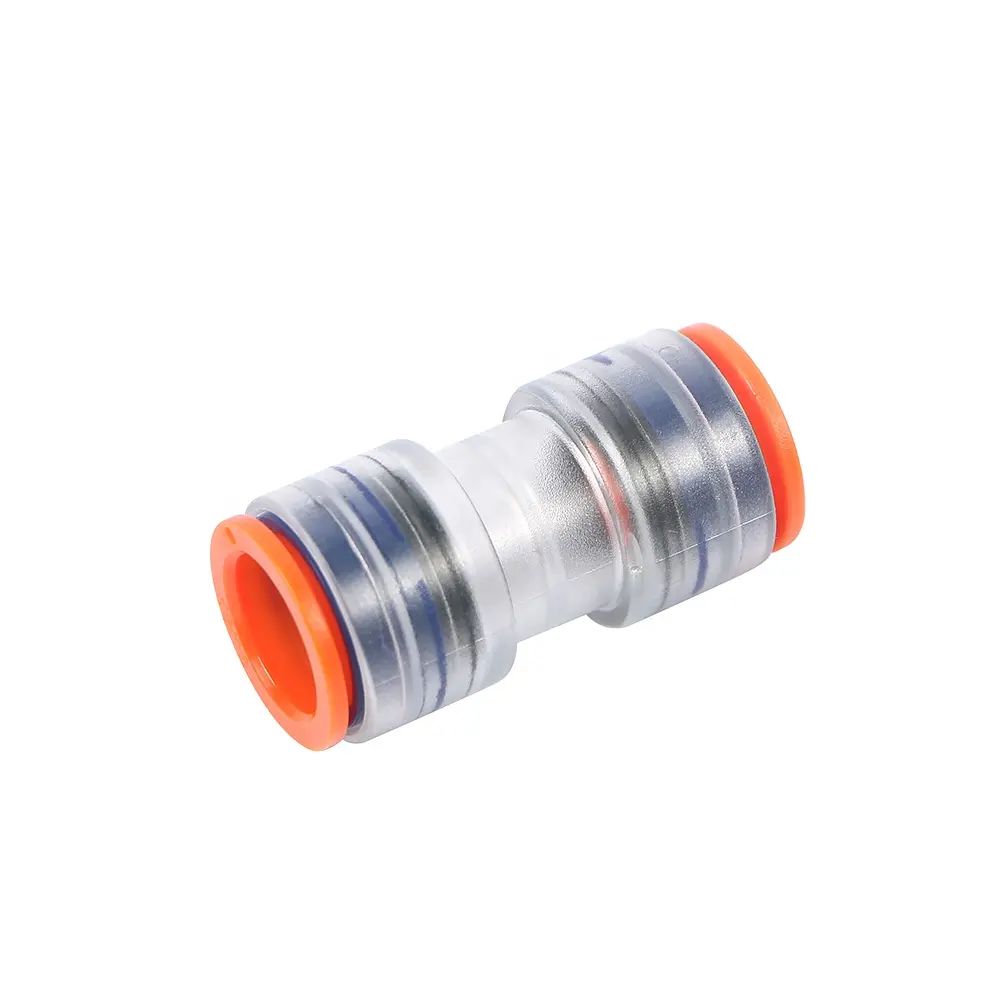

Transparent straight push fit micro duct Microduct Connector

Overview for microduct coupler

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.

Product Name:push fit microduct connector,microduct straight connector,transparent micro duct connector

Tube to connector
Polyethylene HDPE
Fluid
Air with blowing system
Working Pressure
20 bar
MAX. Pressure
28 bar
Userful life
25 years
Tube assembly
No tooling required
Water ingress test
0.5 bar during 168 hours
Working temperature
-45℃/+50℃
Transport and storage temperature
-10℃/+50℃
Installation temperature
-10℃/+50℃
Recommended blowing temperature
-15℃/+35℃
Outdoor exposure limit @Cetral Europe
12 months
Protection class
IP68
High pressure resistance(safety)
>50bar
According to Standards
CEI EN 50411-2-8,EN 50411-2-5
Related documents
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003
Related documents
ISO 3601,ISO 4397:1993(2000),ISO4399:1995
Model
D1
D2
A1
A2
B
L
Weight(g)
ERPU3/2.1
3
3


2.1±0.12


ERPU4/2.5
4
4


2.5±0.12


ERPU5/3.5
5
5
13.5±0.2
13.5±0.2
3.5±0.12
35.8±0.5
3.6±0.1
ERPU6/3.5
6
6
13.5±0.2
13.5±0.2
3.5±0.12
35.8±0.5
3.6±0.1
ERPU7/5.5
7
7
15.2±0.2
15.2±0.2
5.5±0.12
41.2±0.5
5.4±0.1
ERPU8/6
8
8
15.2±0.2
15.2±0.2
6±0.12
41.2±0.5
4.7±0.1
ERPU8.5/6
8.5
8.5
15.2±0.2
15.2±0.2
6±0.12
41.2±0.5
4.7±0.1
ERPU10/8
10
10
17.5±0.2
17.5±0.2
8±0.12
45.2±0.5
6.7±0.1
ERPU12/10
12
12
21.5±0.2
21.5±0.2
10±0.12
52.2±0.5
11.8±0.1
ERPU14/11
14
14
23.5±0.2
23.5±0.2
11±0.12
52.2±0.5
12.95±0.1
ERPU14/12
14
14
23.5±0.2
23.5±0.2
12±0.12
52.2±0.5
12.85±0.1
ERPU15/12
15
15
25.3±0.2
25.3±0.2
12±0.12
52.2±0.5
14.6±0.2
ERPU16/14
16
16
25.3±0.2
25.3±0.2
14±0.12
52.2±0.5
14.5±0.2
ERPU18/15
18
18
32.7±0.3
32.7±0.3
15±0.12
55.9±0.5
29.8±0.2
ERPU20/17
20
20
32.7±0.3
32.7±0.3
17±0.12
55.9±0.5
27.8±0.2
ERPU25/22
25
25


22±0.12


ERPU1/8(2.1)
1/8
1/8


2.1±0.12


ERPU3/16(3.5)
3/16
3/16
13.5±0.2
13.5±0.2
3.5±0.12
35.8±0.5
3.6±0.1
ERPU1/4(3.5)
1/4
1/4
13.5±0.2
13.5±0.2
3.5±0.12
35.8±0.5
3.6±0.1
ERPU5/16(6)
5/16
5/16
15.2±0.2
15.2±0.2
6±0.12
41.2±0.5
5.4±0.1
ERPU3/8(8)
3/8
3/8
17.5±0.2
17.5±0.2
8±0.12
45.2±0.5
6.7±0.1
ERPU1/2(10)
1/2
1/2
21.5±0.2
21.5±0.2
10±0.12
52.2±0.5
11.8±0.1

straight micro duct connectorair blown cable connector

Sraight microduct coupler advantages

For 3-25 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Supply Ability & Additional Information

PackagingCarton or Customized

Productivity10000 Piece/Pieces per Week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability10000 Piece/Pieces per Week

CertificateISO,ROHS

HS Code3917400000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others,Cash

IncotermFOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
