HDPE transparent straight coupler microduct connector

HDPE transparent straight coupler microduct connector

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	10 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: BRE5-3

Brand: OEM

Place Of Origin: China

Use: Microduct connection

Warranty Time: 12 months

IP Rate: IP68

Temp Resistance: -20~ +50℃

Body: Polycarbonate

Seal: NBR

Washer: Polyacetal

Lock Claws: Polyacetal

Tube Assembly: No tooling required

According To Standards: CEI EN 50411-2-8,EN 50411-2-5

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Carton or Customized

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Push-fit HDPE transparent straight coupler Microduct Connector

Product Description for microduct coupler:

Microduct reducer connectors are used to connect microducts of different diameters. Locking clips secure the connectors after installation Connectors can be removed from the microduct after removal of the locking clip. Snap-in microduct gasblock reducer connectors are used to provide a gas block connection of different microduct diameters at the entrance of cabinets or boxes. The snap-in part clicks into the wall of the cabinet or box.

For installation directly into the ground, use versions with external cover.The connectors are tested for best functionality in combination with the air blown fibers, nano cables and micro cables.

Product Name:microduct connector,Micro Duct Connector,HDPE transparent coupler

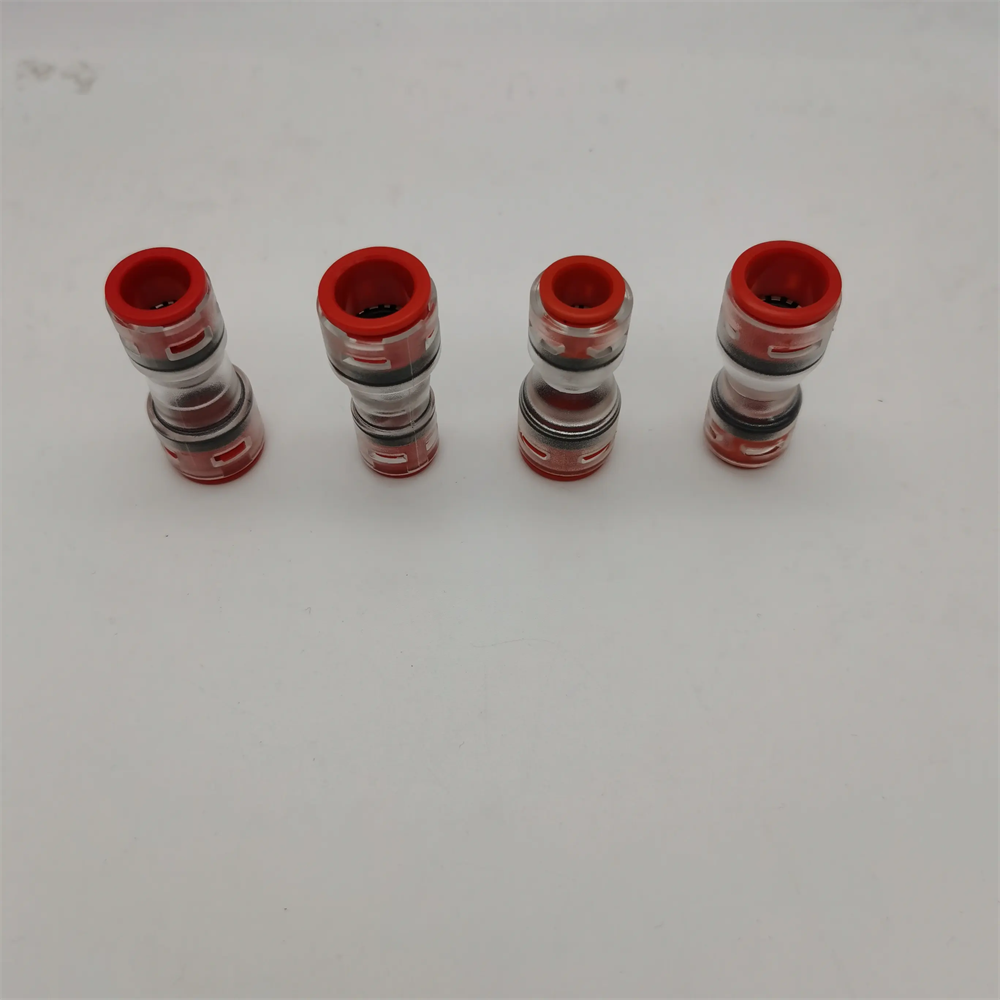

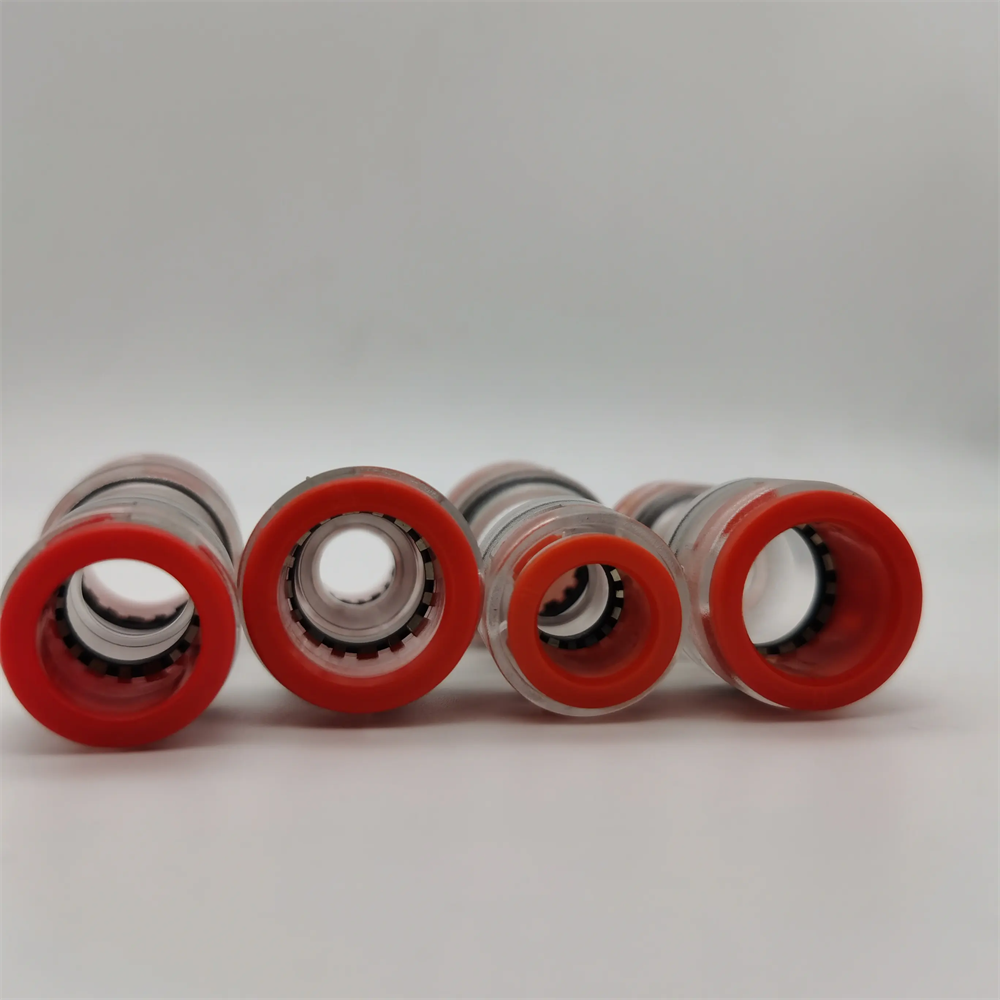

Product Picture for microduct straight coupler:

Specification

item	value
Model Number	BRE5-3
Type	Microduct Reducer Connector
Place of Origin	China
	Guangdong
Brand Name	GTOC
Use	FTTX
Warranty Time	12 Months
IP rate	IP68
Pressure Resistance	16 bar
Temp Resistance	-20~ +50℃

Material
Body:	polycarbonate	Seal:	NBR
Washer:	polyacetal	Lock Claws:	SUS
Collar:	polyacetal	Sleeve:	polyacetal

Sizes & Specifications
Size	Microduct OD, mm
BRE5-3/2.1mm	5-3(2.1)Clear Reducer
BRE8-3/2.1mm	8-3(2.1)Clear Reducer
BRE7-4+DBC	7-4mm Clear Reducer
BRE7-5/3.5mm	7-5(3.5)Clear Reducer
BRE8-5/3.5mm	8-5(3.5)Clear Reducer
BRE10-5/3.5mm	10-5/3.5mm
BRE10-7/5.5mm	10-7(5.5)Clear Reducer
BRE10-8/5.5mm	10-8(5.5)Clear Reducer
BRE12-5mm	12-5mm Clear Reducer
BRE12-7/5.5mm	12-7(5.5)Clear Reducer
BRE12-8/6mm	12-8/6mm
BRE12-10/8mm	12-10(8)Clear Reducer
BRE12.7-8/6mm	12.7-8/6mm
BRE12.7-10/8mm	12.7-10/8mm
BRE14-8/6mm	14-8/6mm
BRE14-10/8mm	14-10(8)Clear Reducer
BRE14-12/10mm	14-12(10)Clear Reducer
BRE16-10/8mm	16-10(8)Clear Reducer
BRE16-12/10mm	16-12(10)Clear Reducer
BRE16-14/12mm	16-14/12mm
BRE18-14/10mm	18-14/10mm
BRE18-16/12mm	18-16/12mm
Other sizes are available upon request for customization.

Technical Data
Crush resistance	> 1000 N
Impact resistance	> 5.0 Nm @ radius 300 mm @ -15°C to +20°C
Working pressure	16 bar @ +20°C
Leakage @16 bar	< 1 cc/min
Transport and storage	-10°C to + 50°C
Installation temperature	-10°C to + 50°C
Operating temperature	-20°C to + 60°C
Pressure resistance gasblock connectors	0.5 bar

Application of fiber optic duct connector:

The connectors and end caps for microducts provide a quick, easy and secure connection or water sealing of microducts.

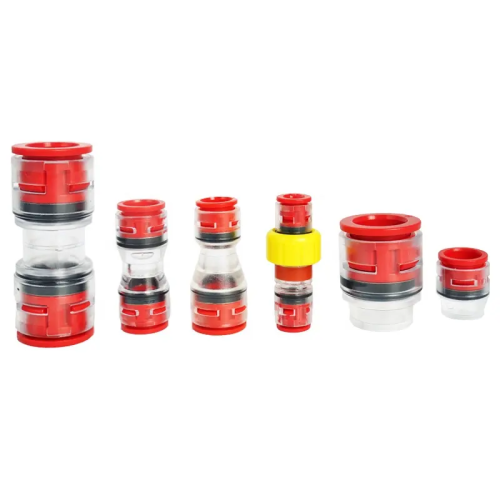

The product comes in three different versions:
* Straight Connectors are used to join sections of microducts
* Reducer Connectors are used to join microducts of different dimensions
* End Stops are used to block open duct ends and prevent water and dirt from entering the microduct

Design for straight microduct coupler:

The design of the connector incorporates pressure tight seals with O-rings and internal steel teeth that prevents accidental separation of the connector from the microduct once installed.Removal of the duct is achieved by pushing the green collet inwards.To increase crush resistance when installed direct buried, an external plastic cover is used. The cover prevent the accidental release of collets during installation and provide protection and impact resistance in use.
