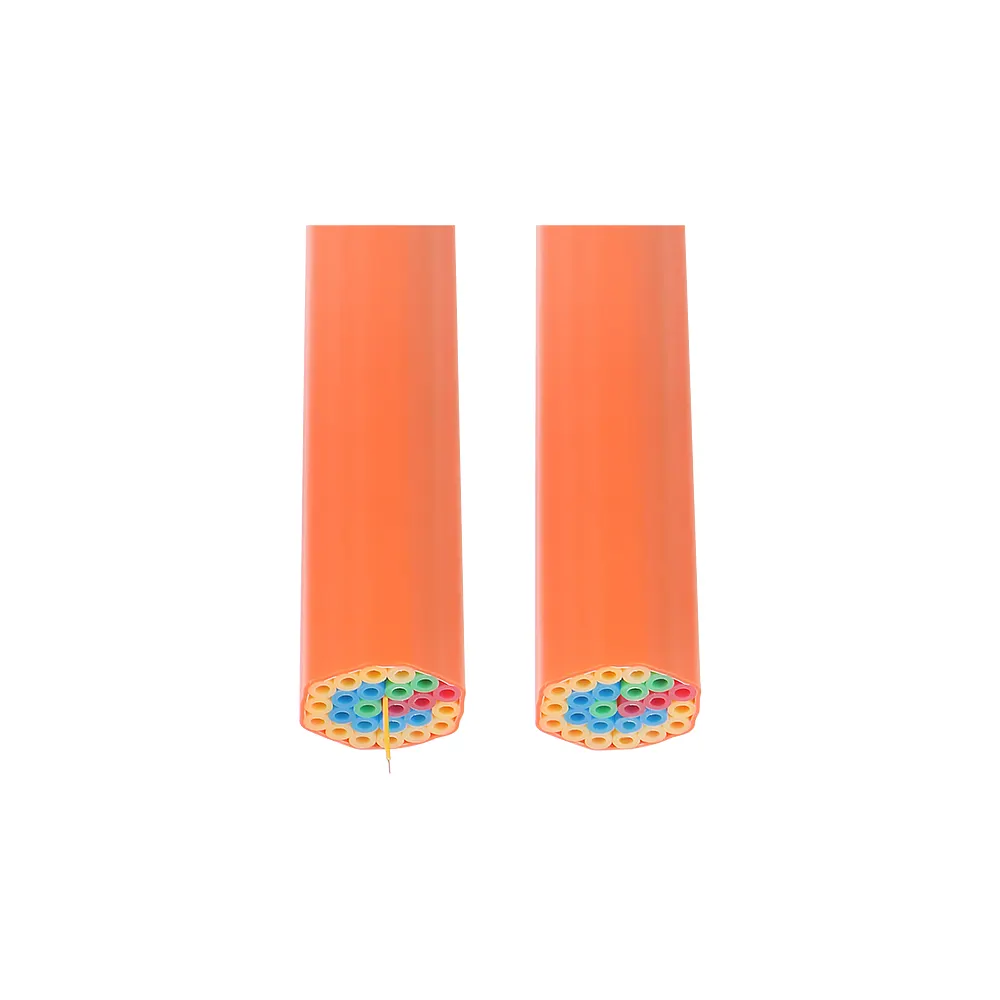

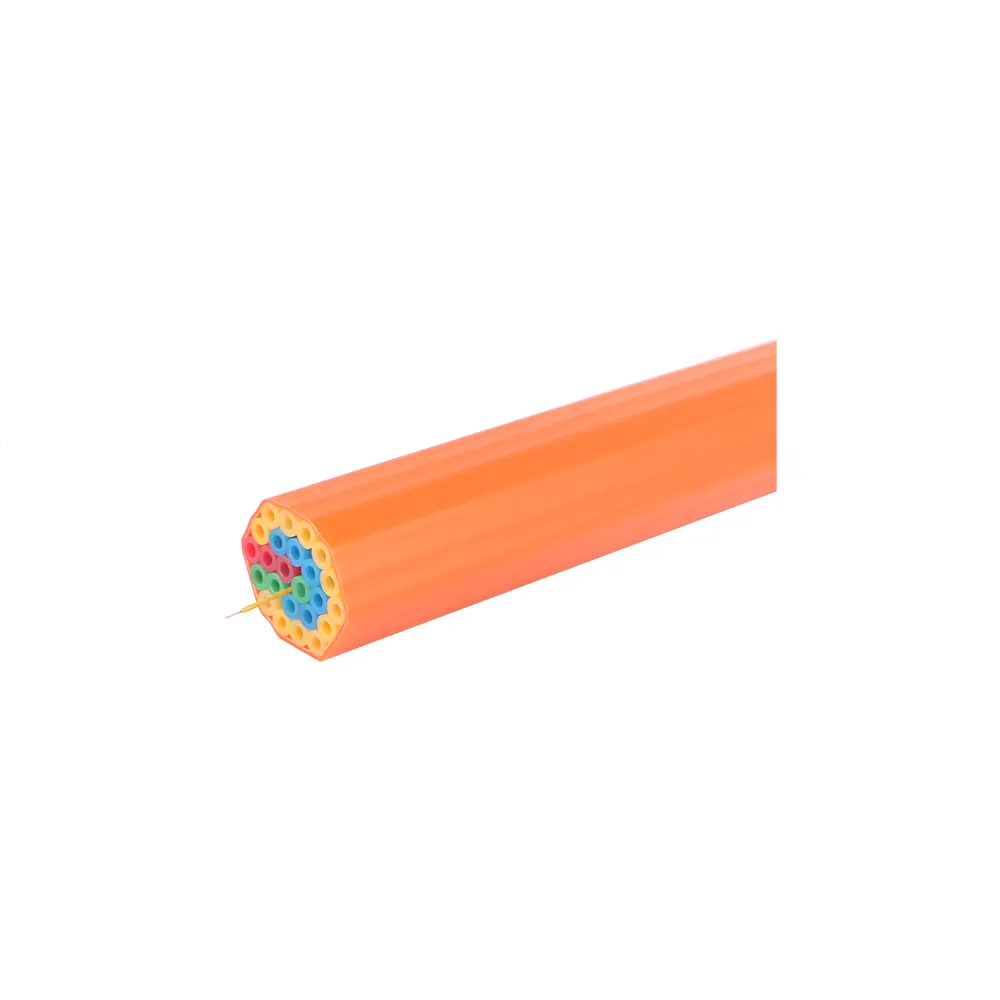

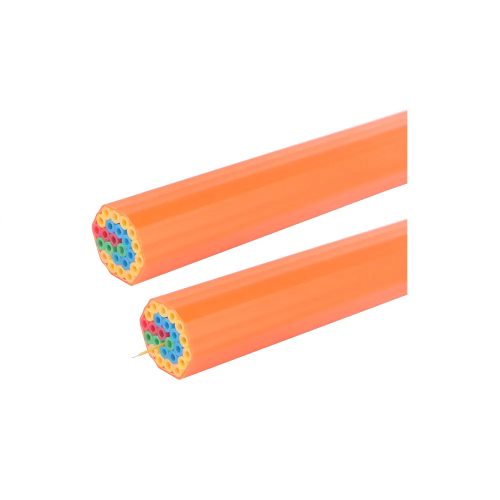

Model No.: 24ways 7/3.5mm DB Tube Bundle
Brand: OEM
Diameter: 16/12 14/10 12/8 10/6mm
Length: customization
Ovality (%, Before Coiled): 5%
Product Name: microduct
Material: HDPE
Processing Service: Extrusion
Color Options: White, red, green, blue Fully colored
Usage: underground installation
Thickness Of Sub-duct: 2.0mm
Thickness Of Sheath: 1.2mm or customized
| Selling Units: | Meter |
| Package Type: | Standard Export Package, Drum length is 2000m or customized |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Physical and Mechanical Properties – Inner Micro duct 7/3.5mm | |||
| 1 | Visual appearance | Visual inspection | Ribbed inside & smooth outside surface, free from blisters, shrink hole, flaking, scratches & roughness. |
| 2 | Outer diameter | FCST | 7.0mm ± 0.1mm |
| 3 | Wall thickness | FCST | 1.50mm ± 0.10mm |
| 4 | Inner diameter clearance | Blowing steel ball | A 3.0mm steel ball can be blown freely through the duct. |
| 5 | Ovality | FCST | ≤ 5% |
| 6 | Pressurization | 5 minutes @16bar each duct | No damage and leakage |
| 7 | Kink | IEC 60794-1-2 Method E10 | ≤ 70mm |
| 8 | Tensile strength | Rate of extension: 100mm/min | ≥ 470N |
| 9 | Crush | Sample length: 250mm Load: 1650N Duration of Max. load: 1 min Recovery time: 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 10 | Impact | IEC 60794-1-2 Method E4 1.0 J Impact, recovery time 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 11 | Heat reversion | 110℃ ～ 23℃, 1 hour | ≤ 3% |
| 12 | Min. bend radius | 84mm | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 13 | Co-efficient of Friction | 750mm Diameter, 450°loop, 5kg mass | ≤ 0.1 |
| 14 | Color and printing | Visual inspection | As per customer specification |
| Pos. | Item | Specification | |
| 1 | Appearance | Smooth outer wall (UV-stabilized) without visible impurities; well-proportioned color, no bubbles or cracks; with defined markings on outer wall. | |
| 2 | Tensile strength | Use Pull socks to tension a sample in accordance with table below: Sample length: 1m Tensile speed: 20mm/min Load: 9000N Duration of the tension: 5 min. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| 3 | Crush Resistance | A 250mm sample after 1 minute load time and 1 hour recovery time. Load (plate) shall be 2500N. The imprint of the plate on the sheath is not considered as mechanical damage. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| 4 | Impact | Striking surface radius shall be 10mm and impact energy 10J. Recovery time shall be one out. The imprint of the striking surface on the microduct is not considered as mechanical damage. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| 5 | Bend | Diameter of mandrel shall be 40X OD of sample, 4 turns, 3 cycles. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
Packaging: Standard Export Package, Drum length is 2000m or customized
Productivity: 600000 Meter/Meters per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 600000 Meter/Meters per Month
Certificate: ISO,ROHS
HS Code: 3917210000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
