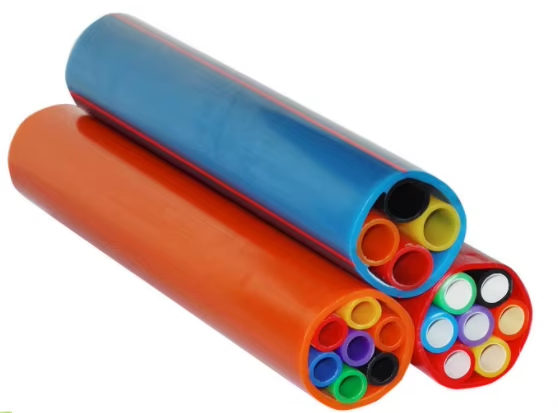

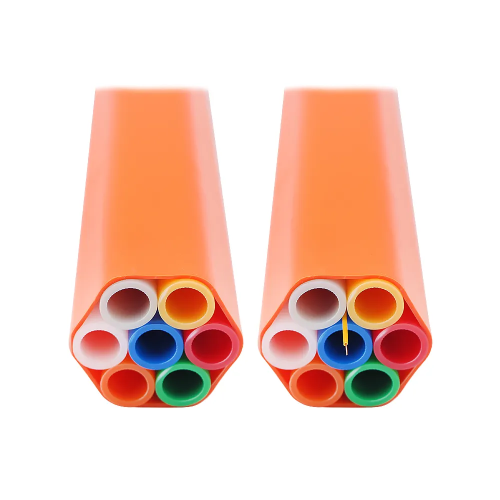

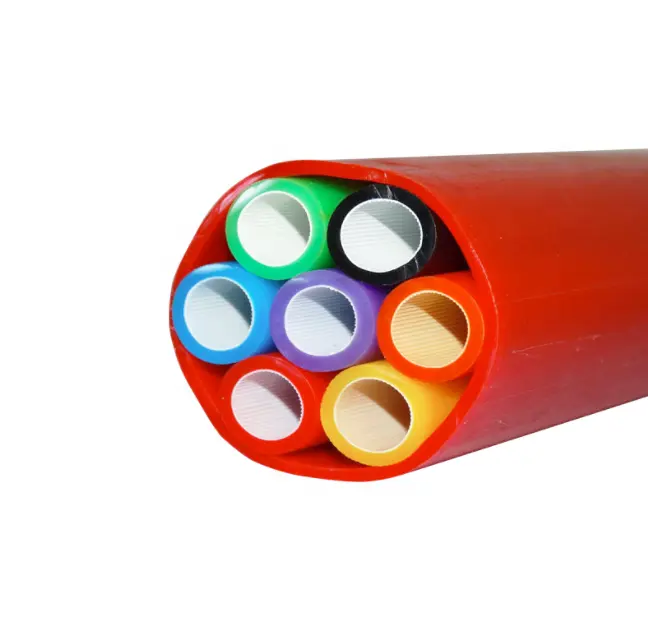

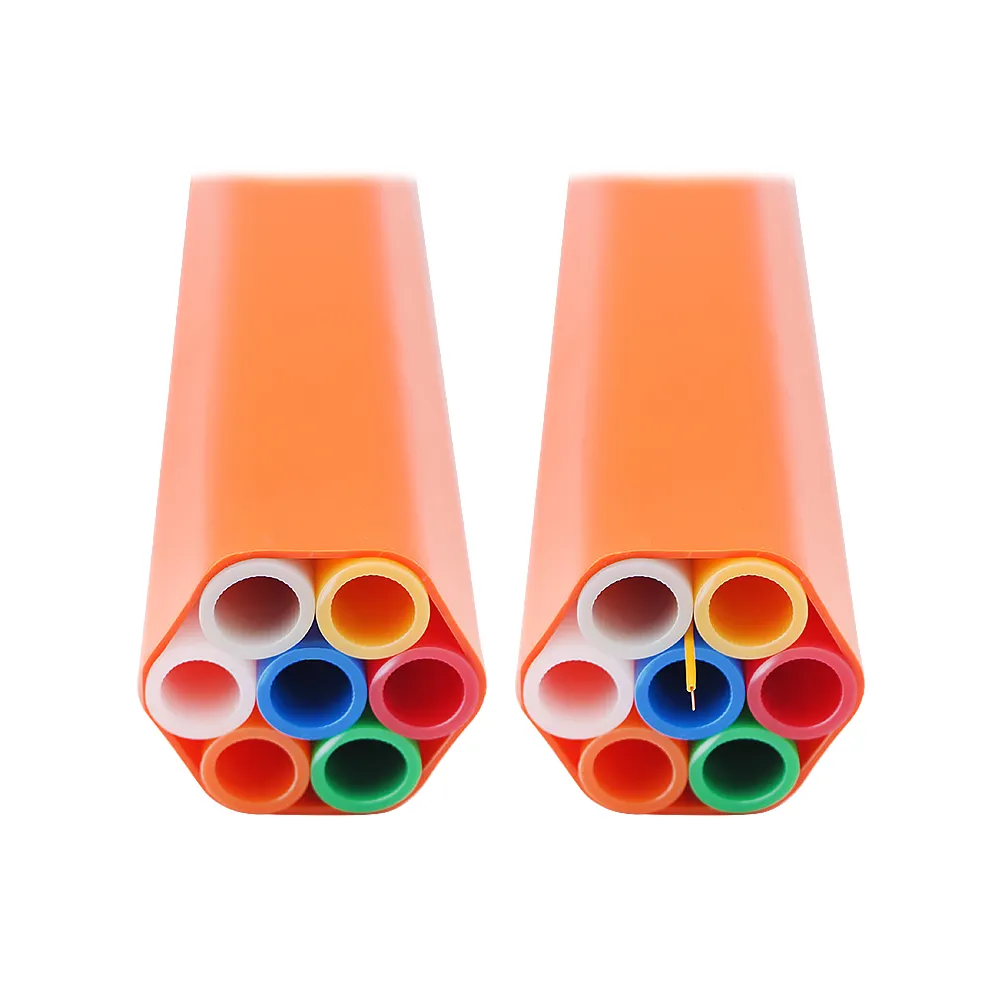

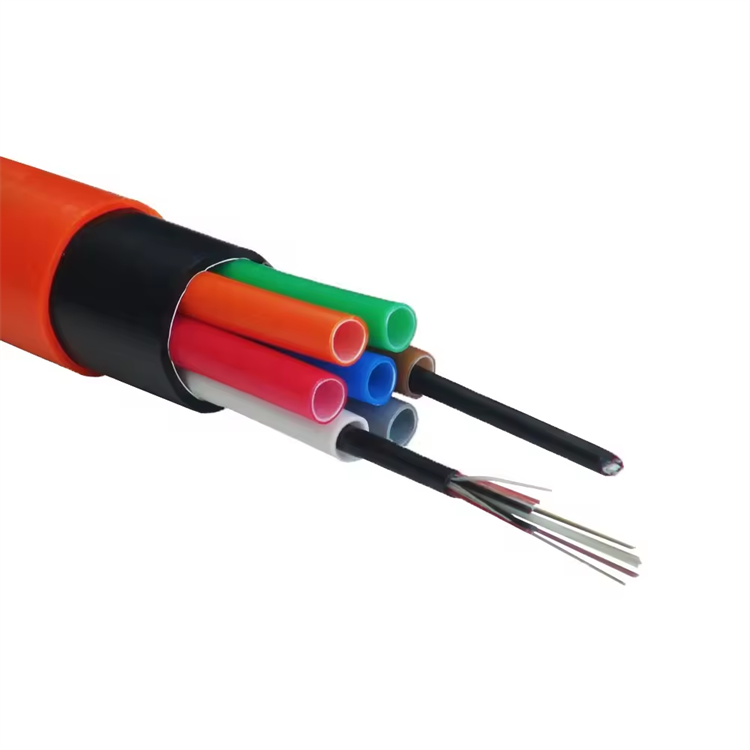

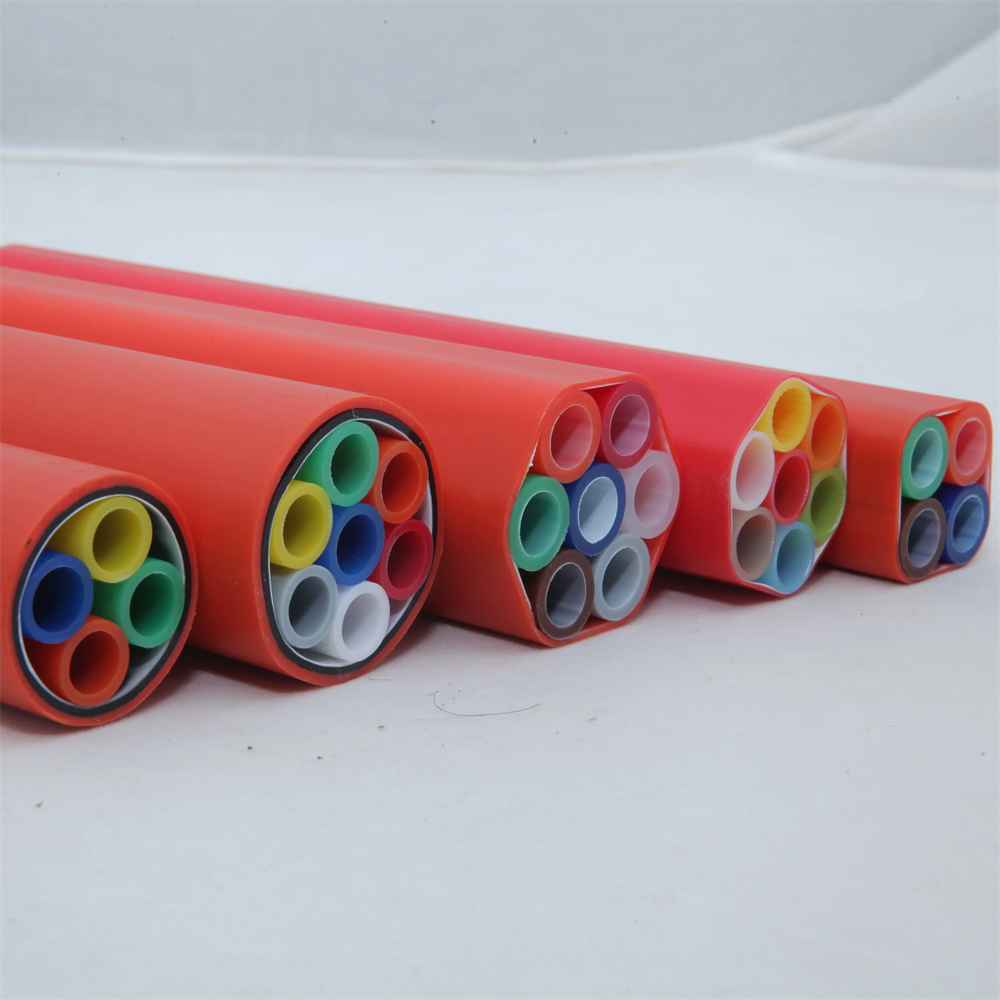

Model No.: 7ways 16/12mm DB Tube Bundle
Brand: OEM
Diameter: 16/12 14/10 12/8 10/6mm
Length: customization
Ovality (%, Before Coiled): 5%
Product Name: microduct
Material: HDPE
Processing Service: Extrusion
Color Options: White, red, green, blue Fully colored

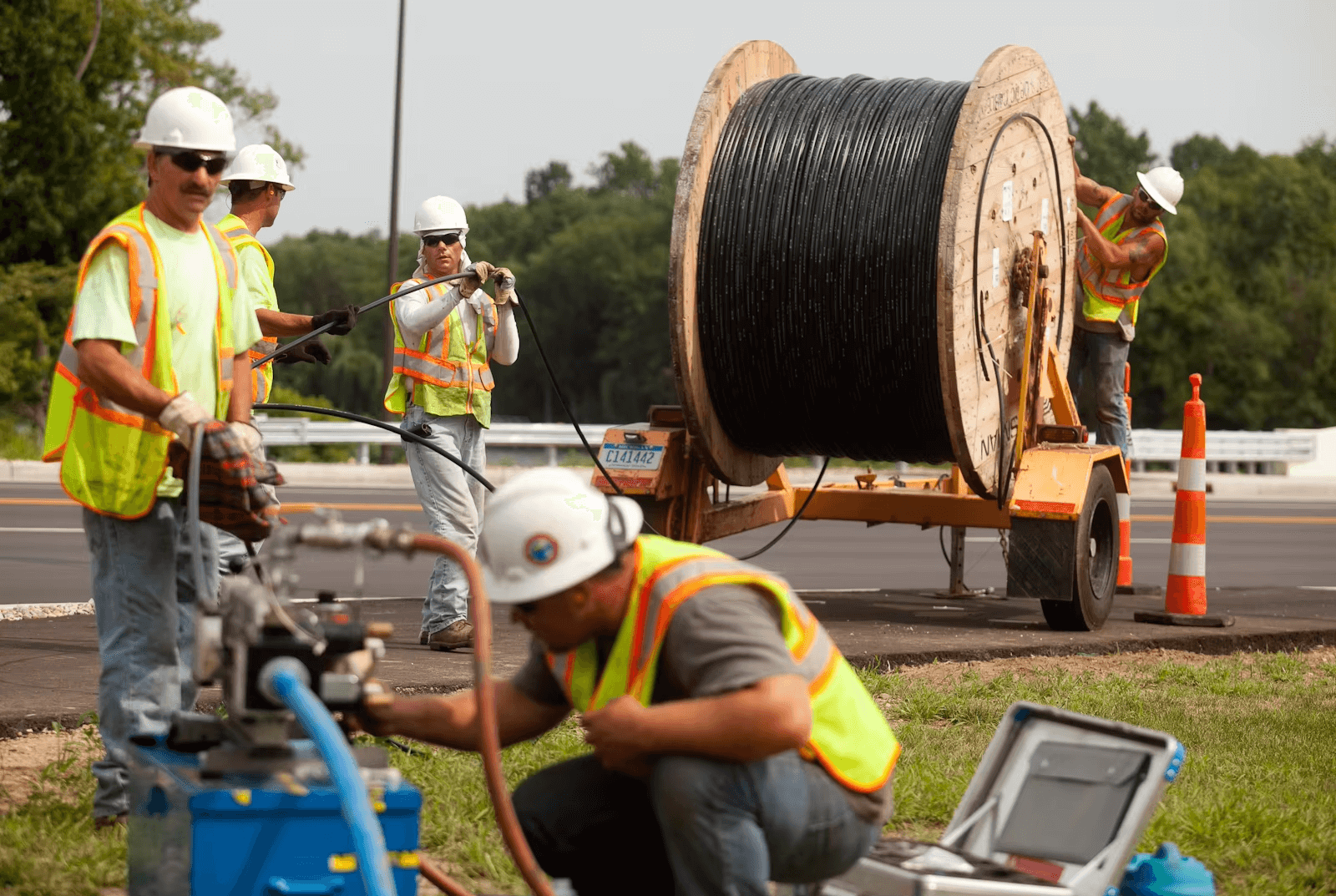

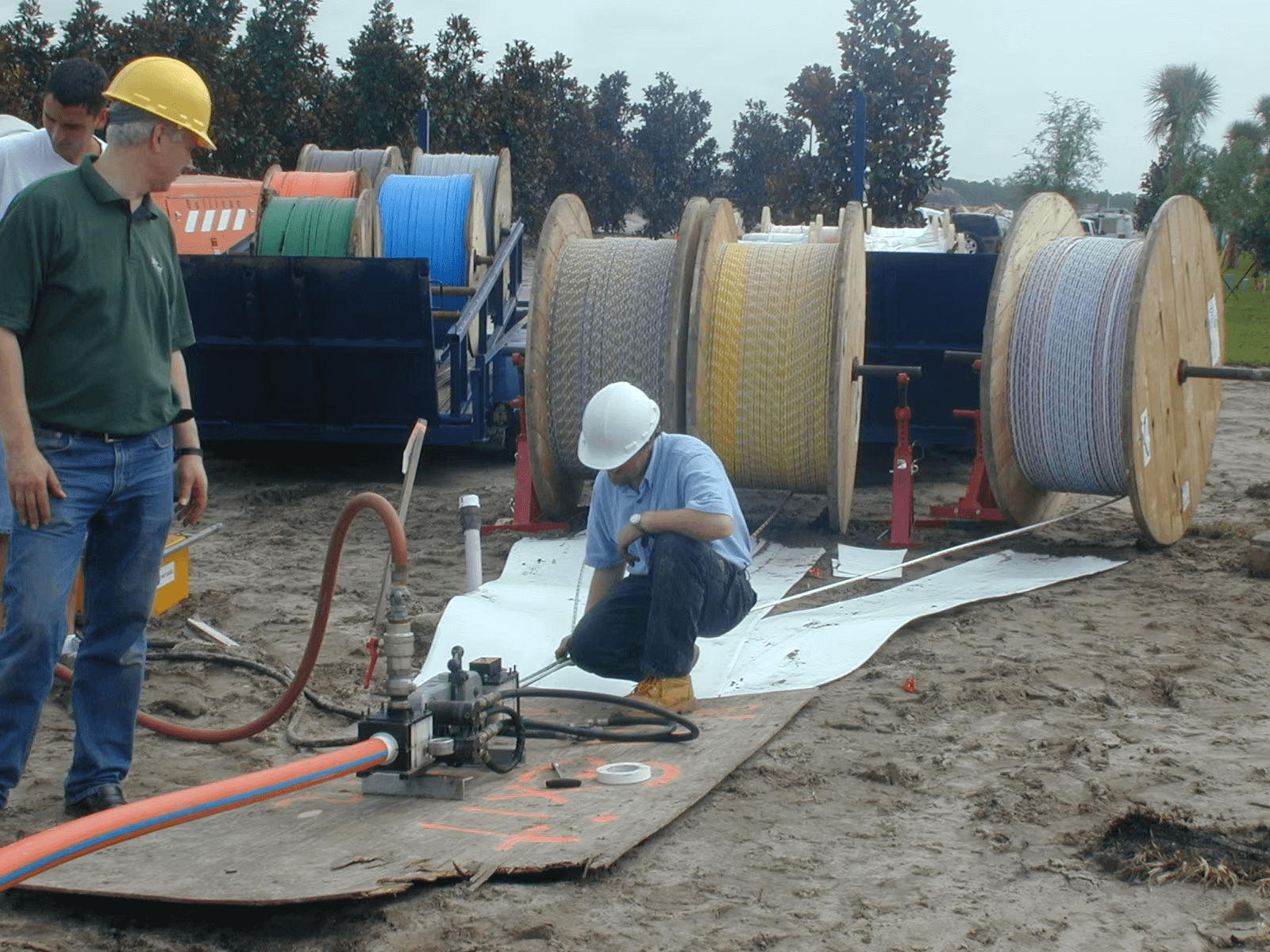

Usage: underground installation
Thickness Of Sub-duct: 2.0mm
Thickness Of Sheath: 1.2mm or customized
| Selling Units: | Meter |
| Package Type: | Standard Export Package, Drum length is 2000m or customized |

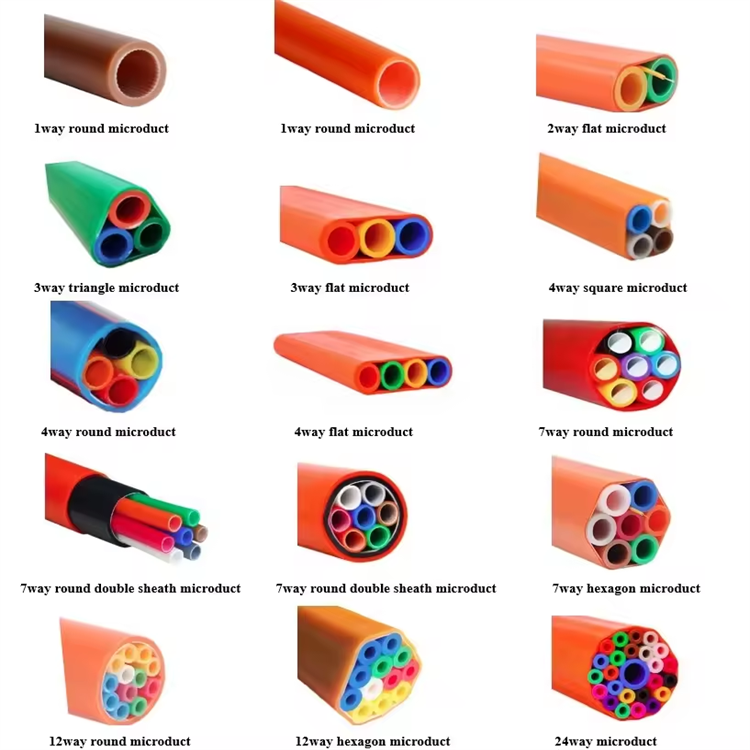

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Pos. | Mechanical performance | Test conditions | Performance | Standard |
| 1 | Tensile strength at yield | Rate of extension: 100mm/min | ≥1600N | IEC 60794-1-2 Method E1 |
| 2 | Crush | Sample length: 250mm Load: 1200N Duration of Max. load: 1 minutes Recovery time: 1 hour | The outer and inner diameter shall show, under visual examination without damage and no reduction of diameter greater than 15%. | IEC 60794-1-2 Method E3 |
| 3 | Kink | ≤160mm | - | IEC 60794-1-2 Method E10 |
| 4 | Impact | Striking surface radius: 10mm Impact Energy: 1J Number of impact: 3 times Recovery time: 1 hour | Under visual examination, there shall be no damage to the micro duct. | IEC 60794-1-2 Method E4 |
| 5 | Bend radius | Number of turns: 5 Mandrel diameter: 192mm Mumber of cycles: 3 | The outer and inner diameter shall show, under visual examination without damage and no reduction of diameter greater than 15%. | IEC 60794-1-2 Method E11 |
| 6 | Friction | / | ≤0.1 | FCST |
| Pos. | Item | Specification | |
| 1 | Appearance | Smooth outer wall (UV-stabilized) without visible impurities; well-proportioned color, no bubbles or cracks; with defined markings on outer wall. | |
| 2 | Tensile strength | Use Pull socks to tension a sample in accordance with table below: Sample length: 1m Tensile speed: 20mm/min Load: 7500N Duration of the tension: 5 min. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| 3 | Crush Resistance | A 250mm sample after 1 minute load time and 1 hour recovery time. Load (plate) shall be 2000N. The imprint of the plate on the sheath is not considered as mechanical damage. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| Pos. | Item | Specification | |
| 4 | Impact | Striking surface radius shall be 10mm and impact energy 10J. Recovery time shall be one out. The imprint of the striking surface on the microduct is not considered as mechanical damage. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |
| 5 | Bend | Diameter of mandrel shall be 40X OD of sample, 4 turns, 3 cycles. | No visual damage or residual deformation greater than 15% of the duct assembly outer diameter. |

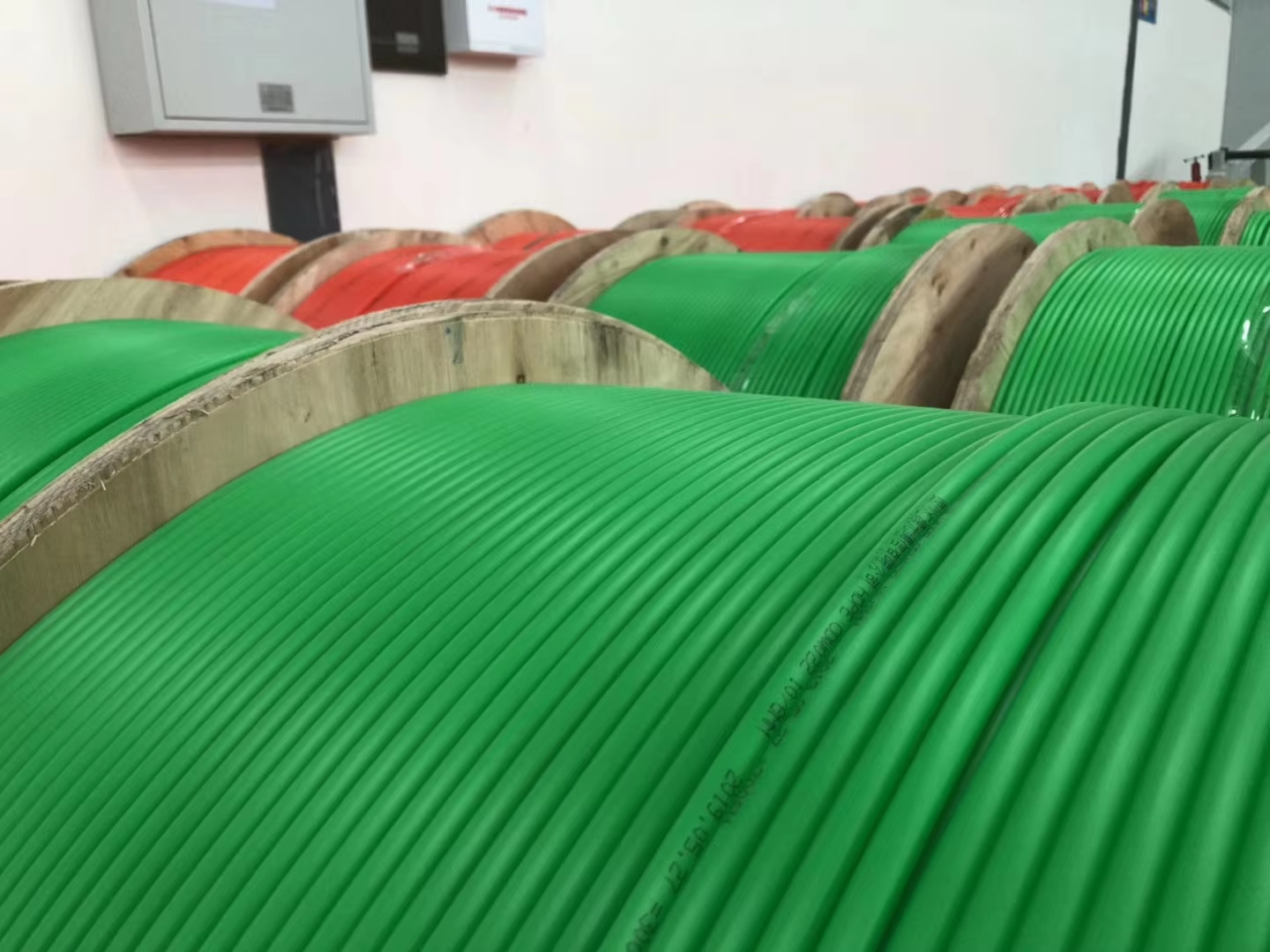

Packaging: Standard Export Package, Drum length is 2000m or customized
Productivity: 600000 Meter/Meters per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 600000 Meter/Meters per Month
Certificate: ISO,ROHS
HS Code: 3917210000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
