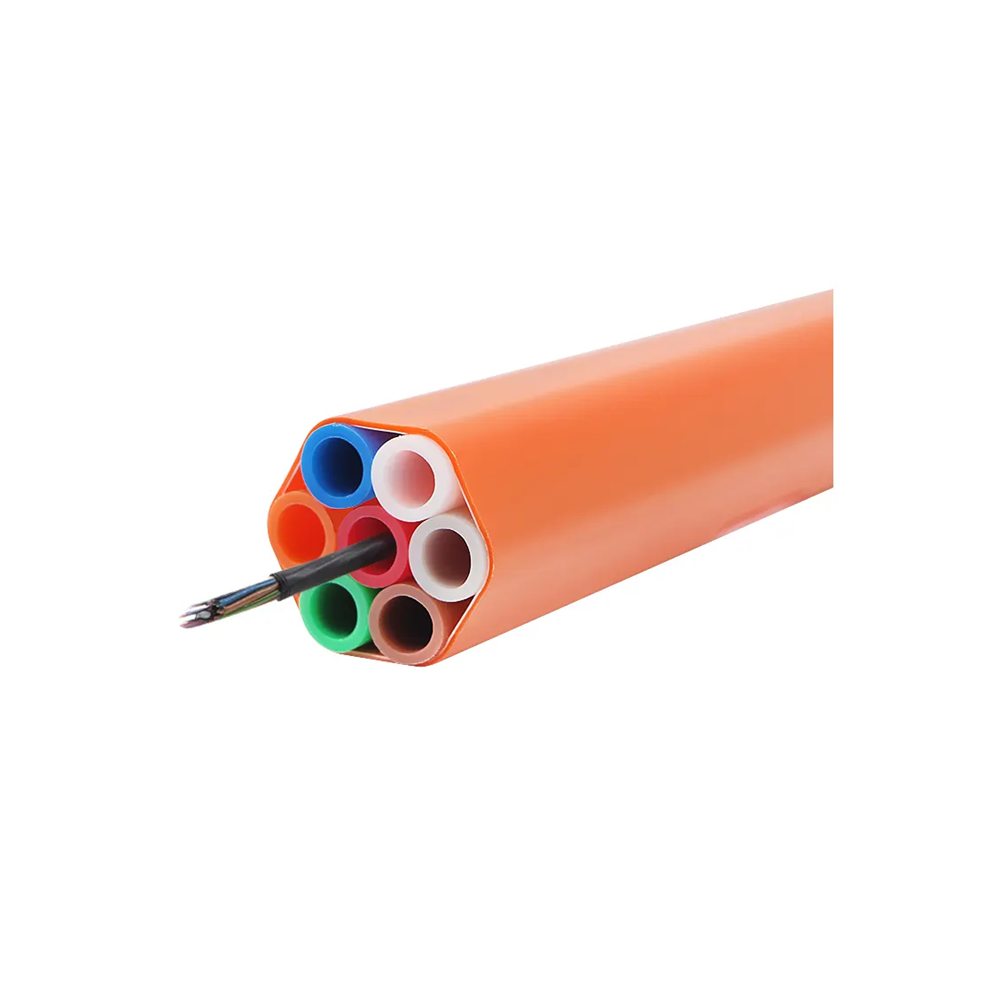

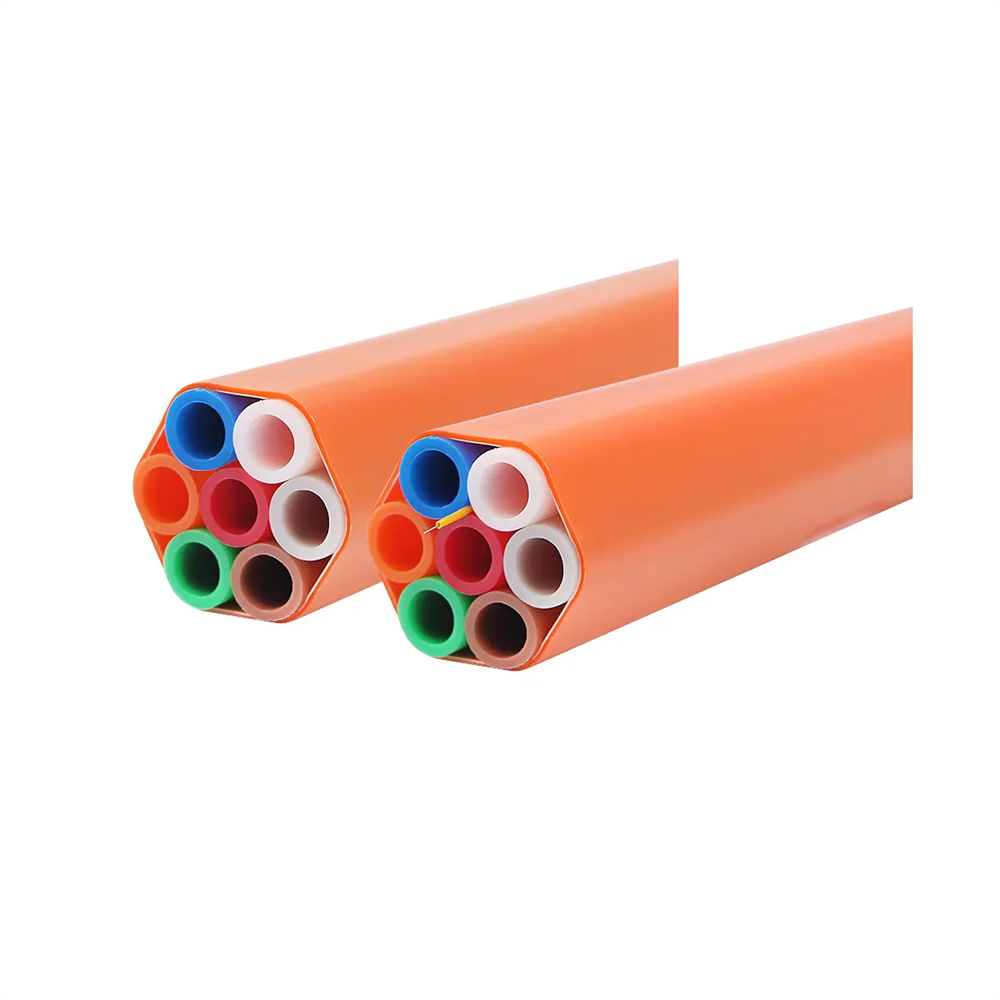

16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct
16/12mm air blown HDPE 7 way fibre microduct

16/12mm air blown HDPE 7 way fibre microduct

Payment Type:L/C,T/T,Paypal,others,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:1000 Meter
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.7 Way 14/10 mm

BrandOEM

Diameter16/12 14/10 12/8 10/6mm

Lengthcustomization

Ovality (%, Before Coiled)5%

Product Namemicroduct

MaterialHDPE

Processing ServiceExtrusion

Color OptionsWhite, red, green, blue Fully colored

Usageunderground installation

Thickness Of Sub-duct2.0mm

Thickness Of Sheath1.2mm or customized

Packaging & Delivery
Selling Units: Meter
Package Type: Standard Export Package, Drum length is 2000m or customized
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
16/12mm air blown HDPE 7 way fibre microduct

Product Description for HDPE micro duct pipe:

Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation.Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows individual tubes to be used direct bury solution.The microducts themselves are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low friction inner surface for best blowing performance.

Product Name:air blown fibre microduct,7 way microduct,HDPE Microduct

Product Views for microduct pipe HDPE:
microduct for fiber optic cableblown fiber optic technology

Construction of 7way microduct Pipe:

PE sheath: The outer sheath is manufactured from colored HDPE, halogen free. Normal outer sheath color is orange. Other color is possible upon customer request. - Micro duct: The micro duct is manufactured from HDPE, extruded from 100% virgin material. The color shall be grey (central duct), red, green, blue, yellow, orange, grown or other customized.

Table 1: Mechanical performance of inner micro duct Φ14/10mm
Pos.
Mechanical performance
Test conditions
Performance
Standard
1
Tensile strength
at yield
Rate of extension:
100mm/min
≥1400N
IEC 60794-1-2
Method E1
2
Crush
Sample length: 250mm
Load: 1400N
Duration of Max. load: 1 minutes
Recovery time: 1 hour
The outer and inner diameter shall show, under visual examination without damage and no reduction of diameter greater than 15%.
IEC 60794-1-2
Method E3
3
Kink
≤140mm
-
IEC 60794-1-2
Method E10
4
Impact
Striking surface radius: 10mm
Impact Energy: 1J
Number of impact: 3 times
Recovery time: 1 hour
Under visual examination, there shall be no damage to the micro duct.
IEC 60794-1-2
Method E4
5
Bend radius
Number of turns: 5
Mandrel diameter: 168mm
Mumber of cycles: 3
The outer and inner diameter shall show, under visual examination without damage and no reduction of diameter greater than 15%.
IEC 60794-1-2
Method E11
6
Friction
/
≤0.1
FCST

Table 2: Mechanical performance of Tube Bundle
Pos.
Item
Specification
1
Appearance
Smooth outer wall (UV-stabilized) without visible impurities; well-proportioned color, no bubbles or cracks; with defined markings
on outer wall.
2
Tensile strength
Use Pull socks to tension a sample in accordance with table below:
Sample length: 1m
Tensile speed: 20mm/min
Load: 6600N
Duration of the tension: 5 min.
No visual damage or residual deformation greater than 15% of the duct assembly outer diameter.
3
Crush Resistance
A 250mm sample after 1 minute load time and 1 hour recovery time. Load (plate) shall be 2000N. The imprint of the plate on the
sheath is not considered as mechanical damage.
No visual damage or residual deformation greater than 15% of the duct assembly outer diameter.
4
Impact
Striking surface radius shall be 10mm and impact energy 10J. Recovery time shall be one out. The imprint of the striking surface
on the microduct is not considered as mechanical damage.
No visual damage or residual deformation greater than 15% of the duct assembly outer diameter.
5
Bend
Diameter of mandrel shall be 40X OD of sample, 4 turns, 3 cycles.
No visual damage or residual deformation greater than 15% of the duct assembly outer diameter.

Various HDPE microduct for optional:
hexatronic microduct

Storage for 4ways microduct Pipe:

Completed packages of the HDPE Tube Bundle on drums can be stored outdoor max. 6 months upon the date of production. Storage temperature: -40°C ~ +70°C Installation temperature: -30°C ~ +50°C Operating temperature: -40°C ~ +70°C

Product packaging & Manufacturing:
low friction microduct 24 way microduct

Project:
micro duct microduct HDPE 1.2mm micro duct
Supply Ability & Additional Information

PackagingStandard Export Package, Drum length is 2000m or customized

Productivity600000 Meter/Meters per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability600000 Meter/Meters per Month

CertificateISO,ROHS

HS Code3917210000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others,Cash

IncotermFOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
