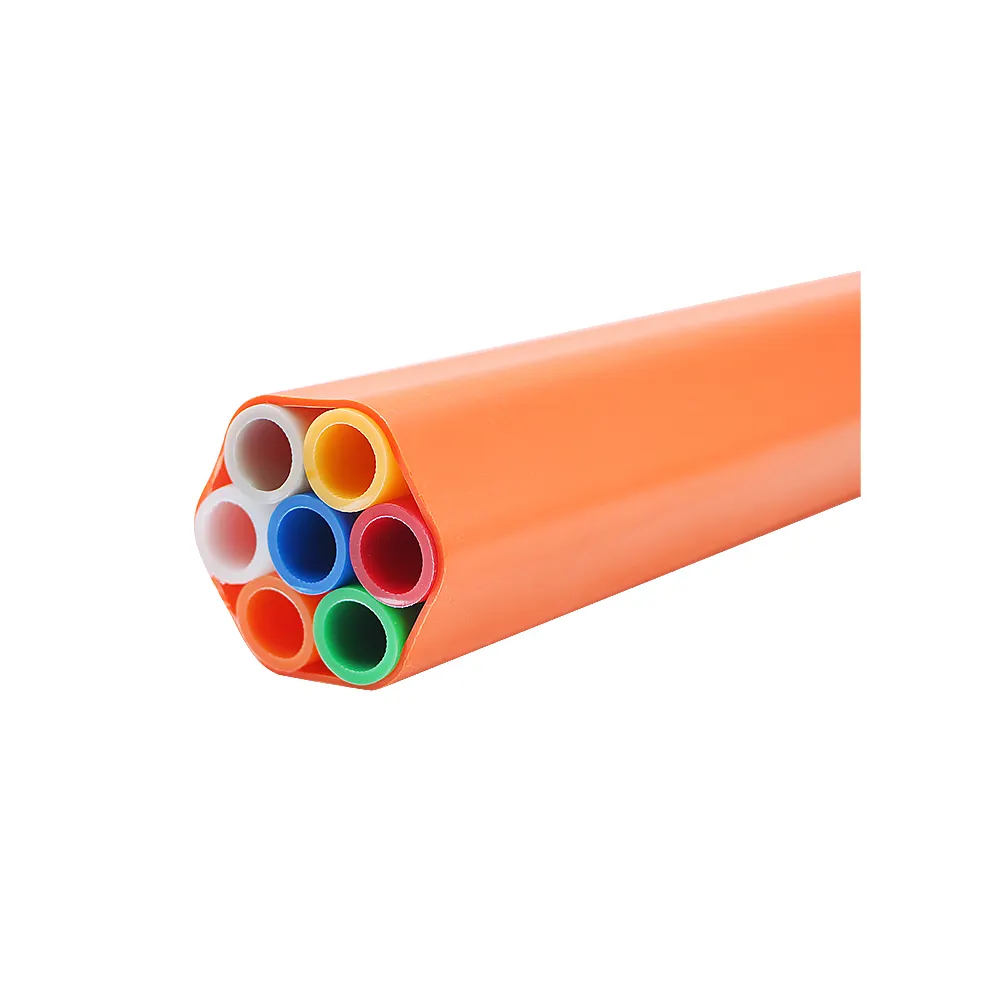

Model No.: 7 ways 14/10mm
Brand: OEM
Diameter: 16/12 14/10 12/8 10/6mm
Length: customization
Ovality (%, Before Coiled): 5%
Product Name: microduct
Material: HDPE
Processing Service: Extrusion
Color Options: White, red, green, blue Fully colored
Usage: underground installation
Thickness Of Sub-duct: 2.0mm
Thickness Of Sheath: 1.2mm or customized
| Selling Units: | Meter |
| Package Type: | Standard Export Package, Drum length is 2000m or customized |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Physical and Mechanical Properties – Inner Micro duct 14/10mm | |||
| 1 | Visual appearance | Visual inspection | Ribbed inside & smooth outside surface, free from blisters, shrink hole, flaking, scratches & roughness. |
| 2 | Outer diameter | GTOC | 14.0mm ± 0.1mm |
| 3 | Wall thickness | GTOC | 2.00mm ± 0.10mm |
| 4 | Inner diameter clearance | Blowing steel ball | A 8.5mm steel ball can be blown freely through the duct. |
| 5 | Ovality | GTOC | ≤ 5% |
| 6 | Pressurization | 5 minutes @25bar each duct | No damage and leakage |
| 7 | Kink | IEC 60794-1-2 Method E10 | ≤ 140mm |
| 8 | Tensile strength | Rate of extension: 100mm/min | ≥ 1350N |
| 9 | Crush | Sample length: 250mm Load: 1400N Duration of Max. load: 1 min Recovery time: 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 10 | Impact | IEC 60794-1-2 Method E4 1.5J Impact, recovery time 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 11 | Heat reversion | 110℃ ～ 23℃, 1 hour | ≤ 3% |
| 12 | Min. bend radius | 168mm | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 13 | Co-efficient of Friction | 750mm Diameter, 450°loop, 5kg mass | ≤ 0.1 |
| 14 | Color and printing | Visual inspection | As per customer specification |
| Test | Characteristic | Test Method | Acceptance Criteria |
| Physical and Mechanical Properties – tube bundles | |||
| 1 | Visual appearance | Visual inspection, Outer sheath: Black | Ribbed inside & smooth outside surface, free from blisters, shrink hole, flaking, scratches & roughness. |
| 2 | Outer diameter | GTOC | 44.4mm*40.6mm (± 1.1mm) |
| 3 | Sheath Wall thickness | GTOC | 1.20mm ± 0.20mm |
| 4 | Pressurization | 5 minutes @25bar each duct | No damage and leakage |
| 5 | Tensile strength | Rate of extension: 100mm/min | ≥ 6600N |
| 6 | Crush | Sample length: 250mm Load: 2000N Duration of Max. load: 1 min Recovery time: 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 7 | Impact | IEC 60794-1-2 Method E4 15.0J Impact, recovery time 1 hour | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 8 | Min. bend radius | 820mm | No residual deformation > 15% of inner and outer diameter, shall pass inner diameter clearance test. |
| 9 | Color and printing | Visual inspection | Orange or as per customer specification |
Packaging: Standard Export Package, Drum length is 2000m or customized
Productivity: 600000 Meter/Meters per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 600000 Meter/Meters per Month
Certificate: ISO,ROHS
HS Code: 3917210000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
