Model No.: GJXJOH
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Cores: 1,2 ,4,6, 8, 12
Jacket: PVC or LSZH
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 10~12
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: ftth fiber optic cable
Application: Indoor
Cable Type: FTTH Drop Cable
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Single Mode Nylon Buffer Outdoor indoor fiber cable Wire
1.1 Description for drop cable ftth
The 900μm nylon tight buffered optical fiber unit ispositioned in the center. Two 0.45mm steel wire are placed at the two sides.Then, the cable is completed with a black or colored LSZH sheath.Please inquiry us for fiber optic cost per meter.
Product Name:fiber cable wire,indoor fiber,outdoor fiber,ftth fiber optic cable,fiber optic drop cable,drop cable,indoor drop cable,optic fiber communication,fiber optic cable strength,core fiber optic cable

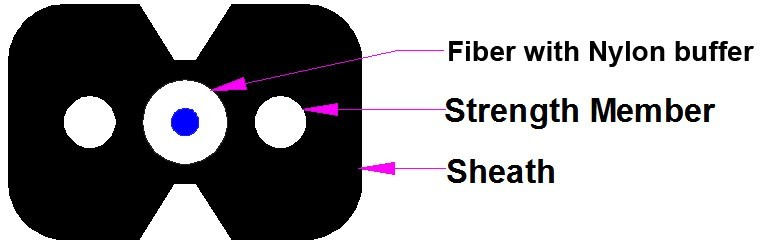

1.2 Structure of cable ftth
2.1 Optical Characteristics for lszh fiber cable
| Fiber type | Attenuation | OFL | Valid bandwidth | 10G Ethernet link length SX | Minimum | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Nominal | Maximum | Nominal | Maximum | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
2.2 Technical Parameters of fiber optic mode
| Cable Type | Fiber Count | Cable Size mm | Cable Weight (ref) kg/km | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GJXJOH-1G.657A2 | 1 | 2.0x3.0(±0.1） | 8.0 | 80/200 | 500/1000 | 15/30 |
3.1 Characteristics of fiber optic 1 core
l Speciallow-ben-sensitivity fiber provides high bandwidth and excellent communicationtransmission property.
l Nylon buffer and steel wire strength member ensure good performance ofcrush resistance to protect the fiber.
l Simple structure, light weight and high practicability
l Novel flute design easily strip and splice, simplify the installationand maintenance.
l Low smoke, zero halogenand flame retardant sheath
3.2 Packing and shipping of figure 8 fiber cable
3.1 The cables are packed in plywood drums.
3.2 Standard delivery length is 1km/drum or percustomer’s requirements.
3.3 Sheath Marking customized
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
