Model No.: GJXFHA
Brand: OEM
| Selling Units: | Kilometer |
| Package Type: | wooden roll |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

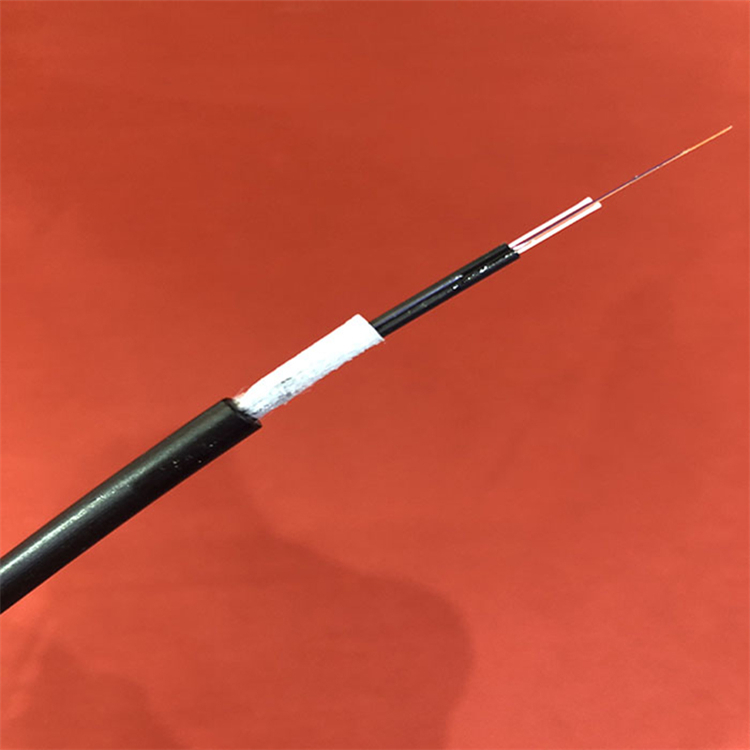

1.1 Cable Description（GJYXFH Bow-type Drop Cable for Duct）
The optical fiber unit ispositioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wire areplaced at the two sides. Then the cable is completed with a black or color LSZHsheath and water blocking tape (or aramid yarn). Finally the cable is completed with a PE sheath
Product Name:single fiber cable,6 core fiber,6 core fiber optic cable,ftth fiber optic cable,fiber optic drop cable,drop cable,indoor drop cable,optic fiber communication,fiber optic cable strength,core fiber optic cable,indoor fiber,outdoor fiber

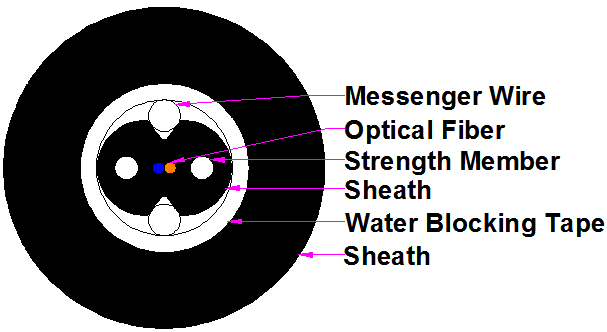

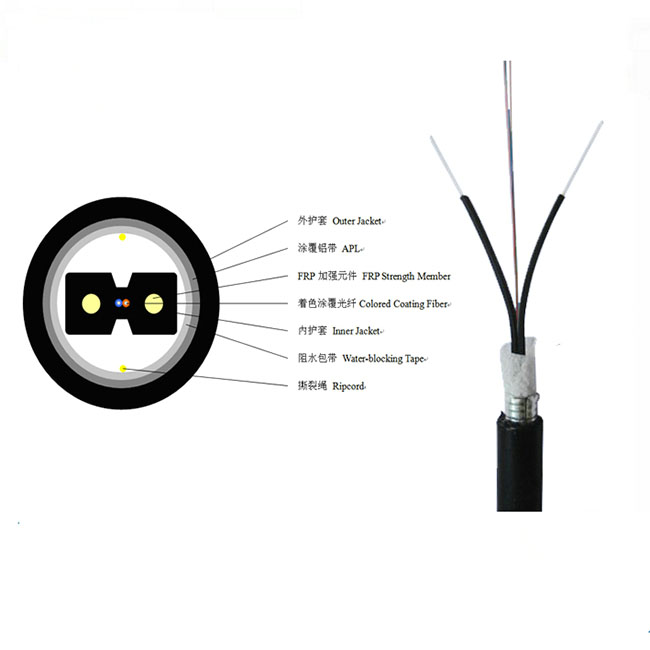

1.2 Cable Structure
2. Optical Characteristics & Technical Parameters
2.1 Optical Characteristics
| Fiber type | Attenuation | OFL | Valid bandwidth | 10G Ethernet link length SX | Minimum | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Nominal | Maximum | Nominal | Maximum | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | | | | | | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
| OM3 | | | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | | | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
2.2 Technical Parameters
| Cable Type | Fiber Count | Cable Size mm | Cable Weight (ref) kg/km | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GJYXFH-1-12F | 1-12 | 7.4mm | 59 | 200/600 | 2000 | 10D/20D |
3.1 Cable Characteristics
l Speciallow-ben-sensitivity fiber provides high bandwidth and excellent communicationtransmission property.
l Two parallel FRP strength members ensure good performance of crushresistance to protect the fiber.
l Simple structure, light weight and high practicability
l Novel flute design easily strip and splice, simplify the installationand maintenance.
l Low smoke, zero halogenand flame retardant sheath; PE sheath protects cale from ultraviolet radiation
l Water blocking tape enhance moisture proof. Aramid yarn enhance tensile strength.
Packaging: wooden roll
Productivity: 15000 kilometer per month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 kilometer per month
Certificate: ISO,SGS
HS Code: 8544700000
Port: Shenzhen,Guangzhou,Shanghai
Payment Type: L/C,T/T,D/P,Paypal,D/A,others
Incoterm: FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
