outdoor steel figure 8 fiber drop cable ftth

outdoor steel figure 8 fiber drop cable ftth

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJYXCH

Brand: OEM

Place Of Origin: China

Fiber Cores: 1 2 4 6 8 12 core

Jacket: PE PVC LSZH HDPE

Wire: FRP/KFRP/Steel Wire

Cable Weight(kg/km): 22kg/km

Core Type: G652 G657A

Package: 1km/2km per wooden drum + outer box

Keyword: FTTH drop optical fiber cable

Application: Outdoor

Cable Diameter: 2.0X5.0mm

Certification: ISO9001,ROHS,SARFT

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	1km/2km per wooden drum + outer box

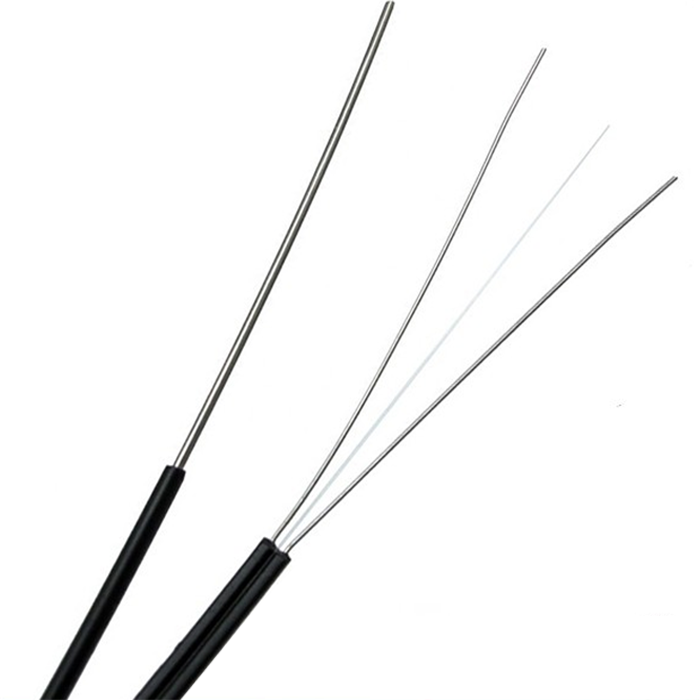

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Outdoor steel wires figure 8 fiber drop cable ftth

Product description（Bow-Type Drop Cable）

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires or KFRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.

Product Name:cable ftth,drop cable ftth,figure 8 fiber cable,single core fiber cable,ftth fiber optic cable,fiber optic drop cable,drop cable

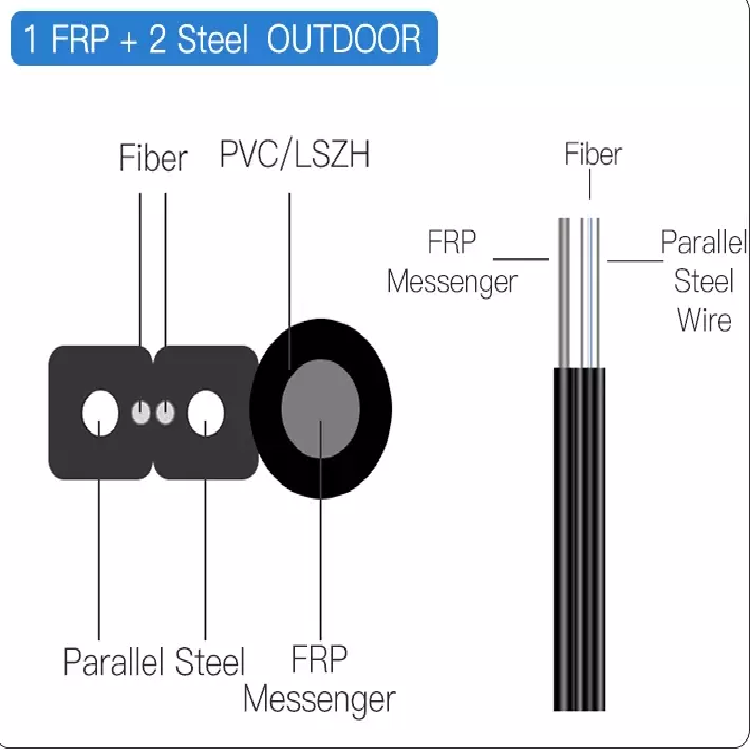

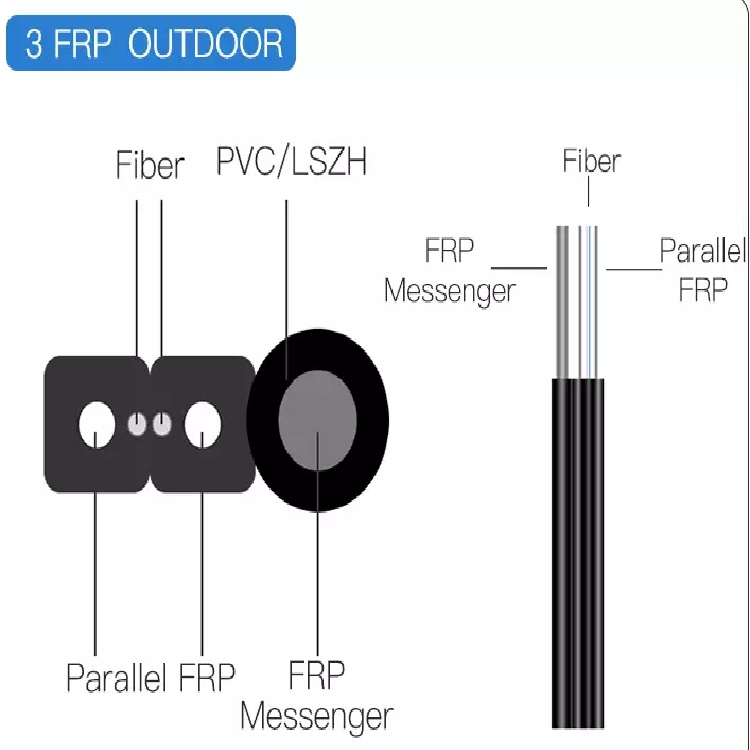

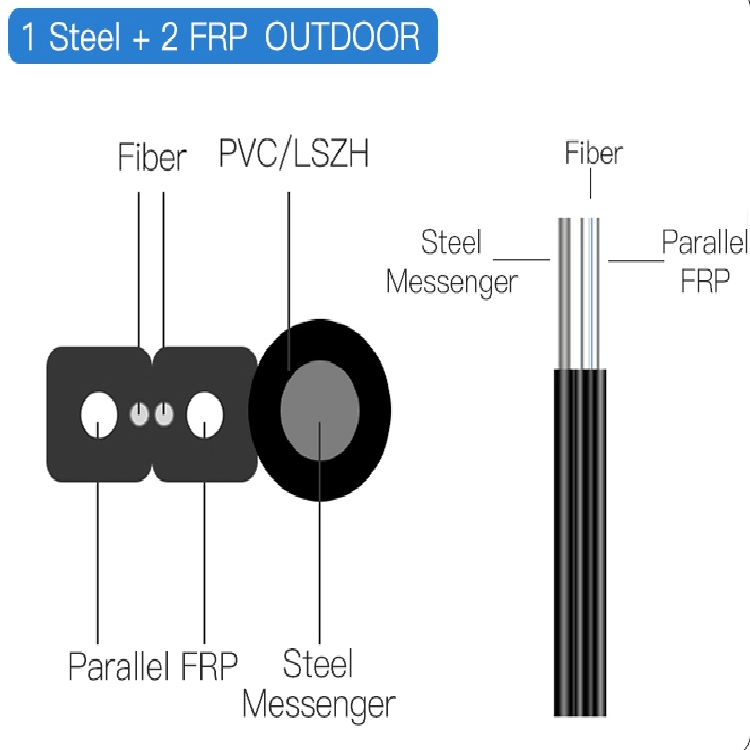

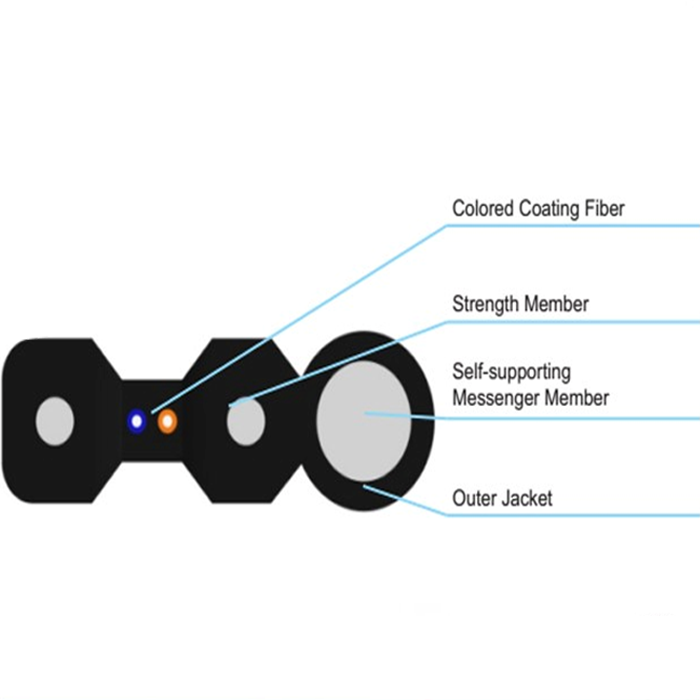

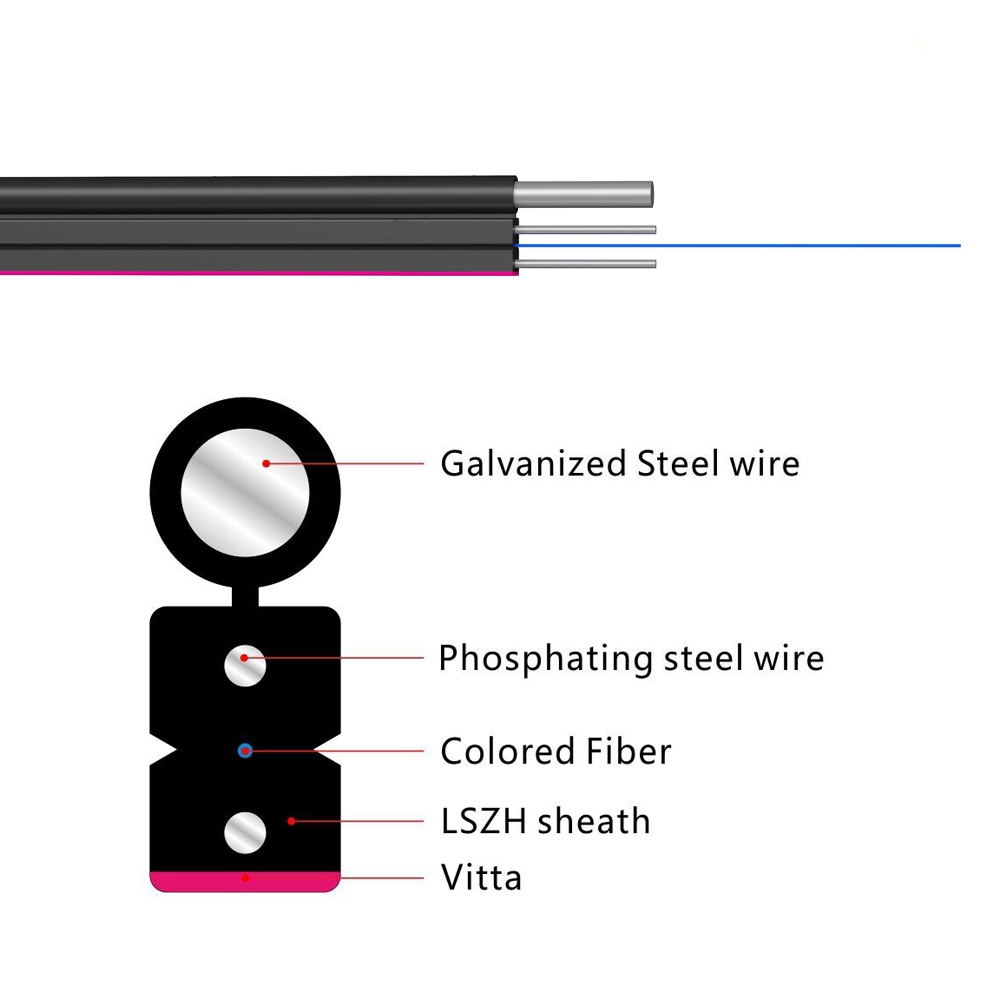

Cable Cross Section:

Techinical parameter

Fiber type	Attenuation				OFL	Valid bandwidth	10G Ethernet link length SX	Minimum
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Typical	Max.	Typical	Max.	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Items		Specifications
Fiber Type		G.657A2（Fujikura Joint-venture Manufacture or Draka）
Colored fiber		1（Colored Green）
Strength Member		2pcs*0.5mm FRP
Self-supporting Unit/Messenger		1.2mm FRP
Outer Jacket	Dimension	（2.0± 0.1 mm）H × （5.3 ± 0.3 mm）W
	Material	Low Friction LSZH - Low smoke zero halogen
	Colored	Grey RAL7004HR
Cable Attenuation	@ 1310 nm	≤ 0.40 dB/km
	@ 1550 nm	≤ 0.30 dB/km
Cable Printing		Customize

Characteristics

1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2.Two parallel FRP or KFRP or steel wire as strength memners ensure good performance of crush resistance to protect the fiber.

3.Single steel wire as the traditional strength member ensures god performance of tensile strength.

4.Simple structure,light weight and high practicablity.

5.Novel flute design, easily strip and splice,simplity the installation and maintenance.

6. Low smoke, zero halogen and flame retardant sheath

Application

1. Access network , fiber to the home

2. Support the Internet , CATV , telephone and more network service in the future.

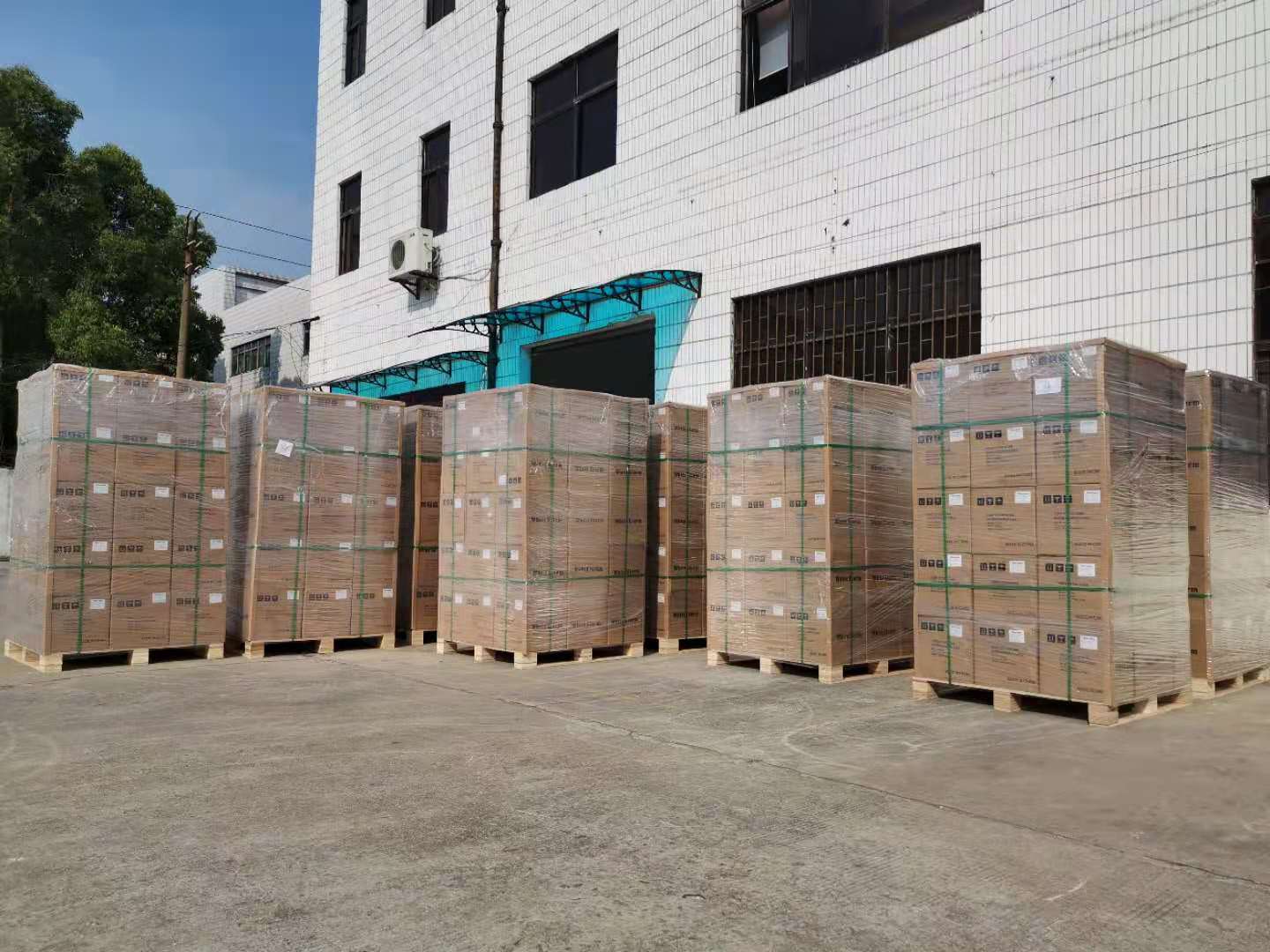

Packing:

1 .The cables are packed in wooden drums andthen in carton box

2 .Standard delivery length is 1km/roll or percustomer’s requirements.

3 .Sheath Marking: The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
