ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable
ftth duplex G657A1 outdoor terminated fiber optic cable

ftth duplex G657A1 outdoor terminated fiber optic cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJYXCH/GJYXFCH

BrandOEM

Place Of OriginChina

Fiber Cores1 2 4 6 8 12 core

JacketPE PVC LSZH HDPE

WireFRP/KFRP/Steel Wire

Cable Weight(kg/km)22kg/km

Core TypeG652 G657A

Package1km/2km per wooden drum + outer box

KeywordFTTH drop optical fiber cable

ApplicationOutdoor

Cable Diameter2.0X5.0mm

CertificationISO9001,ROHS,SARFT

Packaging & Delivery
Selling Units: Kilometer
Package Type: 1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

ftth duplex G657A1 outdoor terminated fiber optic cable

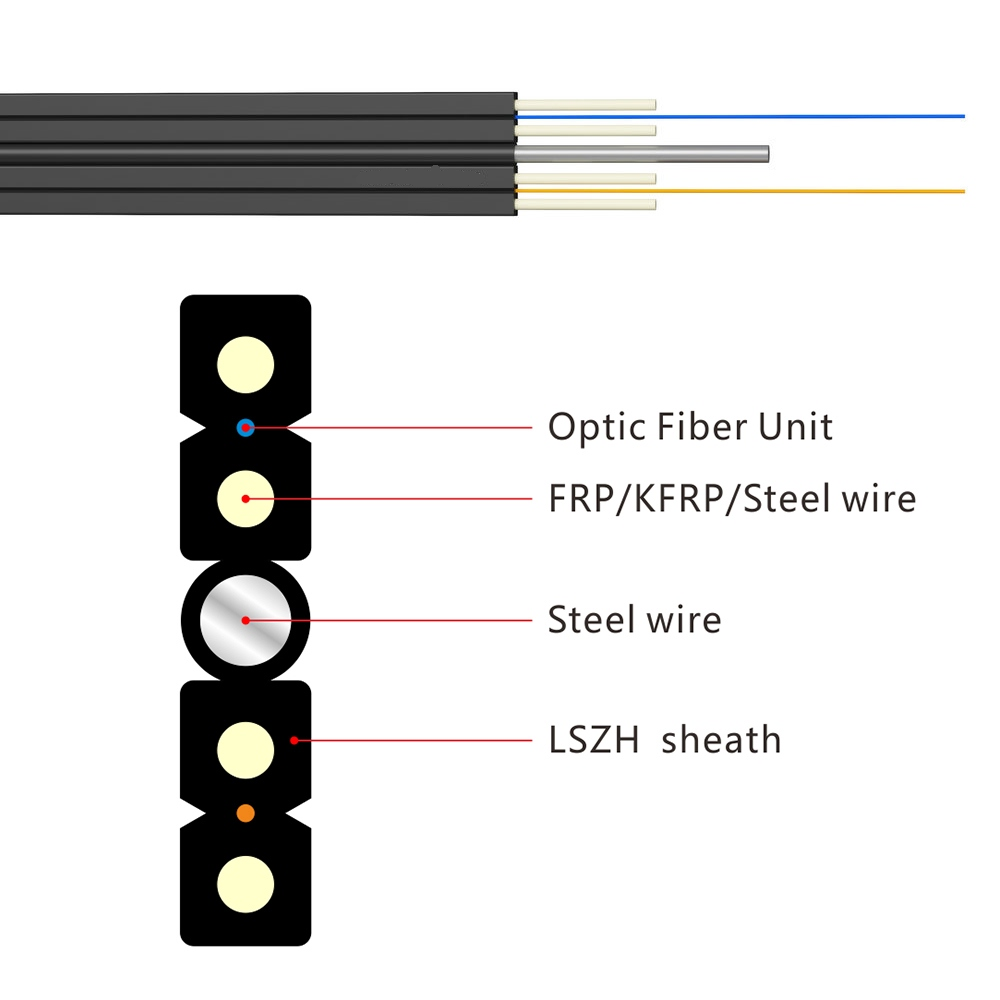

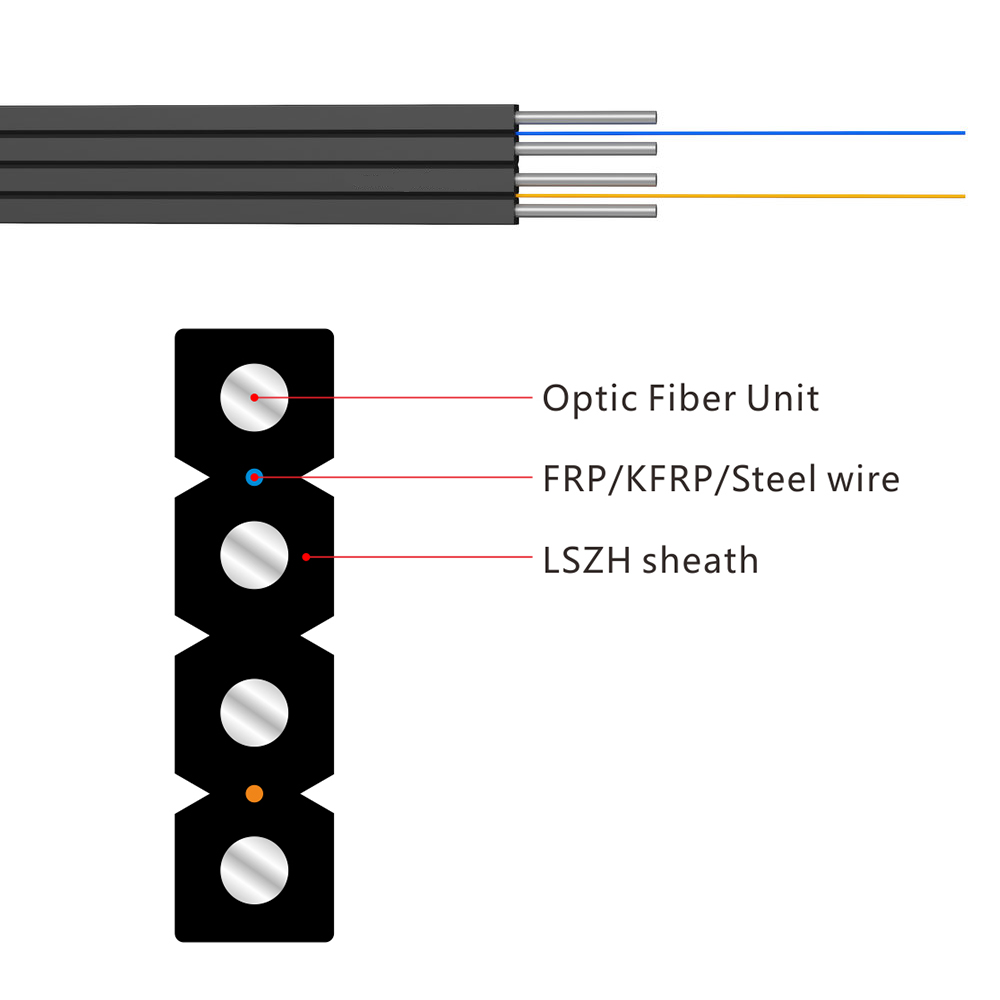

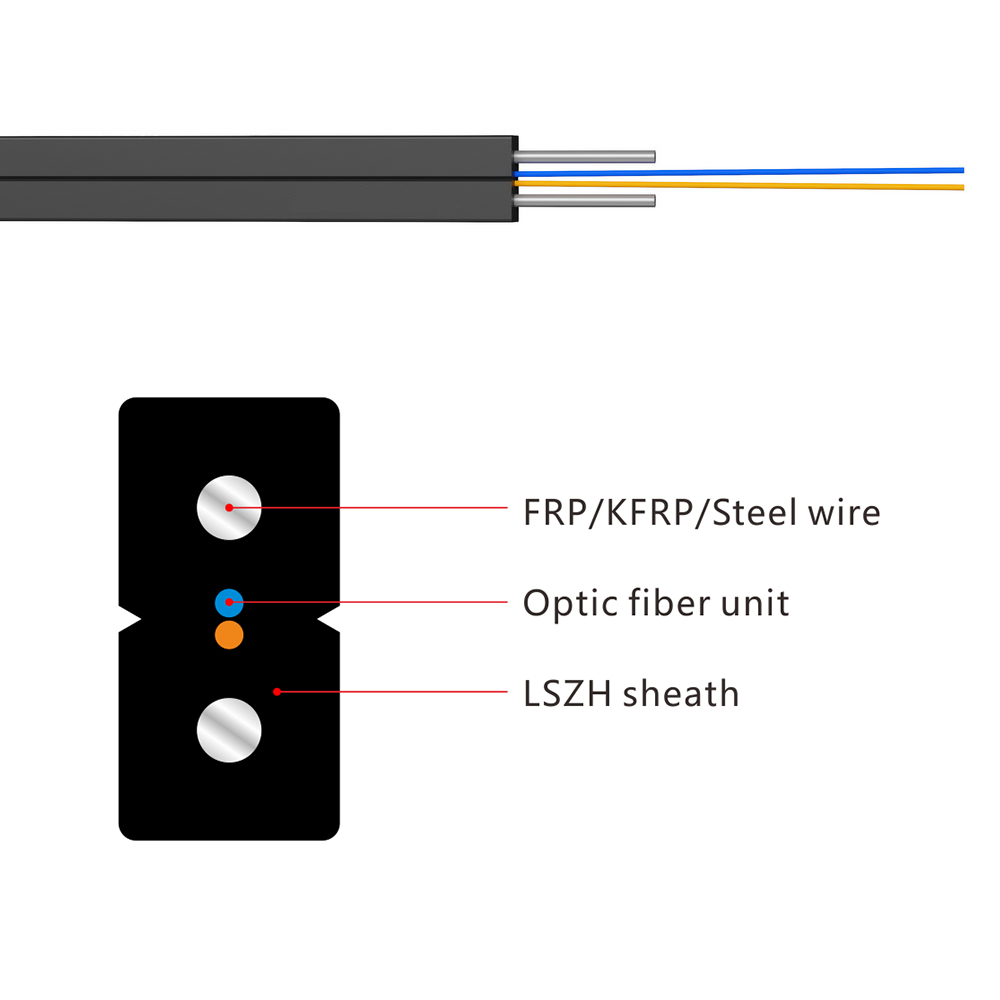

FTTH double-fly indoor cable, in the center there are two optical fiber units, Two parallel FRP/KFRP or steel wire are placed at the two sides of the optical fiber units separately. Then the cable is completed with a black or color LSZH sheath.

Product Name:fiber cable specs,fibre cores,terminated fiber optic cable,lszh optical cable,fiber wire price,ftth fiber to the home,fiber drop wire

Product Picture/ PRODUCT

fiber cable specs

Product Features/ PRODUCT

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
·Simple structure, light weight and high practicability;
·special tube filling compound ensure a critical protection of fiber.
·Single steel wire or stranded steel wires together with the strength member ,  ensure good tensile properties of the fiber cable;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.
·Unique double-fly design make the installation more simple, time-saving and cut down cost.

pre made fibre optic cableftth fiber optic cablefiber drop

Optical Characteristics/ PRODUCT



G.652

G.655

G657A1

G.657A2

Attenuation
(+20℃)

@850nm









@1300nm









@1310nm

≤0.40/km

≤0.45/km

≤0.40/km

≤0.40/km

@1550nm

≤0.30/km

≤0.30/km

≤0.30/km

≤0.30/km

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm

≤1260nm

≤1260nm



Structure Parameter/ PRODUCT

Fiber count

Cable diameter
mm

Cable weight
Kg/km

Tensile strength
long/Short term
N

Crush resistant
long/Short term
N/100m

Bending radius
Static/dynamic
mm

2*1

(2.0±0.2)×(8.0±0.2)

30

500/1000

300/1000

15D/30D

2*2

(2.0±0.2)×(8.0±0.2)

30

500/1000

300/1000

15D/30D

2*4

(2.0±0.2)×(8.0±0.2)

30

500/1000

300/1000

15D/30D

Storage/Operating Temperature : -20℃ to + 60℃

Product Export Containers/ PRODUCT



Daily export containers
fiber cable packing
Supply Ability & Additional Information

Packaging1km/2km per wooden drum + outer box

Productivity5000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,Express Delivery
