Model No.: GJYXFCH
Brand: OEM
Place Of Origin: China
Fiber Cores: 1 2 4 6 8 12 core
Jacket: PE PVC LSZH HDPE
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 22kg/km
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: FTTH drop optical fiber cable
Application: Outdoor
Cable Diameter: 2.0X5.0mm
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

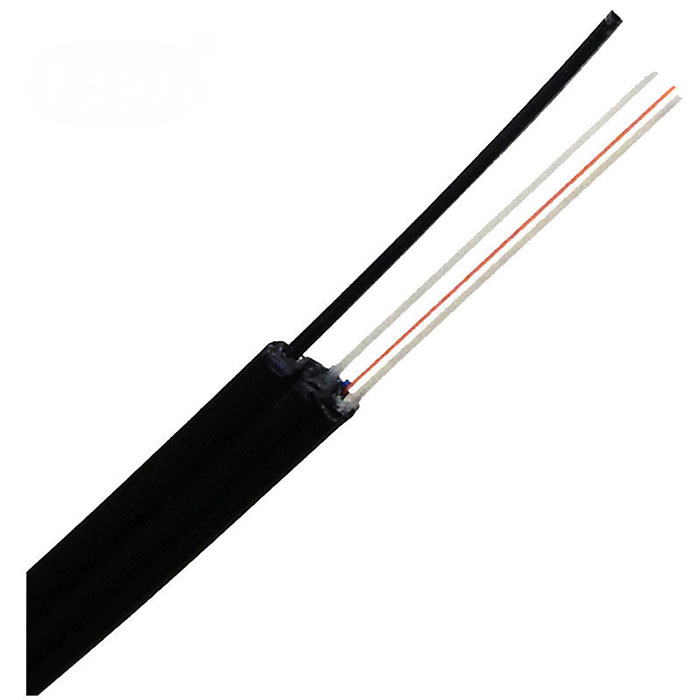

GJYXFCH 2 core ftth flat fiber drop wire cable price

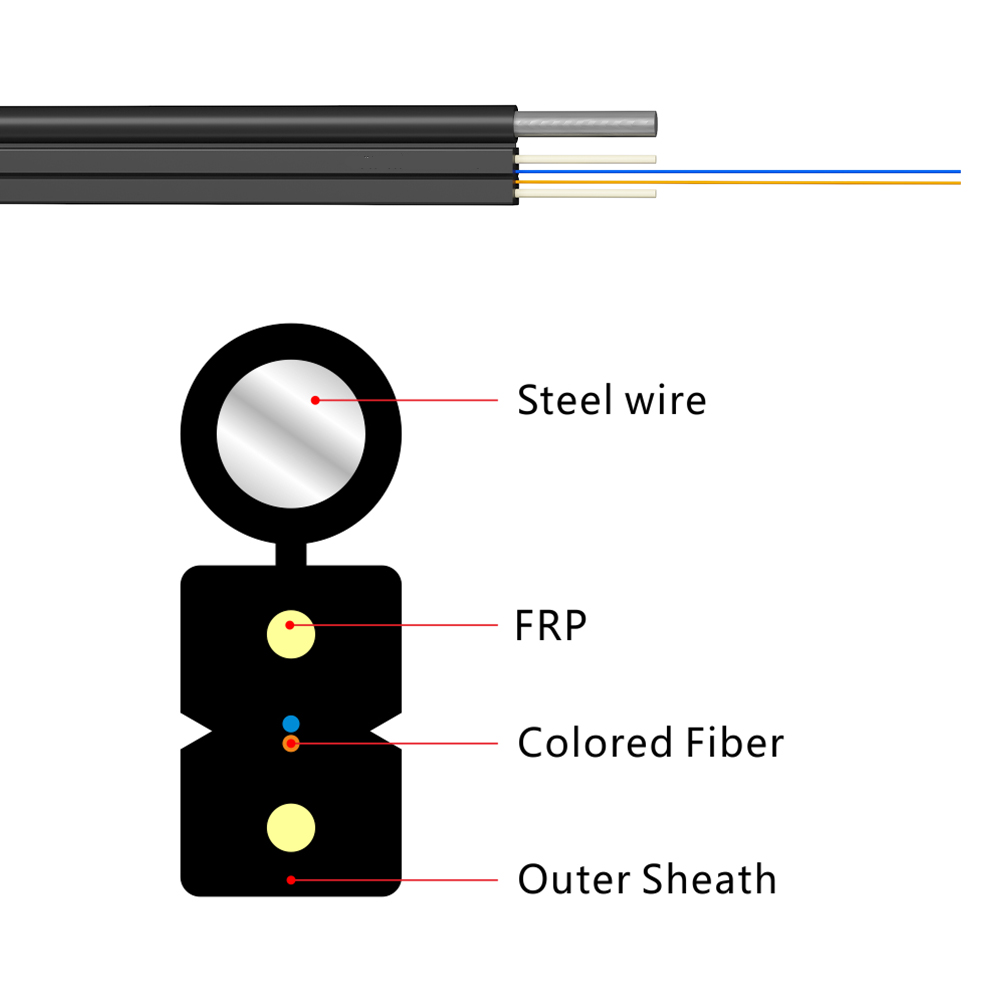

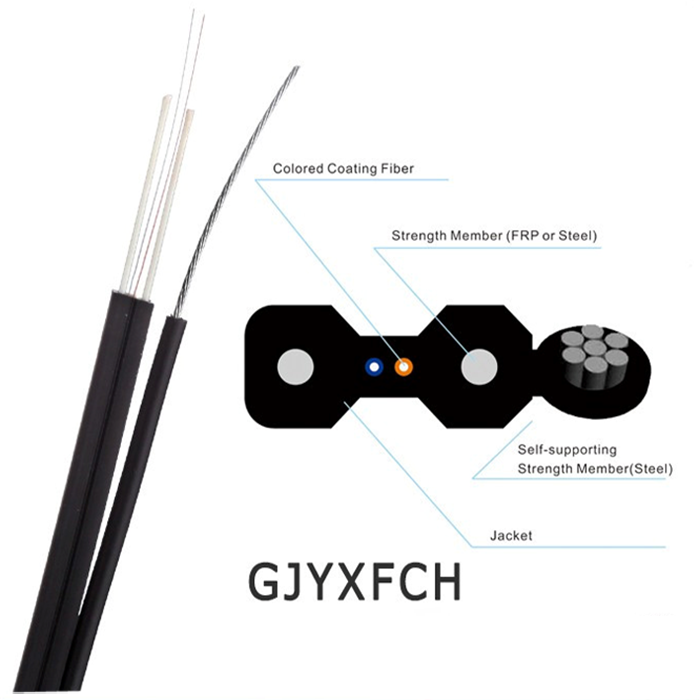

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
·Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
·Simple structure, light weight and high practicability.
·Novel flute design, easily strip and splice, simplify the installation and maintenance.
·Low smoke, zero halogen and flame retardant sheath.
Complies with Standard YD/T 1997-2009.
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation (+20℃) | @850nm |
|
| ≤3.5B/km | ≤3.5B/km |
| @1300nm |
|
| ≤1.5B/km | ≤1.5B/km | |
| @1310nm | ≤0.40/km | ≤0.45/km |
|
| |
| @1550nm | ≤0.30/km | ≤0.30/km |
|
| |
| Bandwidth （Class A） | @850 |
|
| ≥500MHZ·km | ≥20MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| | |
| | |
|
| 1 | 2.0×5.0 | 20 | 100/200 | 1000/2200 | 15D/30D |
| 2 | 2.0×5.0 | 20 | 100/200 | 1000/2200 | 15D/30D |
| 4 | 2.0×5.0 | 20 | 100/200 | 1000/2200 | 15D/30D |
| 6 | 2.0×5.5 | 21 | 100/200 | 1000/2200 | 15D/30D |
| 8 | 2.0×6.0 | 23 | 100/200 | 1000/2200 | 15D/30D |
| 12 | 2.0×7.0 | 25 | 100/200 | 1000/2200 | 15D/30D |
Storage/Operating Temperature : -20℃ to + 60℃
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
