4cores ftth fiber optic telecommunication cable supply

4cores ftth fiber optic telecommunication cable supply

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJYXCH

Brand: OEM

Place Of Origin: China

Fiber Cores: 1 2 4 6 8 12 core

Jacket: PE PVC LSZH HDPE

Wire: FRP/KFRP/Steel Wire

Cable Weight(kg/km): 22kg/km

Core Type: G652 G657A

Package: 1km/2km per wooden drum + outer box

Keyword: FTTH drop optical fiber cable

Application: Outdoor

Cable Diameter: 2.0X5.0mm

Certification: ISO9001,ROHS,SARFT

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description for fiber optic figure 8:

GJYXCH 4cores ftth fiber optic telecommunication cable supply

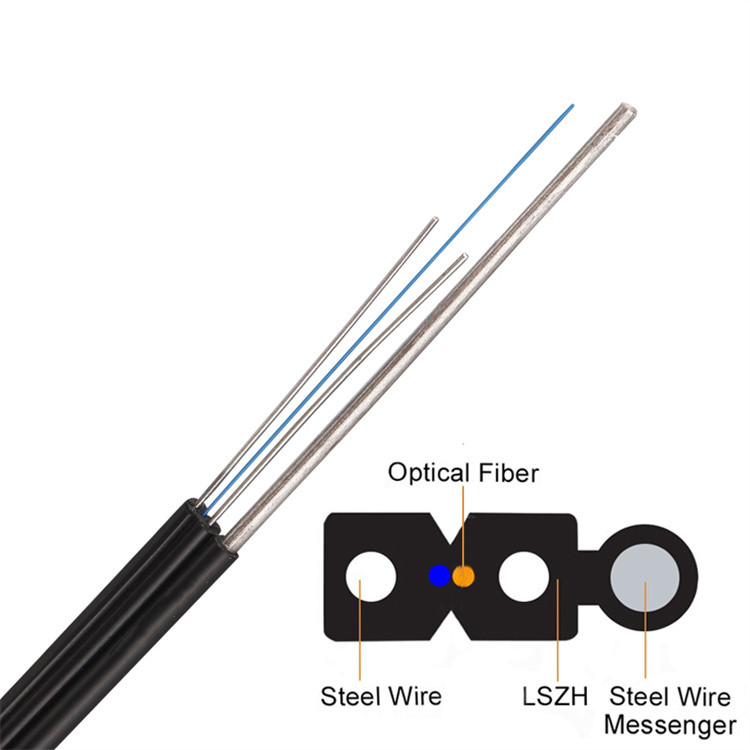

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath,There is a recognition guide at the bottom of the cable.

FTTH Outdoor Fiber Optic Cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

▪ GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting

Product Name:ftth fiber optic cable,fiber optic telecommunication,fiber to the home ftth,fiber optic cable supply,optic fiber communication,indoor drop cable,indoor fiberftth flat drop cable,fiber optic telecom,fiber optic cable supplier

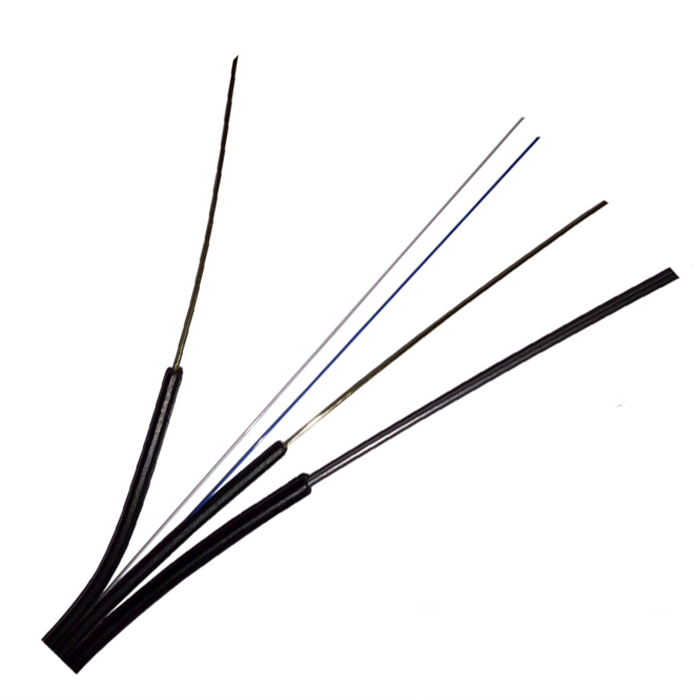

single mode fiber picture:

fiber optic 4 core single mode characteristics:

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber;
· Single steel wire or messengers as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.

FTTH Drop Cable Optical Characteristics:

		G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameters:

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long /Short Term N	Crush Resistance Long /Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
2	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
4	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
6	(2.5±0.2)×(6.0±0.2)	26	300/600	1000/2200	20/40
8	(2.5±0.2)×(6.0±0.2)	26	300/600	1000/2200	20/40
12	(3.0±0.2)×(7.0±0.2)	34	300/600	1000/2200	20/40
