Model No.: GJYXFCH
Brand: OEM
Place Of Origin: China
Fiber Cores: 1 2 4 6 8 12 core
Jacket: PE PVC LSZH HDPE
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 22kg/km
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: FTTH drop optical fiber cable
Application: Outdoor
Cable Diameter: 2.0X5.0mm
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

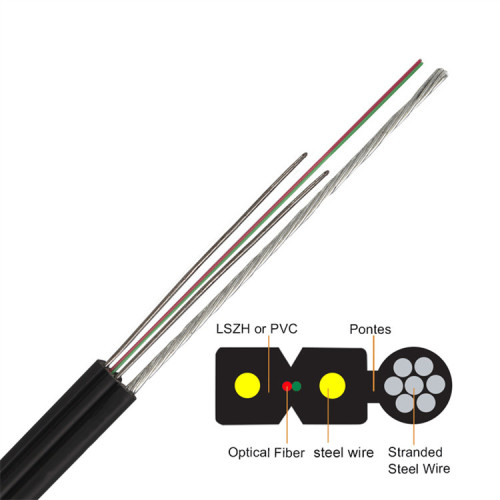

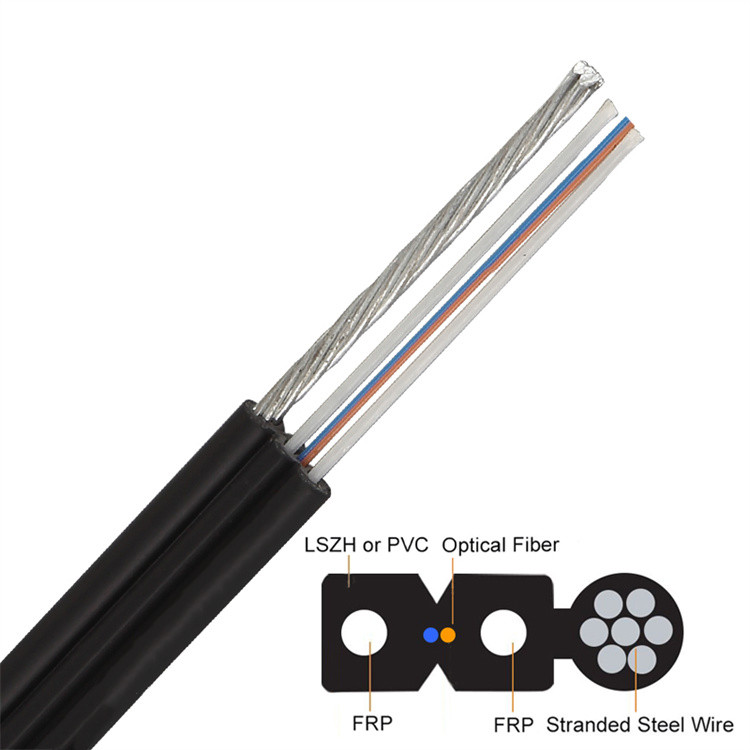

FTTH Self-supporting Bow-type Drop Cable With 7 Stranded Steel Wire,The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member with steel wire.
Technical Parameter:
| Cable Type | Cable Diamter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| GJYXFCH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJYXFCH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJYXFCH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJYXCH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJYXCH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJYXCH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
Application: Outdoor; Self-supporting
1. High-performance optical network operating.
2. High-speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.
Characteristics:
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Packing:
1-5KM per roll. Packed by wooden drum . Other packing available according to client`s Request.
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
