Fiber Optic Outdoor FTTH 1 Core Drop Cable

Fiber Optic Outdoor FTTH 1 Core Drop Cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJYXTCH

Brand: OEM

Place Of Origin: China

Fiber Cores: 1 2 4 6 8 12 core

Jacket: PE PVC LSZH HDPE

Wire: FRP/KFRP/Steel Wire

Cable Weight(kg/km): 22kg/km

Core Type: G652 G657A

Package: 1km/2km per wooden drum + outer box

Keyword: FTTH drop optical fiber cable

Application: Outdoor

Cable Diameter: 2.0X5.0mm

Certification: ISO9001,ROHS,SARFT

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

fiber optic cable FTTH Drop Cable Outdoor FTTH 1 Core Drop Cable

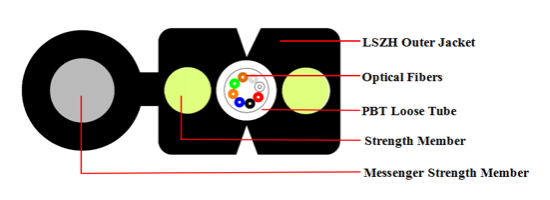

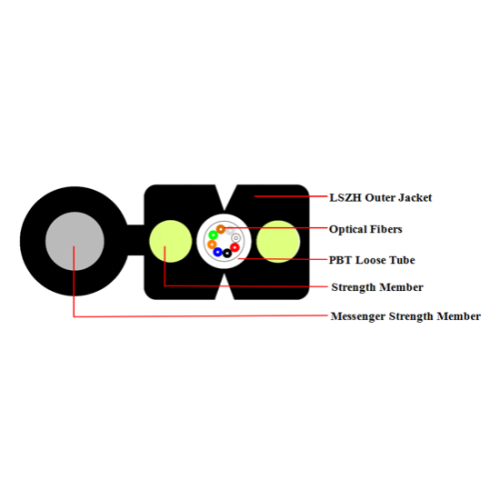

The cable consists of optical communication unit, strength member, self-supporting unit and outer sheath;
Optical communication unit includes fibers and PBT Loose Tube Jelly Filled;
This cable adopts PBT structure, which can better ensure data transmission. It can hold 12 optical fibers.;
Strength member can be metallic or Non-metallic according to customers’ demand.

Product Name:ftth cable,fiber optic cable wire,optical fiber drop cable

TECHNICAL DATA:

Parameters	Specifications
Fiber Core	2	4	6	8	12
Cable Dimension (mm)	(3.0±0.1) × (6.2±0.1)	(3.0±0.1) × (6.2±0.1)	(3.2±0.1) × (6.3±0.1)	(3.5±0.1) × (6.5±0.1)	(3.5±0.1) × (6.5±0.1)
Cable Weight (kg/km)	26	26	26	27	28
Self-supporting Messenger	1.0mm /1.2mm/1.5mm (Steel Wire or FRP)
Parallel Messenger	0.4mm/ 0.45mm/ 0.5mm (Steel Wire or FRP)
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	1000 N/100mm
Crush(N/100mm) Short term	2200 N/100mm
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket	LSZH

Packing & Shipping:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
