Model No.: GJXH
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Cores: 1,2 ,4,6, 8, 12
Jacket: PVC or LSZH
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 10~12
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: ftth fiber optic cable
Application: Indoor

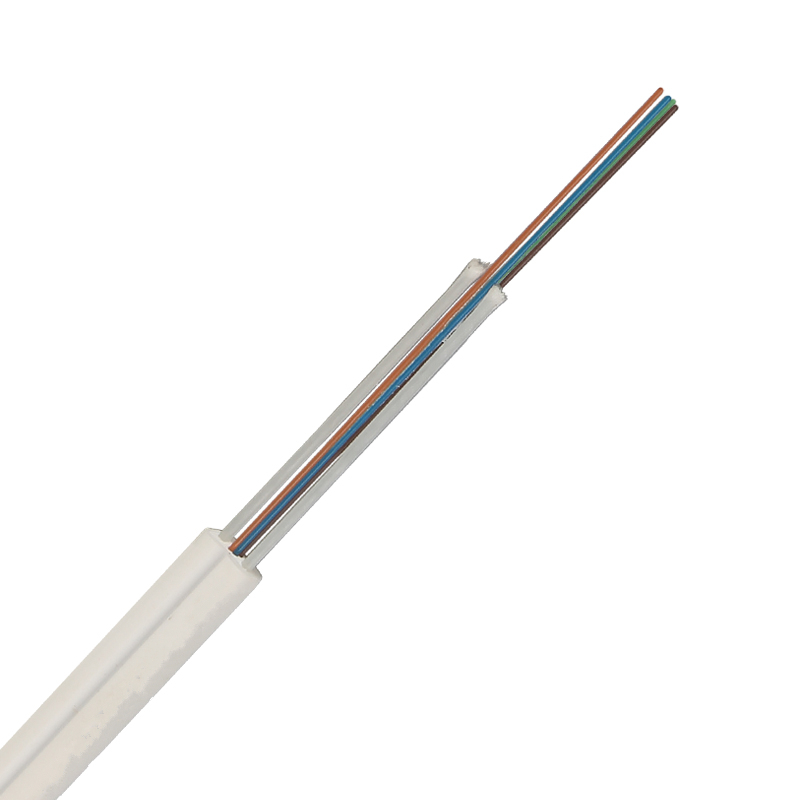

Cable Type: FTTH Drop Cable
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Product Details:
1)Good mechanical and environmental characteristics.
2)Rame retardant characteristics meet the requirements of relevant standards.
3)The mechanical characteristics meet the requirements of relevant standards.
4)Soft, flexible, easy to lay and splice, and with big capacity data transmission.
5)Meet various requirements of market and clients.
Product Name:fiber optic cable single core,fiber to ethernet cable,drop cable fiber,ftth flat drop cable,optic fiber communication,fiber and cable,single mode fiber cable,single mode fiber cost,indoor fiber,fiber optic wires
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |

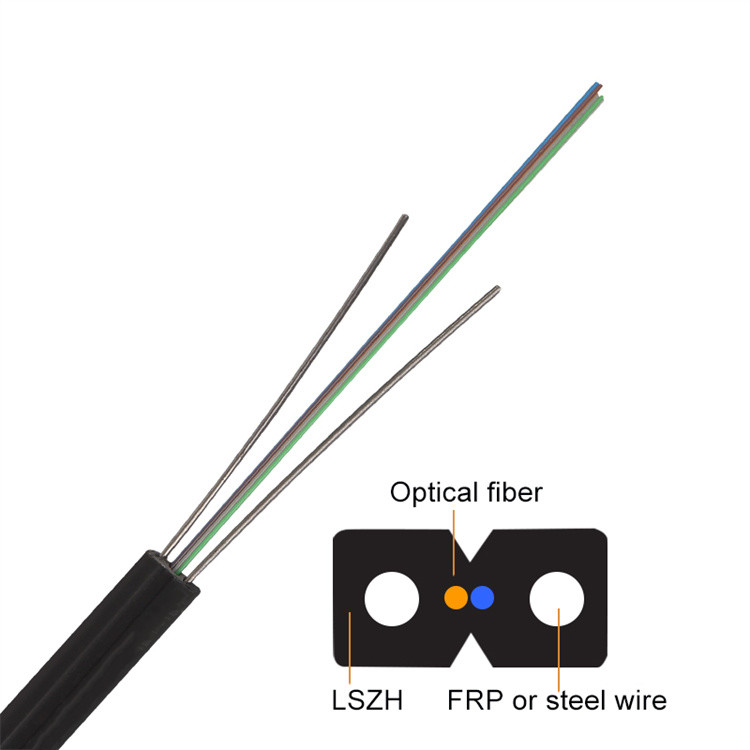

Structure and Technical Specifications
| Fiber core number | OD | weight | Tensile Loading Test | Repeated Bending | Crush Resistance Test | ||
| mm | kg/km | Short-tensile load | Long-tensile load | developments | static | N/100mm2 | |
| N | N | mm | mm | ||||
| 1 | 2.0*3.0 | 8.5 | 80 | 40 | 30D | 15D | 1100 |
| 2 | 2.0*3.0 | 8.5 | 80 | 40 | 30D | 15D | 1100 |
| 4 | 2.0*3.0 | 10.0 | 80 | 40 | 30D | 15D | 1100 |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
We produce and test cable compl with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Applications
Used as access building cable.
Used in indoor cabling, especially used for FTTH

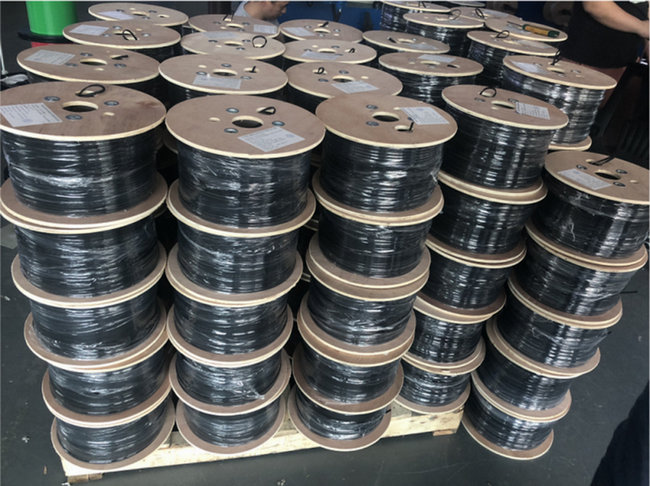

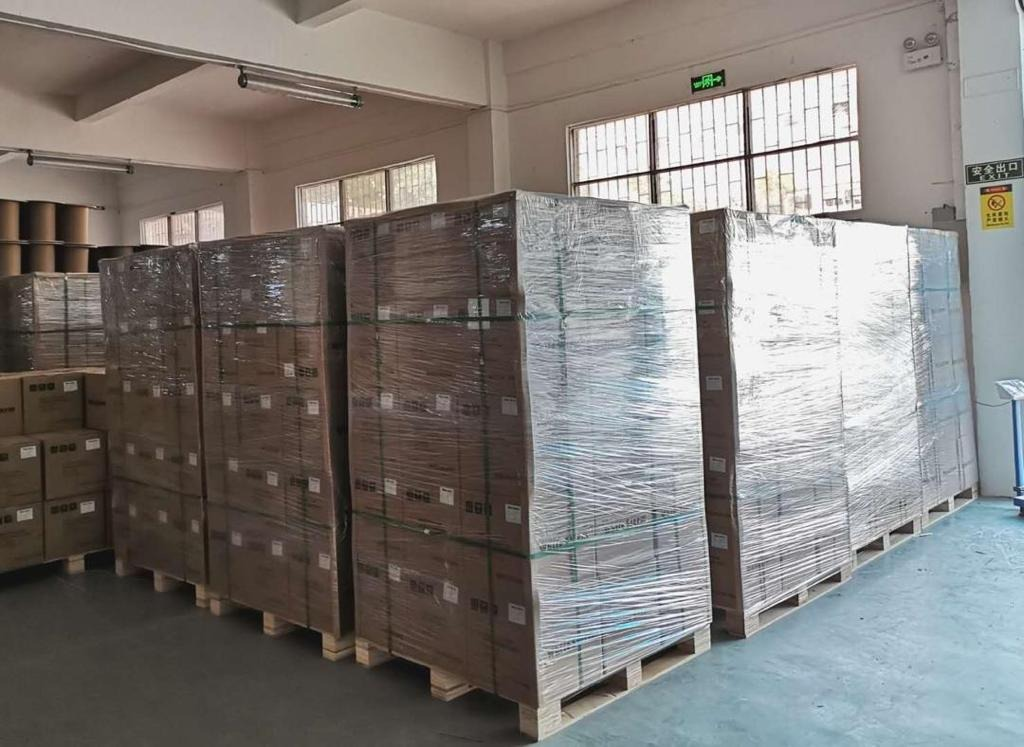

Packing:
Wooden Spool:1~2km per spool+carton box
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
