to the home cable fiber optic network price

to the home cable fiber optic network price

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJYXCH

Brand: OEM

Place Of Origin: China

Fiber Cores: 1 2 4 6 8 12 core

Jacket: PE PVC LSZH HDPE

Wire: FRP/KFRP/Steel Wire

Cable Weight(kg/km): 22kg/km

Core Type: G652 G657A

Package: 1km/2km per wooden drum + outer box

Keyword: FTTH drop optical fiber cable

Application: Outdoor

Cable Diameter: 2.0X5.0mm

Certification: ISO9001,ROHS,SARFT

Packaging & Delivery

Selling Units:	Kilometer

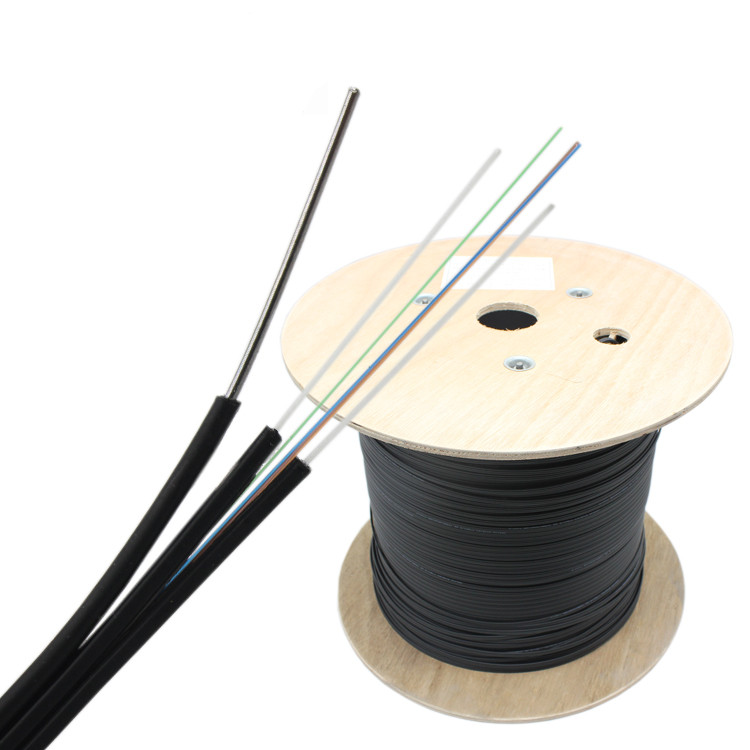

Package Type:	1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

fiber optic cable FTTH Drop Cable Outdoor 4 Core FTTH Cable

FTTH Outdoor Fiber Optic Cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

▪ GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)
▪ GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting)FEATURES: ▪

Product Name:home fiber optic network,fiber optic to the home,drop cable fiber,cable fiber optic price,fiber optic to the home,drop cable fiber,fiber ethernet cable,ftth fiber to the home,drop wires,four core fiber optic cable

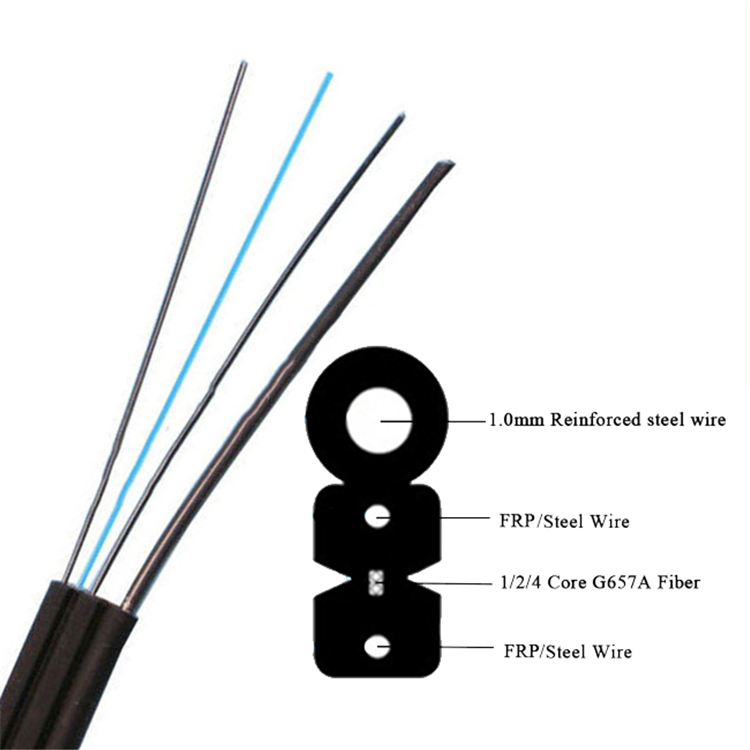

Cable Cross -Section:

1)Good mechanical and environmental characteristics;

2)Flame retardant characteristics meet the requirements of relevant
standards;

3)The mechanical characteristics of jacket meet the requirements of relevant standards;

4)Soft, flexible, easy to lay and splice, and with big capacity data transmission.

Fiber Count: 1,2,4,6,12 Cores
Fiber Model: Single Mode
Fiber Type: G652D; G655C; G657A1; 50/125; 62.5/125; OM3; OM4 As Options

Standard: Comply with standard YD/T1997-2009
Strength Member: Steel Wire, FRP, KFRP Messenger: 0.5, 1.0, 1.2mm Optional

Technical Parameter:

Cable Type	Cable Diamter (mm)	Weight (kg/km)	Tensile strength(N)		Crush Resistance(N/100mm)		Minimum bending radius (mm)
			Short-term	Long-term	Short-term	Long-term	Static	Dynamic
GJYXFCH-1	2.0*5.0	21	60	30	1000	300	15	30
GJYXFCH-2	2.0*5.0	21	60	30	1000	300	15	30
GJYXFCH-4	2.0*5.6	21.5	60	30	1000	300	15	30
GJYXCH-1	2.0*5.0	21	60	30	1000	300	15	30
GJYXCH-2	2.0*5.0	21	60	30	1000	300	15	30
GJYXCH-4	2.0*5.6	21.5	60	30	1000	300	15	30

Fiber Count	1F/2F/4F
Attenuation	1310nm≤0.36 1550nm≤0.22
Color of fiber	Blue orange green brown
Fiber type	G652D/G657A/G657A2
Strength member	Steel wire/FRP/KFRP
Outer sheath	LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions	2.0( Height) x 3.0W + 0.1 mm(width)
Operation temperature range	-20°C to + 70 °
Installation temperature range	-0 °C to + 60 C
Transport and storage temperature range	-20 °C to + 70 °C
Tension Load (N)	Short term :800N Long term :500N
Crush Load(N)	Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius	30 x OD
Minimal operation bending radius	15 x OD
Cable marking	The marking length 1meter apart, as required

Application: Outdoor; Self-supporting:

1. High-performance optical network operating.
2. High-speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.

Characteristics:

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Inexpensive and can reduce operating costs
· Two parallel steel wires/FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
· Long delivery length.
