4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables
4core ftth fiber optic for home drop cables

4core ftth fiber optic for home drop cables

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJYXFCH

BrandOEM

Place Of OriginChina

Fiber Cores1 2 4 6 8 12 core

JacketPE PVC LSZH HDPE

WireFRP/KFRP/Steel Wire

Cable Weight(kg/km)22kg/km

Core TypeG652 G657A

Package1km/2km per wooden drum + outer box

KeywordFTTH drop optical fiber cable

ApplicationOutdoor

Cable Diameter2.0X5.0mm

CertificationISO9001,ROHS,SARFT

Packaging & Delivery
Selling Units: Kilometer
Package Type: 1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

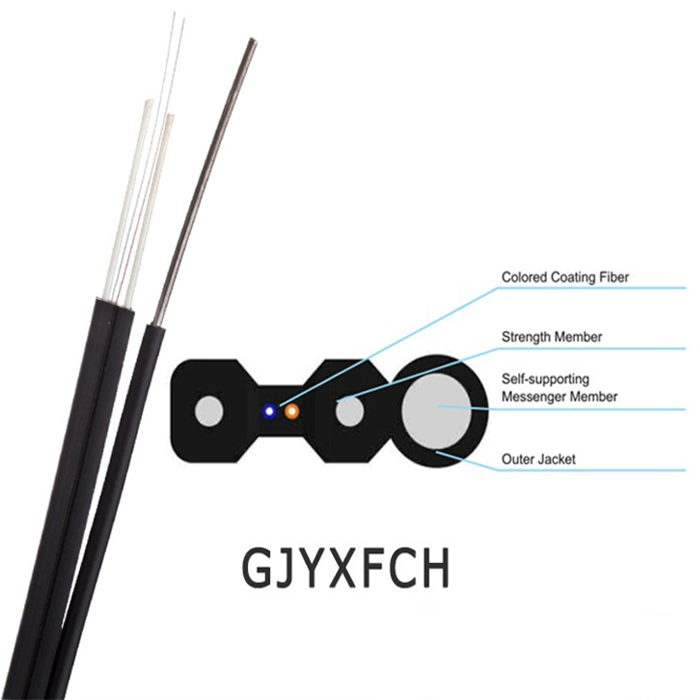

GJYXFCH 4 core G657A2 ftth fiber optic drop cable

The FTTH drop cables are with flame retardant cable sheath and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.


The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member with steel wire.



Fiber Type: G652D, G655,G657A,G657B

Messenger: 0.5, 1.0, 1.2mm Optional

Strength Member: Steel Wire, FRP, KFRP

Jacket: PVC/LSZH

Color: Black /Grey/White


Product Name:fiber optic for home,drop cables,fiber to the home ftth,FTTH Drop Cable,home fiber optic network,fiber optic to the home,drop cable fiber,cable fiber optic price,fiber optic to the home,drop cable fiber,fiber ethernet cable,ftth fiber to the home,drop wires,four core fiber optic cable

drop cables
ftth fiber to the home

Description:

GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)

GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)

GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)

GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting)

Optical Characteristics:

1. Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standard.
3. The mechanical characteristics meet the requirements of relevant standard.
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission.
5. Meet various requirements of market and clients.

Parameters:

Type Fiber Count Specifications Weight Tensile(N) Crush(N) Bending Radius(mm)
(mm) (kg/km) Long Short Long Short Static Dynamic
    term term term term
GJYXCH 1, 2, 4 2.0×5. 0 18. 1 100 200 1000 2200 15 30
Low friction GJYXCH 1, 2 1. 6×3.7 15. 2 100 200 1000 2200 15 30
GJYXDCH 4 2.0×6. 0 18. 2 100 200 1000 2200 15 30
GJYXFCH 1, 2, 4 2.0×5. 0 13.5 40 80 500 1000 15 30
Low friction GJYXFCH 1, 2 1. 6×3.7 17. 0 40 80 500 1000 15 30
GJYXFDCH 4 2.0×6. 0 17. 1 40 80 500 1000 15 30

Noted:



1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging Details:

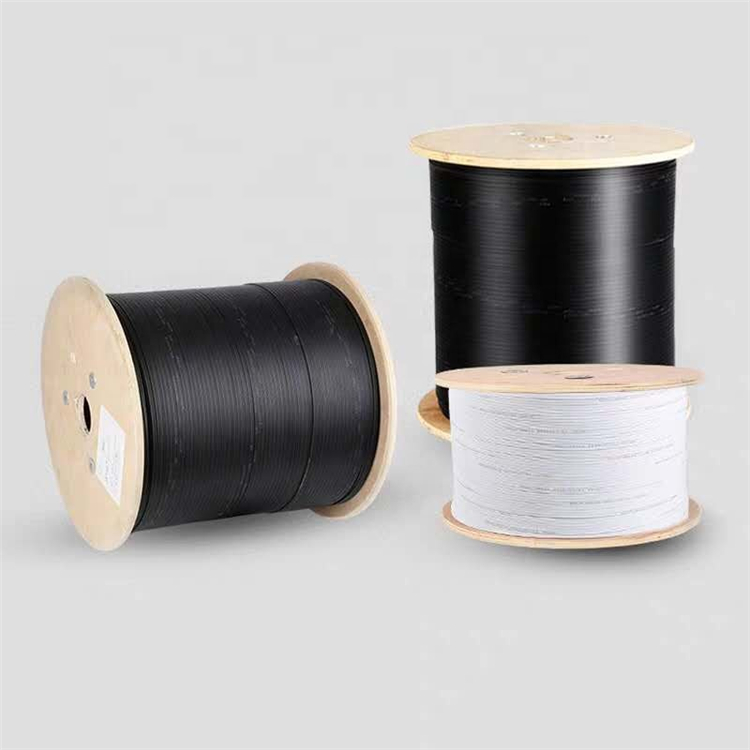

1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

ftth packing (3)

Supply Ability & Additional Information

Packaging1km/2km per wooden drum + outer box

Productivity5000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,Express Delivery
