GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable

GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJYXFCH

BrandOEM

Place Of OriginChina

Fiber Cores1 2 4 6 8 12 core

JacketPE PVC LSZH HDPE

WireFRP/KFRP/Steel Wire

Cable Weight(kg/km)22kg/km

Core TypeG652 G657A

Package1km/2km per wooden drum + outer box

KeywordFTTH drop optical fiber cable

ApplicationOutdoor

Cable Diameter2.0X5.0mm

CertificationISO9001,ROHS,SARFT

Packaging & Delivery
Selling Units: Kilometer
Package Type: 1km/2km per wooden drum + outer box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
GJYXFCH FTTH Self-supporting Fiber Optical Drop Cable

FTTH Outdoor Fiber Optic Cable GJXFH/GJXH are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

The FTTH drop cables are with flame retardant cable sheath and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

Product Name:fiber optic line,ftth fttx,ftth fiber to the home, drop cables,fiber optic for home,fiber to the home ftth,home fiber optic network,FTTH Drop Cable,fiber optic to the home,drop cable fiber

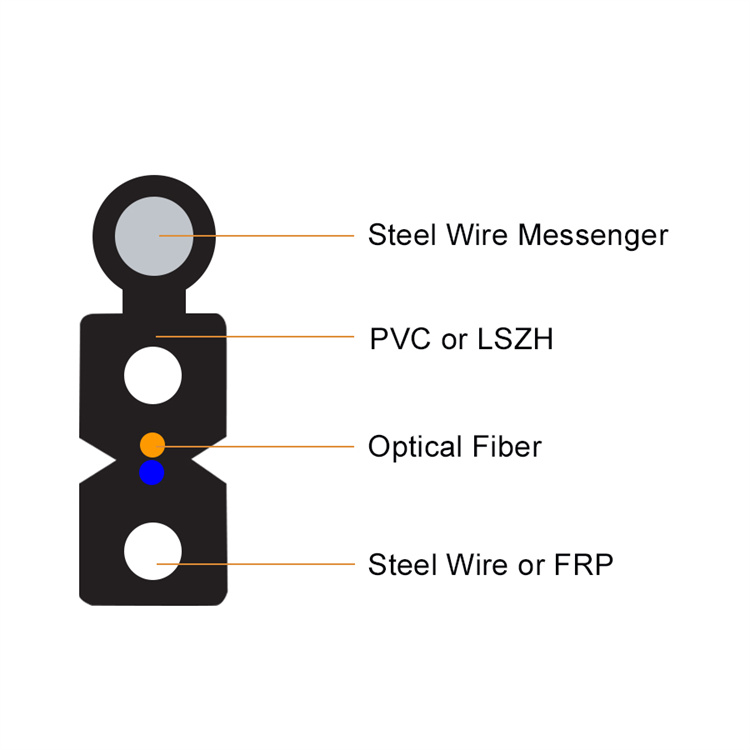

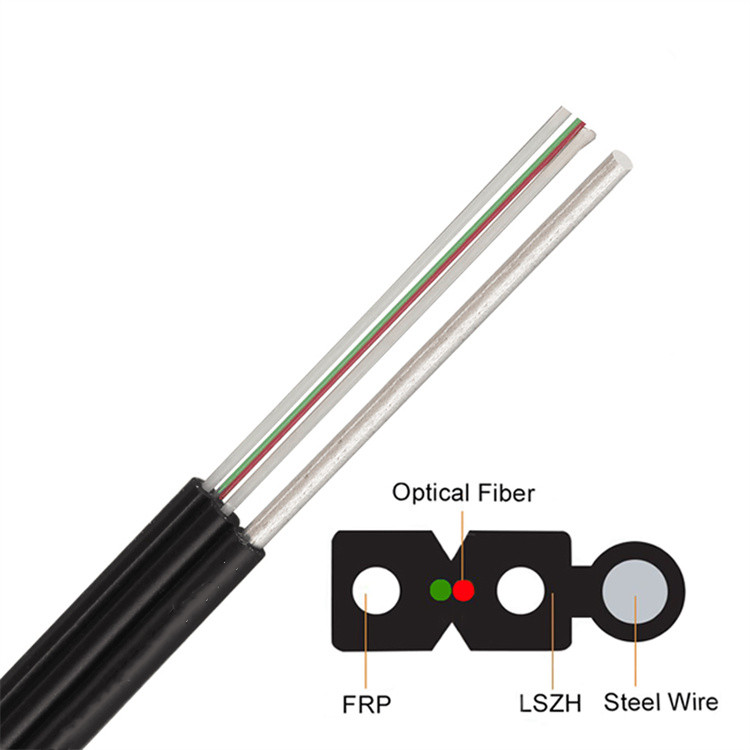

Cable Cross -Section:
drop cables

Characteristics:

  1. 1)Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
  2. 2)Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
  3. 3)Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
  4. 4)Simple structure, light weight and high practicability;
  5. 5)Novel flute design, easily strip and splice, simplify the installation and maintenance;
  6. 6)Low smoke, zero halogen and flame retardant sheath.

Specification:
item
value
Model Number
GJYXFCCH/GJYXCCH
Brand Name
OEM
Cable Structure
Tight buffer Self-support FTTH cable
Application
Outdoor Aerial
Fiber options
G657A1, G657A2, G652D
Fiber Count
1-4
strength member
1.0mm steel wire or FRP
material of jacket
UV and flame resistant LSZH
mesenger member
1.0/1.2 mm or 7*0.33 steel wire
fiber to the home ftth
fttx network
drop cable fiber

Application:

●  Internal FTTH applications horizontal and riser.
●  Clipping to surfaces including skirting boards.
●  Short distance external use with black LSZH jacket.

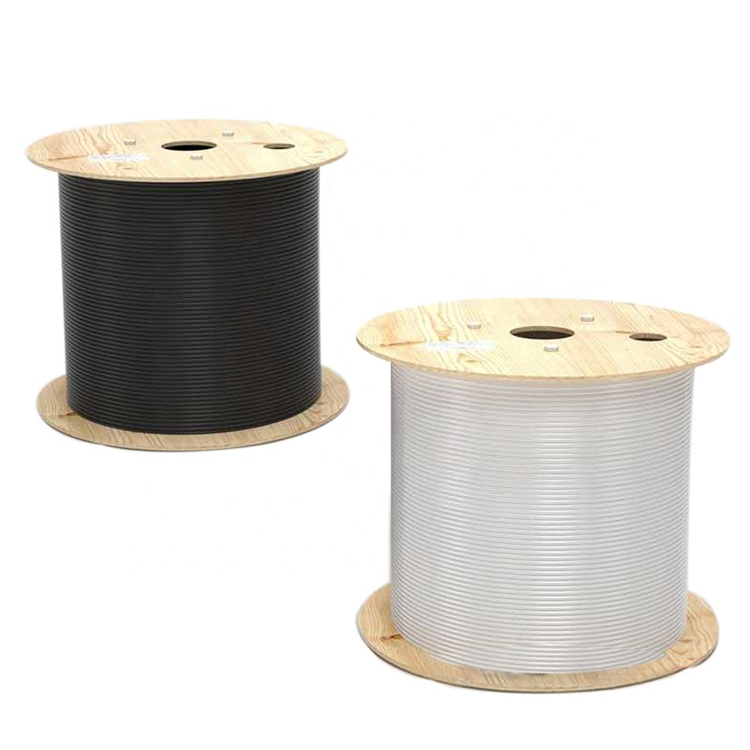

Packing:

1~2KM per wooden roll + carton box

ftth packing 1 (1)
Supply Ability & Additional Information

Packaging1km/2km per wooden drum + outer box

Productivity5000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,Express Delivery
