Model No.: GJSFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10

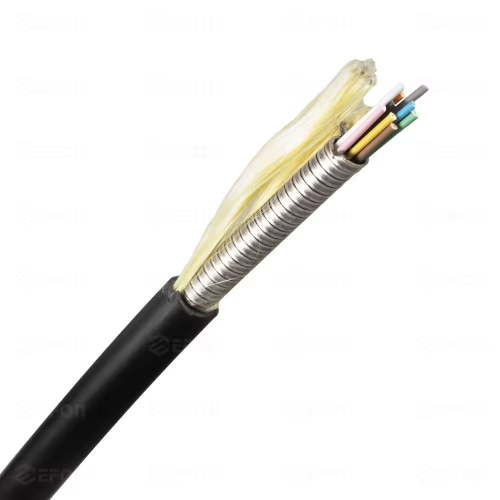

Product Name: Spiral steel armored Indoor fiber optic cable
Cable Type: armored
Tight Buffer: 0.6 or 0.9mm
Jacket Material: LSZH/OFNP/TPU
Fiber Count: 2-12 Cores
Fiber: 50/125,62.5/125,G657A1,G652D
Application: Duct and Aerial
OEM: Available
Type: armoured optical fiber cable
Certification: ISO9001:2015 and RoHs
| Selling Units: | Kilometer |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
12 24 fiber color code optic cable cost per meter

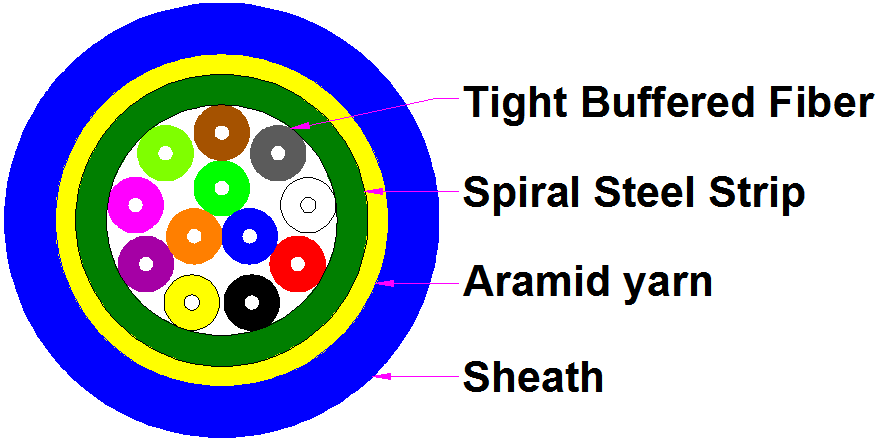

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.
Indoor/Outdoor GJSFJV With CST Armored Cable is designed for Outdoor/lndoor install which fiber counts upto 24fibers, Fiber optic cable special design used for campus backbone (inter-building), building backbone (intra-building), together with outdoor and indoor installation. Small diameter and light weight design to save space inside duct. Designed for duct, underground conduit installation. Anti-rodent.Armor:Corrugated Steel Tape.Outer Jacket:UV and flame resistant LSZH
1.2 Feature
A. Flexible, high compressive property, excellent wear and corrosion resistance, good oil resistance;
B. Good mechanical and environmental characteristic, wide operating temperature range;
C. Meet the requirements of RoHS requirements
1.3 Application
A. The end of the cable can be processed into fiber connector, suitable for indoor and outdoor environment;
B. Used in temperature measurement of tunnel fire fighting or industrial environment;
C. Used in physical examination of building such as bridge, warehouse, etc
1.4 Cable Properties
Transport Temperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
2. Optical Characteristics& Technical Parameters
2.1 Technical Parameters
| Cable Code | Cable Diameter mm | Cable Weight(Ref) kg/km | TBF Diameter μm | Tensile strength Long/Short term mm | Crush Resistance Long/short term N/100mm | Bending Radius Dynamic/Static mm | |
| PVC jacket | LSZH jacket | ||||||
| GJSFJH | Customized | 8.0-25 | 10.0-50 | 600/900 | 300/600 | 500/1000 | 60/30 |
| Fiber Type | Attenuation | OFL | Valid mode band width | 10G Ethernet link length SX | Min. bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Typical | Max. | Typical | Max. | | | | | |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | | | | | | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | | | | | | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
| OM1 | | | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 |
| OM2 | | | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 |
| OM3 | | | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | | | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 |
3. Packing and shipping
3.1 The cables are packed in wooden drums andthen in carton box
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
GT *** xxFIBRE Month/Year XXXXM
l GT: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
Packaging: Individual Package
Productivity: 5000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer/Kilometers per Month
Certificate: ISO9001:2015 and RoHs
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
