tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable
tight buffer splice optical internet fiber optic cable

tight buffer splice optical internet fiber optic cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJSFJV

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Product NameSpiral steel armored Indoor fiber optic cable

Cable Typearmored

Tight Buffer0.6 or 0.9mm

Jacket MaterialLSZH/OFNP/TPU

Fiber Count2-12 Cores

Fiber50/125,62.5/125,G657A1,G652D

ApplicationDuct and Aerial

OEMAvailable

Typearmoured optical fiber cable

CertificationISO9001:2015 and RoHs

Packaging & Delivery
Selling Units: Kilometer
Package Type: Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

Tight buffer splice optical internet fiber optic cable price per meter

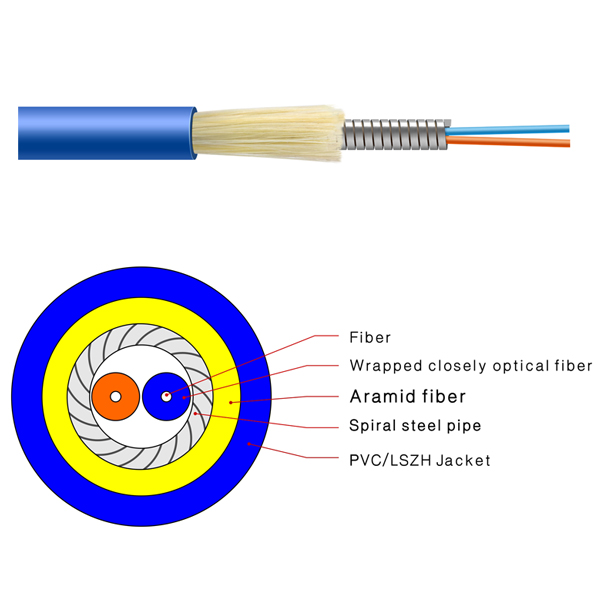

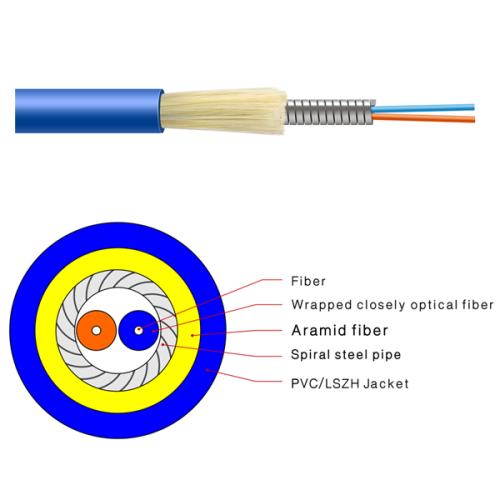

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Indoor/Outdoor GJSFJV With CST Armored Cable is designed for Outdoor/lndoor install which fiber counts upto 24fibers, Fiber optic cable special design used for campus backbone (inter-building), building backbone (intra-building), together with outdoor and indoor installation. Small diameter and light weight design to save space inside duct. Designed for duct, underground conduit installation. Anti-rodent.Armor:Corrugated Steel Tape.Outer Jacket:UV and flame resistant LSZH

Product Name:tight buffer fiber optic cable,internet fiber optic cable price per meter,splice optical cable, 12 fiber cable ,fiber single mode cable,fiber optic wires,armoured fiber cable,fiber optic cable setup,optical fiber cable connection,tyes of optical fiber

om4 multimode

Product Features/ PRODUCT

·2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.。
·Flame retardant outer sheath provide good safety.

Product Application / PRODUCT

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,Fiber Optic Patch Panel,fiber to the desk,etc
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·Small installation space cabling

Standards/ PRODUCT

GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

sm fiber optic cablefiber single mode cable12 fiber cable

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation      (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth
   (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm







Technical Parameters/ PRODUCT


  Cable Type


  Fiber Count


  Tight Diameter
     mm


 Cable Diameter
     mm


 Cable Weight     Kg/km



Tensile Strength       Long/Short Term
     N



Crush Resistance    Long/Short Term
     N/100m



 Bending Radius
 Static/Dynamic
     mm

GJSFJV

2

0.6

3.2

15

300/750

200/1000

20D/10D

GJSFJV

2

0.9

4.0

28

 300/750

200/1000

20D/10D

Storage/Operating Temperature : -20℃ to + 60℃

Packing:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Packing
Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port

Shanghai/Guangzhou/Shenzhen

Lead Time
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.



Supply Ability & Additional Information

PackagingIndividual Package

Productivity5000 Kilometer/Kilometers per

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 Kilometer/Kilometers per Month

CertificateISO9001:2015 and RoHs

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
