Model No.: GJSFJBV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Product Name: Spiral steel armored Indoor fiber optic cable
Cable Type: armored
Tight Buffer: 0.6 or 0.9mm
Jacket Material: LSZH/OFNP/TPU
Fiber Count: 2-12 Cores
Fiber: 50/125,62.5/125,G657A1,G652D
Application: Duct and Aerial
OEM: Available
Type: armoured optical fiber cable
Certification: ISO9001:2015 and RoHs
| Selling Units: | Kilometer |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
duplex armoured fiber single mode cable optic wires

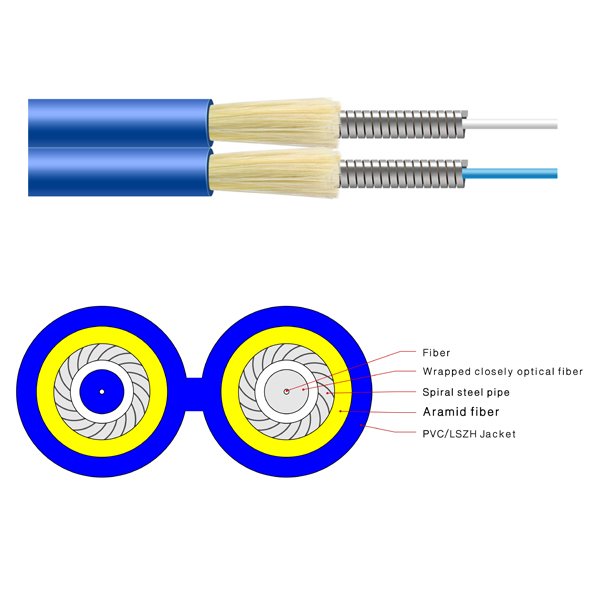

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.
Indoor/Outdoor GJSFJBV With CST Armored Cable is designed for Outdoor/lndoor install which fiber counts upto 24fibers, Fiber optic cable special design used for campus backbone (inter-building), building backbone (intra-building), together with outdoor and indoor installation. Small diameter and light weight design to save space inside duct. Designed for duct, underground conduit installation. Anti-rodent.Armor:Corrugated Steel Tape.Outer Jacket:UV and flame resistant LSZH.
Product Name:fiber single mode cable,fiber optic wires,armoured fiber cable,fiber optic cable setup,optical fiber cable connection,tyes of optical fiber,fiber optic mode,fiber cable cost,om4 multimode,optical fibre broadband,fiber optic cable types,fiber optic cable internet,fiber optic supplier,sm fiber optic cable,fiber optic cable categories,internet cable fiber optic,type of fiber optic cables
·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.
Simplex, Duplex Indoor Armored cable is composed by SUS flexible tube, Kevlar strengthening member and outer Sheath. With excellent mechanical performance of tensile strength and crush resistance, the cable is the ideal choice of cabling,processing patch cord, LAN and other communication applications.
·GJSFJBV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth （Class A） | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
|
Cable Type |
Tight Diameter | | | |
|
Bending Radius Static/Dynamic |
| GJSFJBV | 0.6 | 2.0*4.1 | 30 | 300/750 | 200/1000 | 20H/10H |
| GJSFJBV | 0.6 | 2.8*5.7 | 35 | 300/750 | 200/1000 | 20H/10H |
| GJSFJBV | 0.9 | 3.0*6.1 | 43 | 300/750 | 200/1000 | 20H/10H |
Storage/Operating Temperature : -20℃ to + 60℃
Packing:
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
Packaging: Individual Package
Productivity: 5000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer/Kilometers per Month
Certificate: ISO9001:2015 and RoHs
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
