indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection
indoor 12cores types of optical fiber cable connection

indoor 12cores types of optical fiber cable connection

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJAFKV

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Product NameSpiral steel armored Indoor fiber optic cable

Cable Typearmored

Tight Buffer0.6 or 0.9mm

Jacket MaterialLSZH/OFNP/TPU

Fiber Count2-12 Cores

Fiber50/125,62.5/125,G657A1,G652D

ApplicationDuct and Aerial

OEMAvailable

Typearmoured optical fiber cable

CertificationISO9001:2015 and RoHs

Packaging & Delivery
Selling Units: Kilometer
Package Type: Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

Indoor 12cores types of optical fiber cable connection

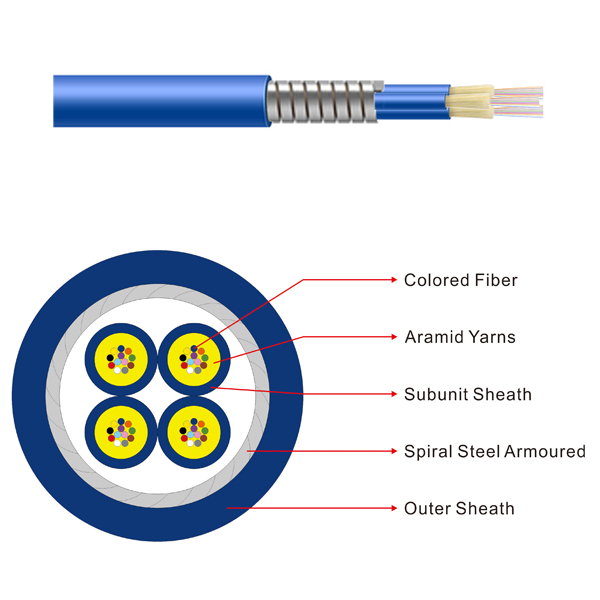

The structure of the optical fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath.

Product Name:fiber optic cable setup,optical fiber cable connection,tyes of optical fiber,fiber optic mode,fiber cable cost,om4 multimode,optical fibre broadband,fiber optic cable types,fiber optic cable internet,fiber optic supplier,sm fiber optic cable,fiber optic cable categories,internet cable fiber optic,type of fiber optic cables

Product Picture/ PRODUCT

fiber optic supplier

Product Features/ PRODUCT

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Product Application / PRODUCT

Various conventional connector products.
Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
· Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
· Small installation space and occasional wiring.

Prouduct Standards/ PRODUCT

GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.

fiber optic modefiber cable costom4 multimodeinternet fiber optic cable price per meter12 fiber cable

Optical Characteristics / PRODUCT



G.652

G.655

50/125 μm

62.5 / 125 μm

Attenuation
(+ 20 ° C)

@ 850nm





≤3.0dB / km

≤3.0dB / km

@ 1300nm





≤1.0dB / km

≤1.0dB / km

@ 1310nm

≤0.36dB / km

-





@ 1550nm

≤0.22dB / km

≤0.23dB / km





Bandwidth
(Class A)

@ 850





≥ 500MHZ · km

≥ 500MHZ · km

@ 1300





≥1000MHZ · km

≥600MHZ · km

Numerical aperture







0.200 ± 0.015NA

0.275 ± 0.015 NA

Cable cut-off wavelength



≤1260nm

≤1480nm







Structure parameters/ PRODUCT

Cable type
   Cable Type

Fiber number
 Fiber Count


 Subunit outer diameter  Subunit Diameter
mm

Cable diameter
   Cable a Diameter
 mm

Cable weight
   Cable Weight
 Kg / km

Allowable tension
      Tensile Strength
Long / Short Long / Short Term N

Allowable pressure
Crush Resistance
 Long / Short
Long / Short Term N / 100m

Bending radius

Bending Radius
  Static / Dynamic
Static / Dynamic mm

GJFJV + SV

twenty four

7.0

5.0

64

300/750

200/1000

20D / 10D

GJFJV + SV

48

10.0

6.0

100

300/750

200/1000

20D / 10D

Temperature / PRODUCT

Transport temperature

-20 ℃ ~ +60 ℃

storage temperature

-20 ℃ ~ +60 ℃

Installation temperature

-5 ℃ ~ +50 ℃

Operating temperature

-20 ℃ ~ +60 ℃



Packing:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Packing
Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
