spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost
spiral om4 multimode fiber optic mode cable cost

spiral om4 multimode fiber optic mode cable cost

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJSFJV

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Product NameSpiral steel armored Indoor fiber optic cable

Cable Typearmored

Tight Buffer0.6 or 0.9mm

Jacket MaterialLSZH/OFNP/TPU

Fiber Count2-12 Cores

Fiber50/125,62.5/125,G657A1,G652D

ApplicationDuct and Aerial

OEMAvailable

Typearmoured optical fiber cable

CertificationISO9001:2015 and RoHs

Packaging & Delivery
Selling Units: Kilometer
Package Type: Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description:

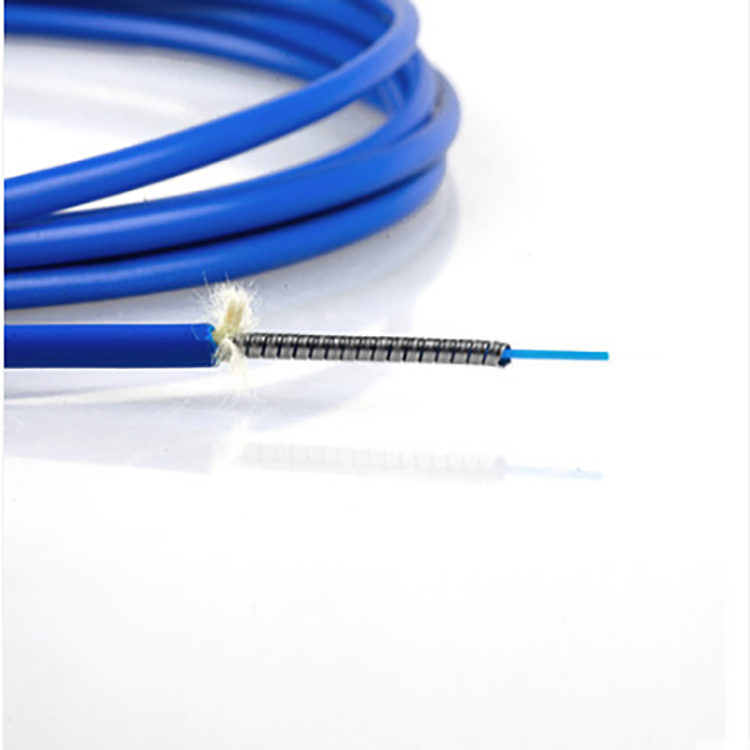

Flexible Spiral Steel Armoured Fiber Cable

spiral steel om4 multimode fiber optic mode cable cost

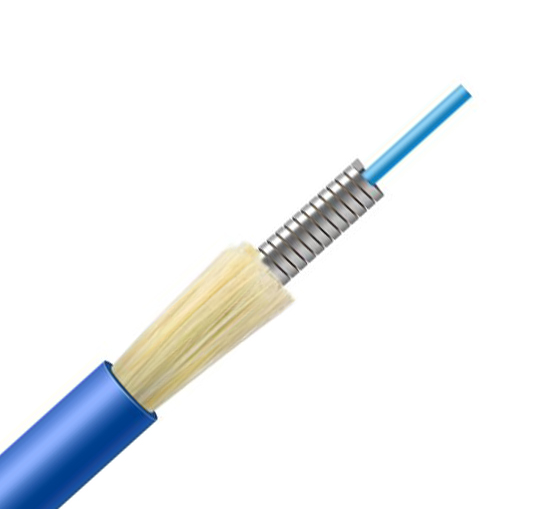

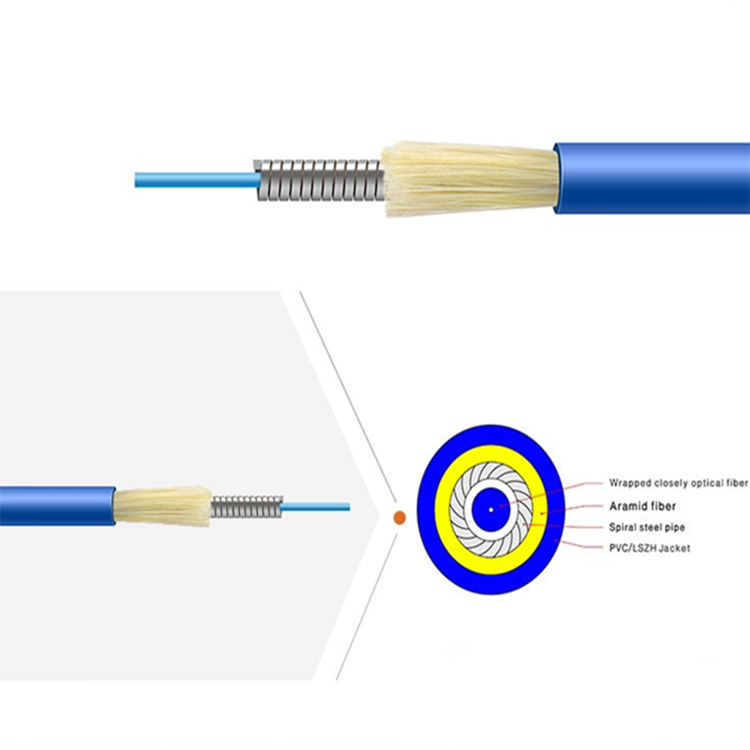

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Indoor/Outdoor GJSFJV With CST Armored Cable is designed for Outdoor/lndoor install which fiber counts upto 24fibers, Fiber optic cable special design used for campus backbone (inter-building), building backbone (intra-building), together with outdoor and indoor installation. Small diameter and light weight design to save space inside duct. Designed for duct, underground conduit installation. Anti-rodent.Armor:Corrugated Steel Tape.Outer Jacket:UV and flame resistant LSZ.Please inquiry us for purchase fiber optic cable.

Product Name:fiber optic mode,fiber cable cost,om4 multimode,optical fibre broadband,fiber optic cable types,fiber optic cable internet,fiber optic supplier

fiber optic mode

optical fiber cable multimode features:

·Stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Small bending radius,light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

splice optical cable application:

Simplex, Duplex Indoor Armored cable is composed by SUS flexible tube, Kevlar strengthening member and outer Sheath. With excellent mechanical performance of tensile strength and crush resistance, the cable is the ideal choice of cabling,processing patch cord, LAN and other communication applications.

fiber optic wires standards:

GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

internet cable fiber opticfiber optic cable internetoptical fibre broadband

armoured fiber cable characteristics:



G.652

G.655

50/125μm

62.5/125μm

Attenuation
  (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth
(Class A)

@850





≥500MHZ·km

≥200MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm





fiber single mode cable technical parameters:


Cable Type


Fiber Count


Tight  Diameter
mm


Cable Diameter
mm


Cable Weight
Kg/km


Tensile Strength
Long/Short Term N


Crush Resistance
Long/Short Term
N/100m


Bending Radius
Static/Dynamic
mm

GJSFJV

1

0.6

2.0

11

300/750

200/1000

20D/10D

GJSFJV

1

0.6

2.2

12

300/750

200/1000

20D/10D

GJSFJV

1

0.6

2.4

13

300/750

200/1000

20D/10D

GJSFJV

1

0.9

3.0

15

300/750

200/1000

20D/10D

Storage/Operating Temperature : -20℃ to + 60℃

Packing:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Packing
Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Supply Ability & Additional Information

PackagingIndividual Package

Productivity5000 Kilometer/Kilometers per

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 Kilometer/Kilometers per Month

CertificateISO9001:2015 and RoHs

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
