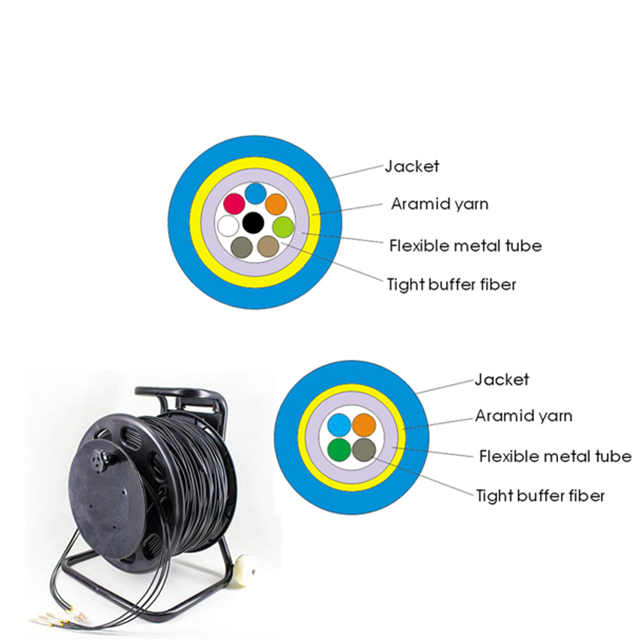

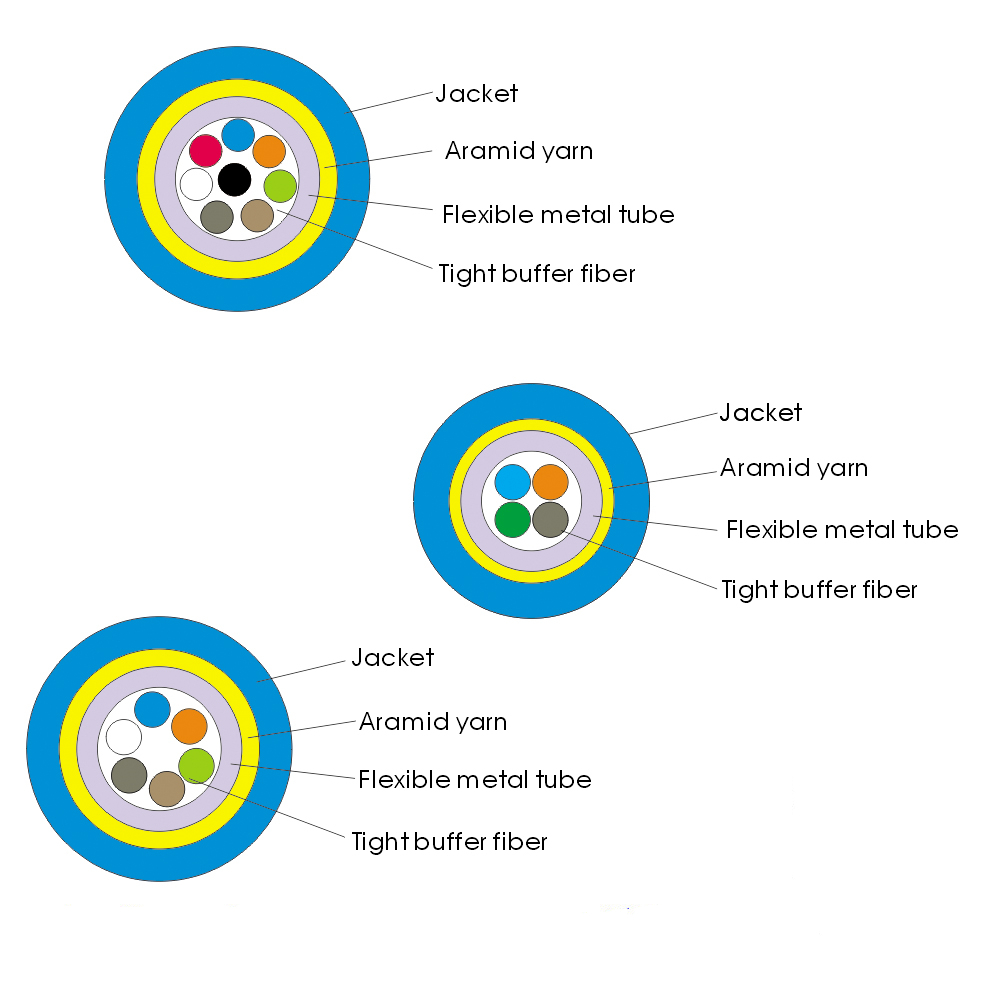

Cable Cross -Section:

Cable Code:

• SXC-III	SXC-II	SXC-I
  Cable Diameter	2.8±0.2mm	2.0±0.2mm	1.6±0.2mm
  Cable Weight	6.9kg/km	5.9kg/km	4.0kg/km
  Tight Buffer Fiber Diameter

•
• Technical Parameter:
•

• Tensile Strength	Short Term	80N	60	50
  	Short Term	150N	120	100
  Crush Resistance	Short Term	100N/100mm	100N/100mm	100N/100mm
  	Short Term	500N/100mm	500N/100mm	500N/100mm
  Bending Radius	Dynamicmm	20XD	20XD	20XD
  	Static	10XD	10XD	10XD

  Optical Charactristics:

• G.652	G.655	50/125μm	62.5/125μm
  Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
  	@1300nm			≤1.0dB/km	≤1.0dB/km
  	@1310nm	≤0.36dB/km	–
  	@1550nm	≤0.22dB/km	≤0.23dB/km
  带宽 （Class A）	@850			≥500MHZ·km	≥500MHZ·km
  	@1300			≥1000MHZ·km	≥600MHZ·km
  数值孔径				0.200±0.015NA	0.275±0.015NA
  Cable Cut-off Wavelength		≤1260nm	≤1480nm

   Environmental Characteristics:

• Transport Temperature	-20℃～﹢60℃
  Storage Temperature	-20℃～﹢60℃
  Installation Temperature	-5℃～﹢50℃
  Operating Temperature	-20℃～﹢60℃







  Characteristics:

  • Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
  • Good performance of flame-retardant
  • Steady performance both in extremely high and low temperature.
  • Excellent geometrical dimension of the fiber；
  •

  Application:

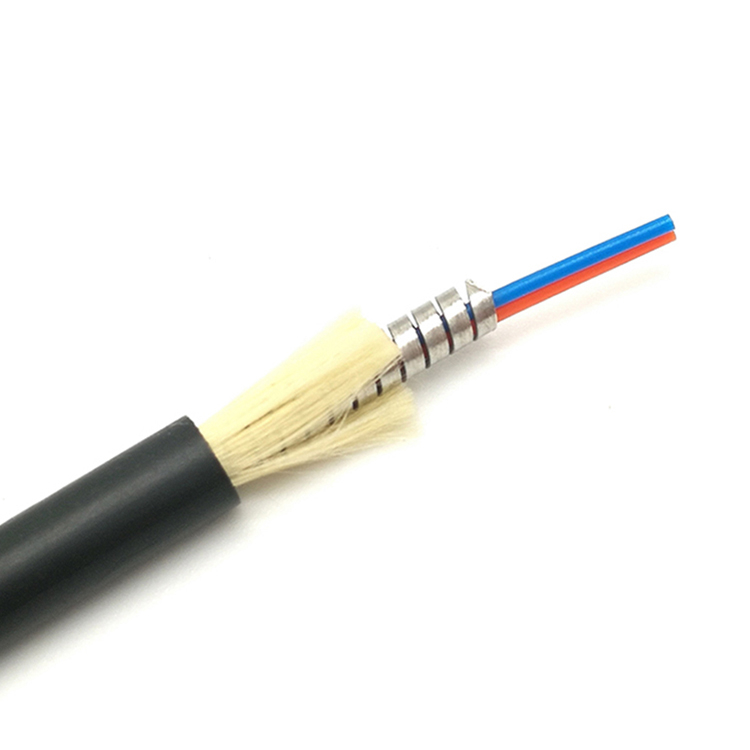

  Simplex, Duplex Indoor Armored cable is composed by SUS flexible tube, Kevlar strengthening member and outer Sheath. With excellent mechanical performance of tensile strength and crush resistance, the cable is the ideal choice of cabling,processing patch cord, LAN and other communication applications.

  Standard:

  GJFSJV cable complies with Standard YD/T1258.2-2003、ICEA-596、GR-409、IEC794 etc;
