Model No.: GJSFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Product Name: Spiral steel armored Indoor fiber optic cable
Cable Type: armored
Tight Buffer: 0.6 or 0.9mm
Jacket Material: LSZH/OFNP/TPU
Fiber Count: 2-12 Cores
Fiber: 50/125,62.5/125,G657A1,G652D
Application: Duct and Aerial
OEM: Available
Type: armoured optical fiber cable
Certification: ISO9001:2015 and RoHs
| Selling Units: | Kilometer |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Amoured: steel Tube+stainless braided
Mode: Single mode, Multimode
Fiber core: 2~12 cores
Application: Duct and Aerial
Jacket: PVC or LSZH material
Product Name:internet cable fiber optic,single mode cable,splice fiber optic cable,multimode mode fiber,optical cable type,optical fiber cable types,optical fibre broadband,optical fibre description
Features of splice optical cable:
1.Good mechanical and environmental characteristics;
2.Flame retardant characteristics meet the requirements of relevant standards;
3.The mechanical characteristics of jacket meet the requirements of relevant standards;
4.Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5.Meet various requirements of market and clients

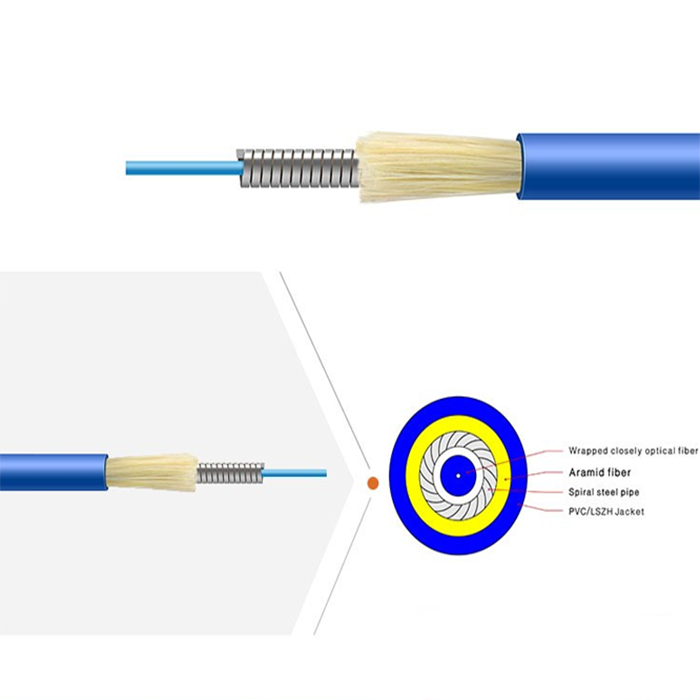

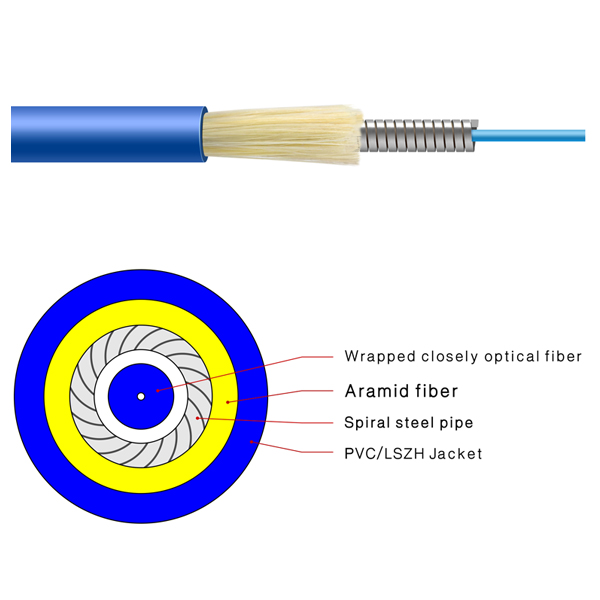

1.Structure Diagram for fiber optic wires

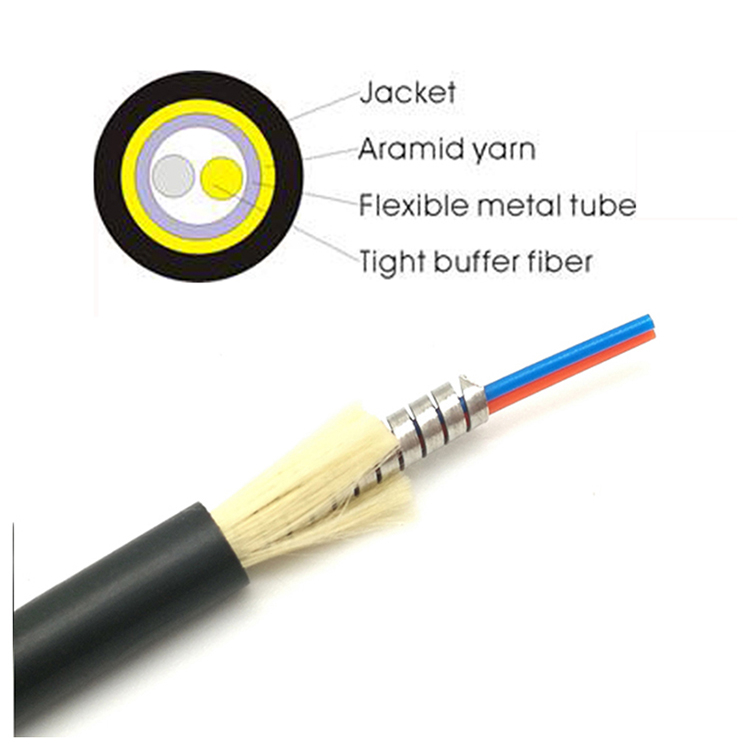

2.armoured fiber cable technical characteristics:
0.6 tight buffer fiber,
High strength kevlar yarn member
Steel armored flexible tube,increase the cable's twist resistance.
3.Technical Parameters for fiber single mode cable
| Out Diameter (MM) | Tight buffer Diameter (MM) | Weight (KG) | Minimum allowable | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short cterm | long term | short term | long term | ||||
| 2.8 | 0.6 | 22 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 3 | 0.6 | 23 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
4.Optical Characteristics
| Fiber Sort | Multimode | G.651 | Ala:50/125 | Graded-index fiber |
| Alb:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2:Zero dispersion shifted | |||
| G.654 | B1.2:Cut-off wavelength shifted | |||
| G.655 | B4:Main technical data for positive dispersion shifted single-mode fiber | |||
5.Application:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Can be installed convenienty and perated simply.

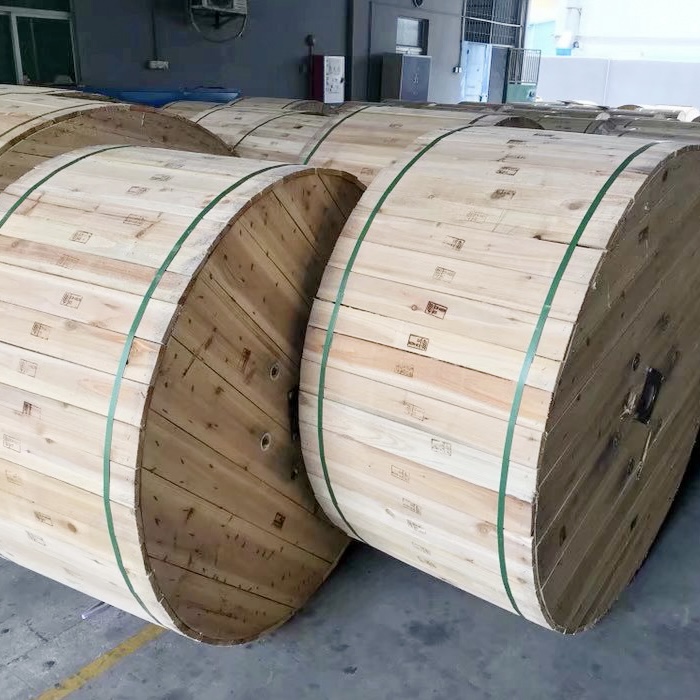

Packaging: Individual Package
Productivity: 5000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer/Kilometers per Month
Certificate: ISO9001:2015 and RoHs
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
