Model No.: GJSFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Product Name: Spiral steel armored Indoor fiber optic cable
Cable Type: armored
Jacket Material: LSZH/OFNP/TPU
Fiber Count: 2-12 Cores
Fiber: 50/125,62.5/125,G657A1,G652D
Application: Duct and Aerial
OEM: Available
Type: armoured optical fiber cable
Certification: ISO9001:2015 and RoHs
Tight Buffer: 0.6 or 0.9mm
| Selling Units: | Kilometer |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Amoured: steel Tube+stainless braided
Mode: Single mode, Multimode
Fiber core: 2~12 cores
Application: Duct and Aerial
Jacket: PVC or LSZH material
Product Name:indoor fiber optic cable,fiber optic cable cable,spiral armored fiber optic cable,fiber optic cable categories,fiber optic cable internet,fiber optic cable type,fiber optic cable types,fiber patch cables,fiber single mode cable,internet cable fiber optic
Features:
Convenience for connection and construction
High intensity and light weight
Provide UV protection, and mould proof, no cleft under stress, adapt to the environment for high fire rating

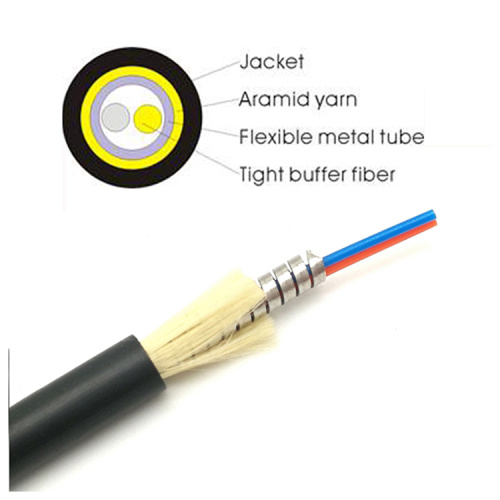

1.Structure Diagram
2.Technical Characteristics:
0.6 tight buffer fiber,
High strength kevlar yarn member
Steel armored flexible tube,increase the cable's twist resistance.
3.Technical Parameters
| Out Diameter (MM) | Tight buffer Diameter (MM) | Weight (KG) | Minimum allowable | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short cterm | long term | short term | long term | ||||
| 2.8 | 0.6 | 22 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 3 | 0.6 | 23 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
4.Optical Characteristics
| Fiber Sort | Multimode | G.651 | Ala:50/125 | Graded-index fiber |
| Alb:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2:Zero dispersion shifted | |||
| G.654 | B1.2:Cut-off wavelength shifted | |||
| G.655 | B4:Main technical data for positive dispersion shifted single-mode fiber | |||
5.Application:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Can be installed convenienty and perated simply.
Packaging: Individual Package
Productivity: 5000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer/Kilometers per Month
Certificate: ISO9001:2015 and RoHs
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
