Model No.: Fan-out Pigtails
Brand: OEM
Connector Type: SC/LC/ST/FC
Jacket: PVC LSZH LSOH PE HDPE
Length: 1M/2M/3M etc.
Fiber Type: G652D,G657A1,G657A2,OM1,OM2,OM3,OM4
Cable Diameter: 0.9/2.0/3.0mm
Application: Telecommunication
Ferrule End-face: UPC,APC
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it
12 cores Fan Out SC SC Fiber Optic Pigtail Single Mode Pigtails
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
The cable assemblies are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). The cable assemblies are well suited for high-density applications. The SC connector uses a rectangular, molded design for quick, easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
Product Name:pigtail sc sc, SC Pigtail single mode,fiber optic pigtails,,pigtail fiber optic,optical pigtail,,lc pigtail single mode,patch cord pigtail, fiber pigtail lc ,SC Pigtail,single mode fiber pigtails,single mode pigtail,fiber optic cable pigtail,pigtail patch cord,pigtail sc,patch cord and pigtail,fiber pigtails patch cords,sc pigtail sm,pigtail apc,sm pigtail,optic pigtail,sc pigtail multimode

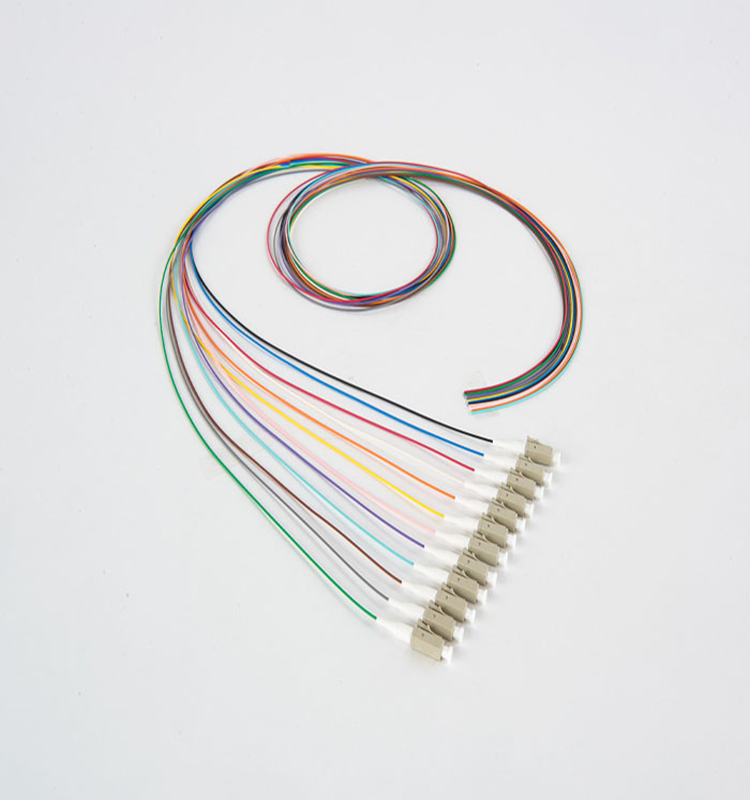

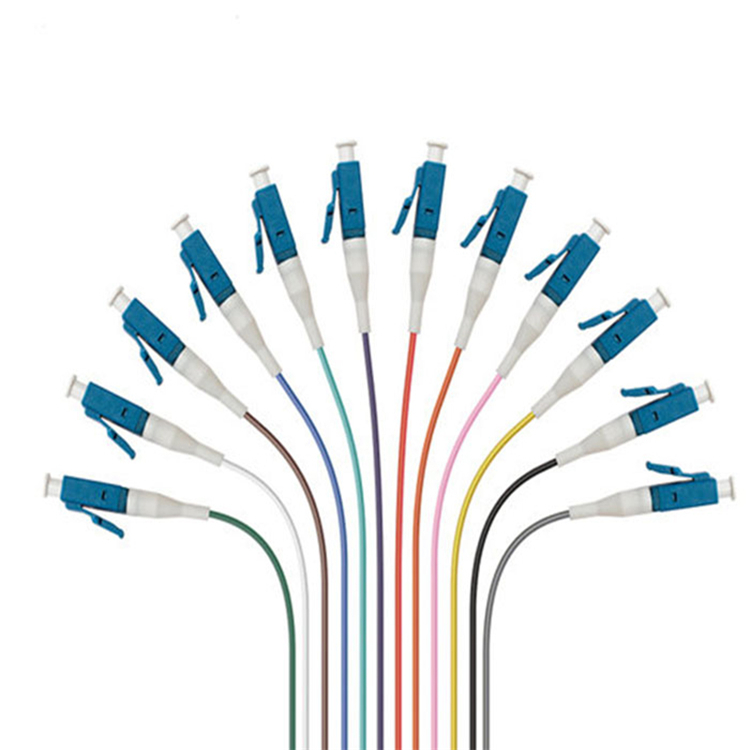

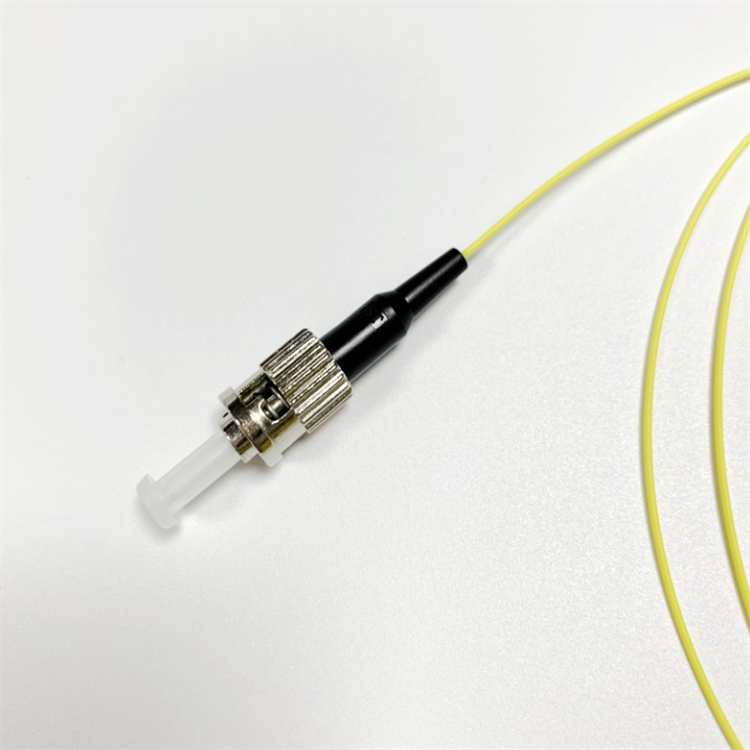

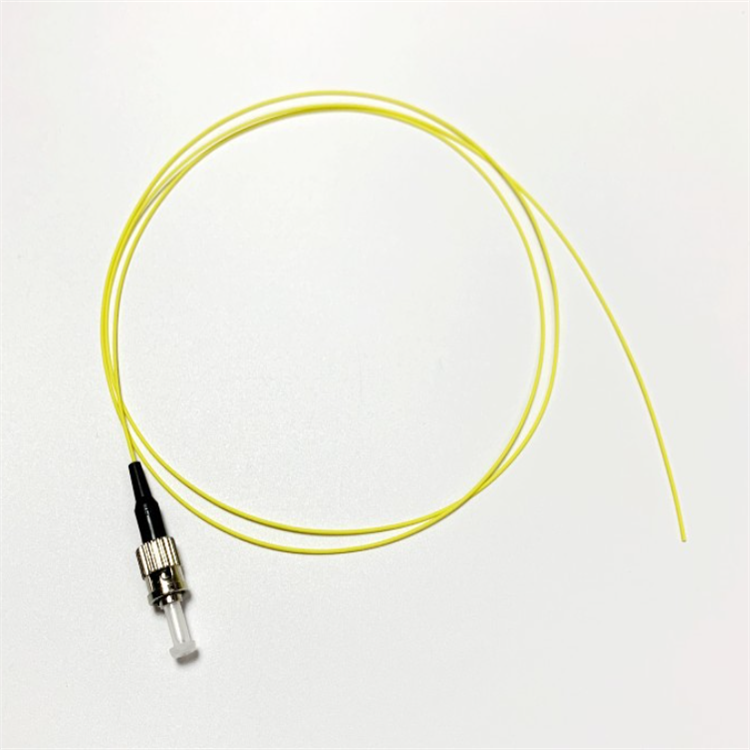

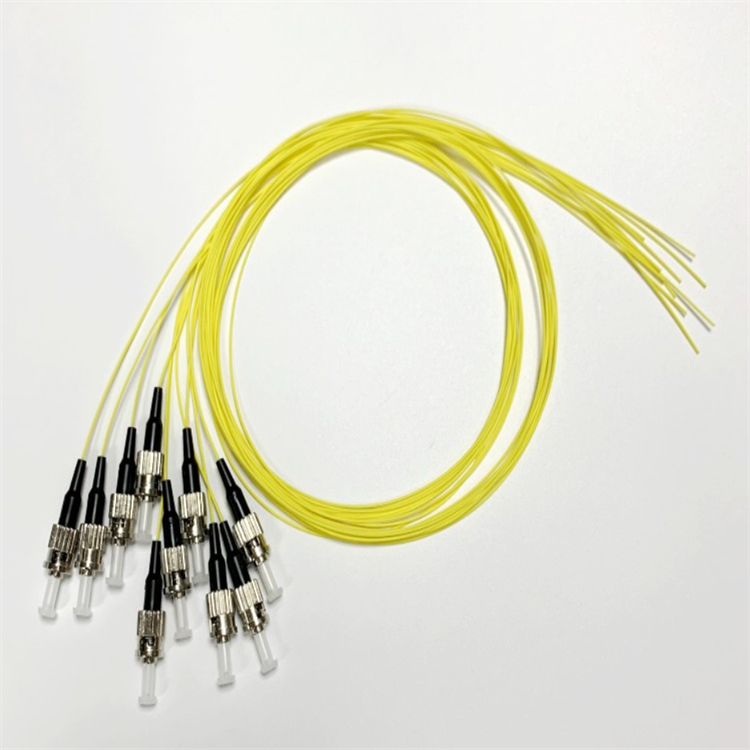

Product Picture:
Fiber Optic Cable Pigtail Features:
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
| Name | Type |
| Fiber patch cord /Jumper | SC FC, ST LC, , MPO, MTRJ,MU |
| Fiber adapter | SC,FC, ST, LC , MPO, e2k,bare , hybrid |
| Fiber connector | LC,SC,ST,FC,MPO |
| Fiber splitter | FBT,PLC |
| Fiber Distribution Box | FDB |
| Fiber optic splice closure | FOSC |
| Fiber Cable | Standred |
| fiber attenuator | Standred |
| Fiber tester and tool | OTDR |
| fiber patch panel | standred |
| Fiber loopback | Standred |
Pigtail Singlemode Quick Detail:
Specification:
| Fiber optic pigtail Parameter | Fiber optic pigtail Single Mode | Fiber optic pigtail Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Features:
Applications:
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
Our service:

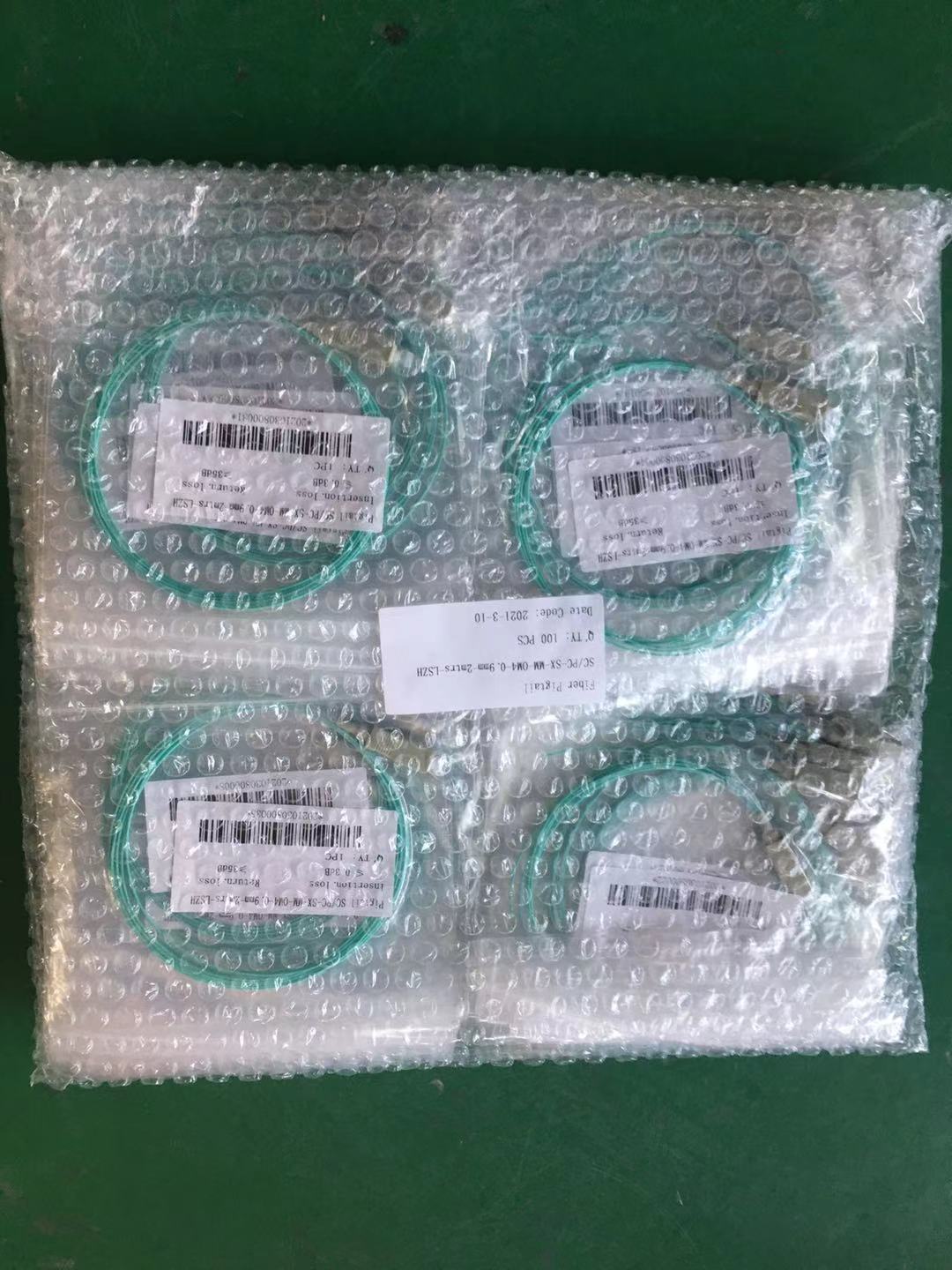

Fiber optic pigtail Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.
Packaging: Individual package,carton box
Productivity: 10000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 10000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
