Model No.: ST Pigtail
Brand: OEM
Connector Type: SC/LC/ST/FC
Jacket: PVC LSZH LSOH PE HDPE
Length: 1M/2M/3M etc.
Fiber Type: G652D,G657A1,G657A2,OM1,OM2,OM3,OM4
Cable Diameter: 0.9/2.0/3.0mm
Application: Telecommunication
Ferrule End-face: UPC,APC
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it

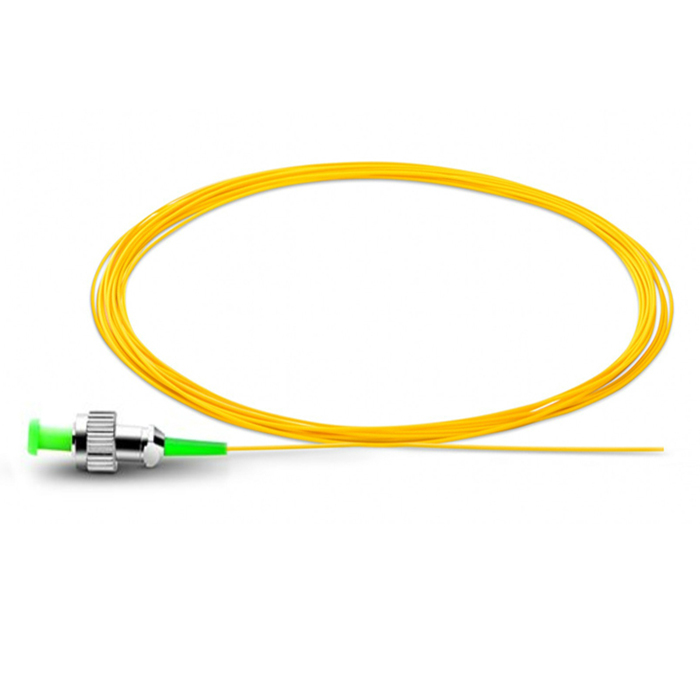

SC/FC/LC/ST Optical Patch Cord fiber optic cable Pigtail
Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.
Pigtail Singlemode Quick Detail:

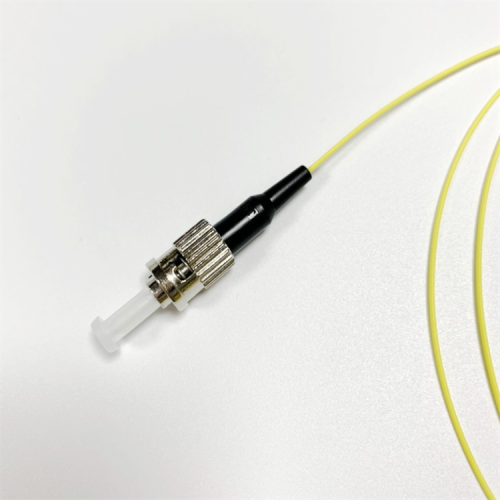

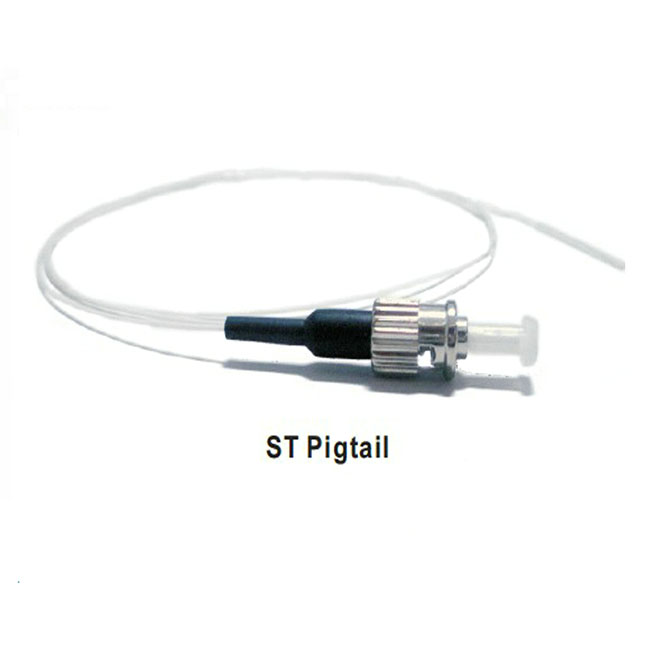

ST Pigtail Single Mode Product Pictures:
Specification:
| Fiber optic pigtail Parameter | Fiber optic pigtail Single Mode | Fiber optic pigtail Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Features:
Applications:
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
Our service:
Fiber optic pigtail Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.
Packaging: Individual package,carton box
Productivity: 10000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 10000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
