Model No.: LC Pigtail
Brand: OEM
Connector Type: SC/LC/ST/FC
Jacket: PVC LSZH LSOH PE HDPE
Length: 1M/2M/3M etc.
Fiber Type: G652D,G657A1,G657A2,OM1,OM2,OM3,OM4
Cable Diameter: 0.9/2.0/3.0mm
Application: Telecommunication
Ferrule End-face: UPC,APC
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it
0.9mm SM MM single mode fiber patch cord LC Pigtail
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
LC cable assemblies are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). LC cable assemblies are well suited for high-density applications. The SC connector uses a rectangular, molded design for quick, easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
Product Name:lc pigtail single mode,patch cord pigtail,fiber pigtail lc,pigtail fiber optic,optical pigtail,patch cord and pigtail,fiber pigtails patch cords

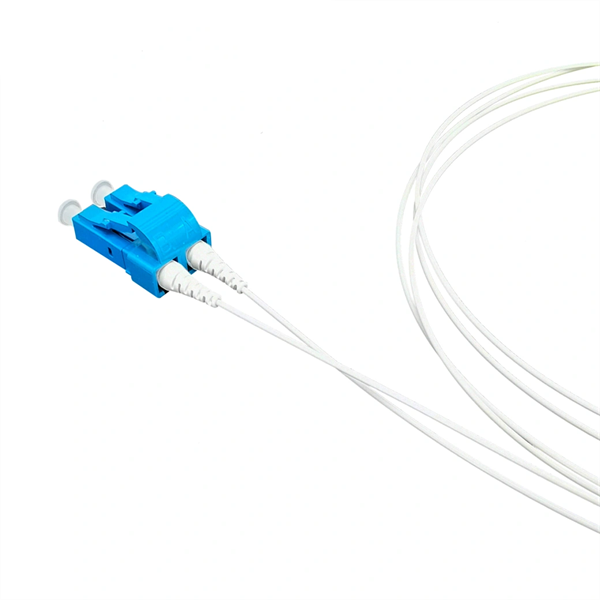

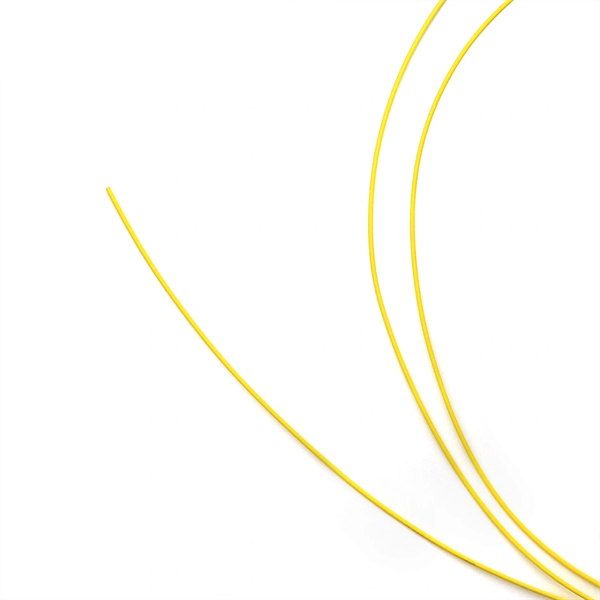

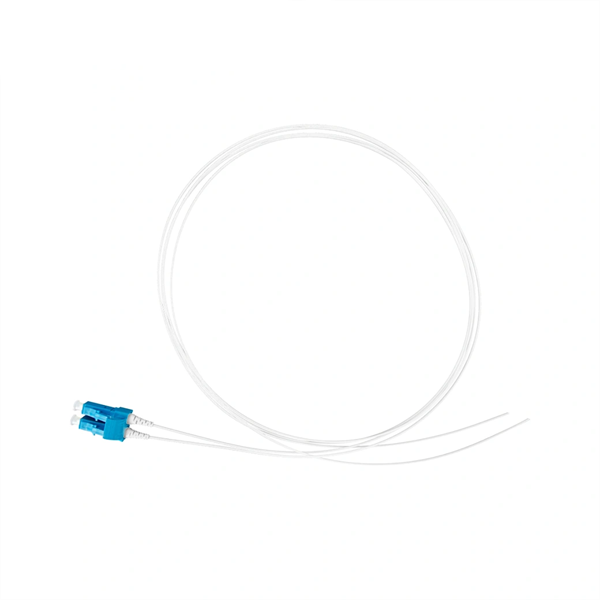

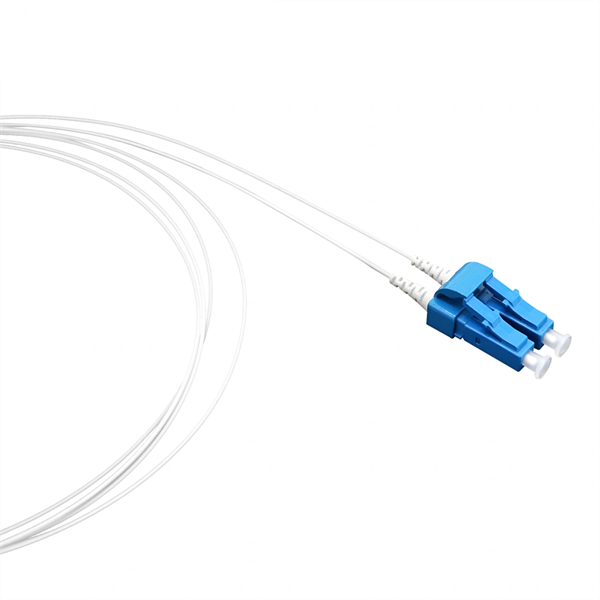

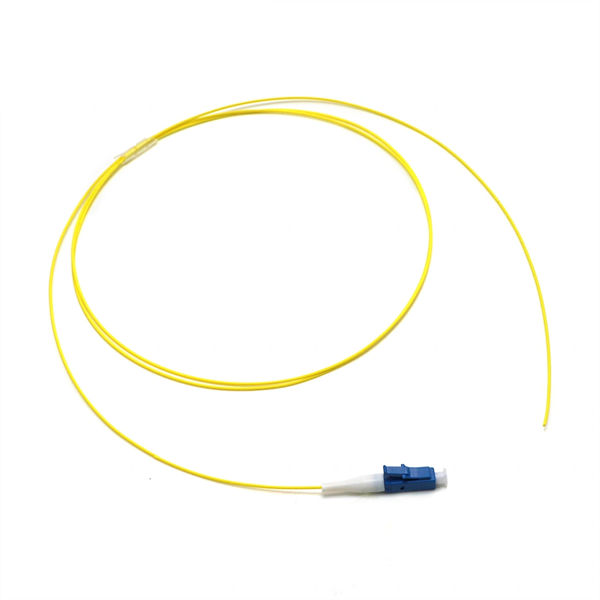

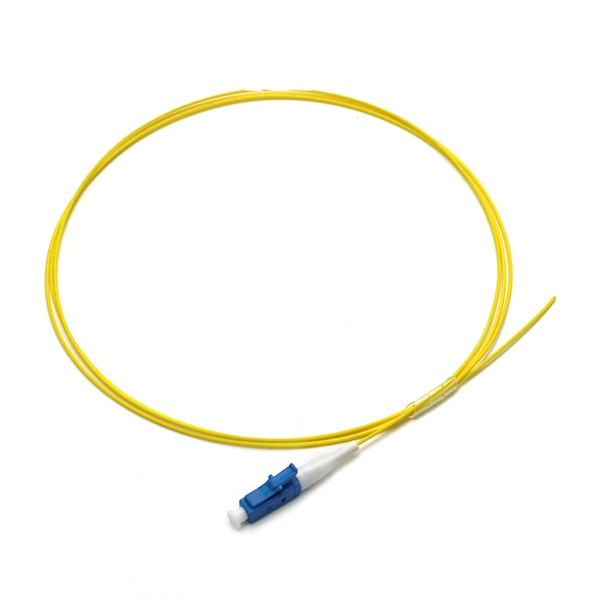

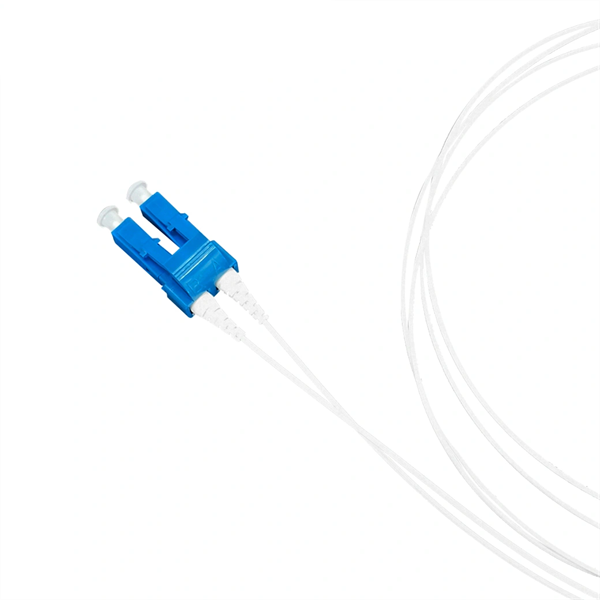

Product Picture:
Quick details
1~ 144 core available
0.9, 2.0, 3.0 fan-out available
Easy to use, easy to install and maintain
Environmentally stable
Fan-out available
Cable out jacket: PVC, LSZH, OFNR, OFNP… available
Specification:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Ordering Information
| Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| 0.9mm | Black | 9/125μm (SM) | Simplex | PC | Customized |
| 2.0mm | Green | 50/125μm (MM) | Duplex | APC |
|
| 3.0mm | Red | 62.5/125μm (MM) | Fan-out (4f) |
|
|
|
|
|
| Fan-out (6f) |
|
|
|
|
|
| Fan-out (8f) |
|
|
|
|
|
| Fan-out (12f) |
|
|
OFC Pigtail Features:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
OFC Pigtail Applications:
Premise installations
Optical access network
Data processing networks
FTTH, LAN, CATV, Test equipment
Shipping:
Our service:
Fiber optic pigtail Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.
Packaging: Individual package,carton box
Productivity: 10000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 10000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
