cable pulling fiberglass conduit duct rodder 100m price

cable pulling fiberglass conduit duct rodder 100m price

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: 5mm 100m

Brand: OEM

Duct Rod Diameter: 4.5~14 mm

Length: 50~300 M

Density: > 1.9gr/cm3

Working Environment: -40 to +80

Minimum Pulling Strength: 4000N +/-5%

Metal Frame: Steel with high-temperature sprayed plastic or hot

Flexural Modulus: > 46.500Mpa

Fiber Glass Rod Inner: Extruded by fiber glass and high strength resin at

Fiber Glass Content: 75-80%

Warranty Time: 12 months

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Individual Package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

5mm cable pulling fiberglass conduit duct rodder 100m price

Product Description for cable pulling rodder:

fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate.The FRP push pull rod will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.Please inquiry us for fiberglass duct rodder.

Product Name:duct rodder 300m price,fiberglass conduit rodder,fibreglass duct rodder,duct rodder 100m price

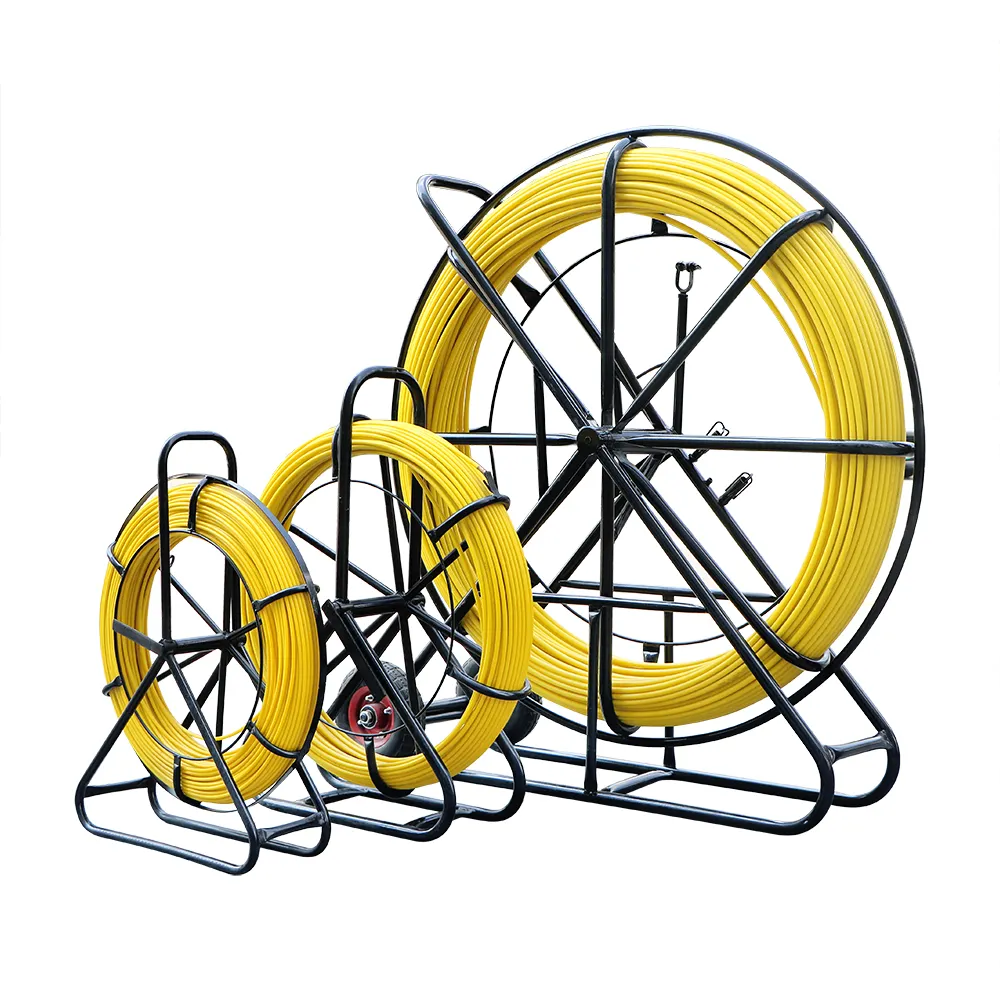

Product Picture for frp duct rodder:

Technical Parameter for cable duct rodder:

Specification	Rod Diameter (mm)	5mm
	Rod Length (m)	100m
	Frame Spec. (mm)	1300x450x1330
Material	Fiber glass rod inner	Extruded by fiber glass and high strength resin at high temperature
	Fiber glass rod outer	High Density polyethylene coating
	Metal Frame	Steel with high-temperature sprayed plastic or hot dip galvanized
Physical Property	Fiber glass content	75-80%
	Density	> 1.9gr/cm3
	Working environment	-40 to +80
	Minimum Pulling strength	4000N +/-5%
	Consistency of rod	137gr/m
	Flexural Modulus	> 46.500Mpa
	Elongation at break	2.5-3%
	Min Bending Radius	388mm
